FPM Agromehanika 627 119 Installation/Handling/Maintenance

Tractor mowers with two movable cutting bars
Hide thumbs

Advertisement

Quick Links

Download this manual

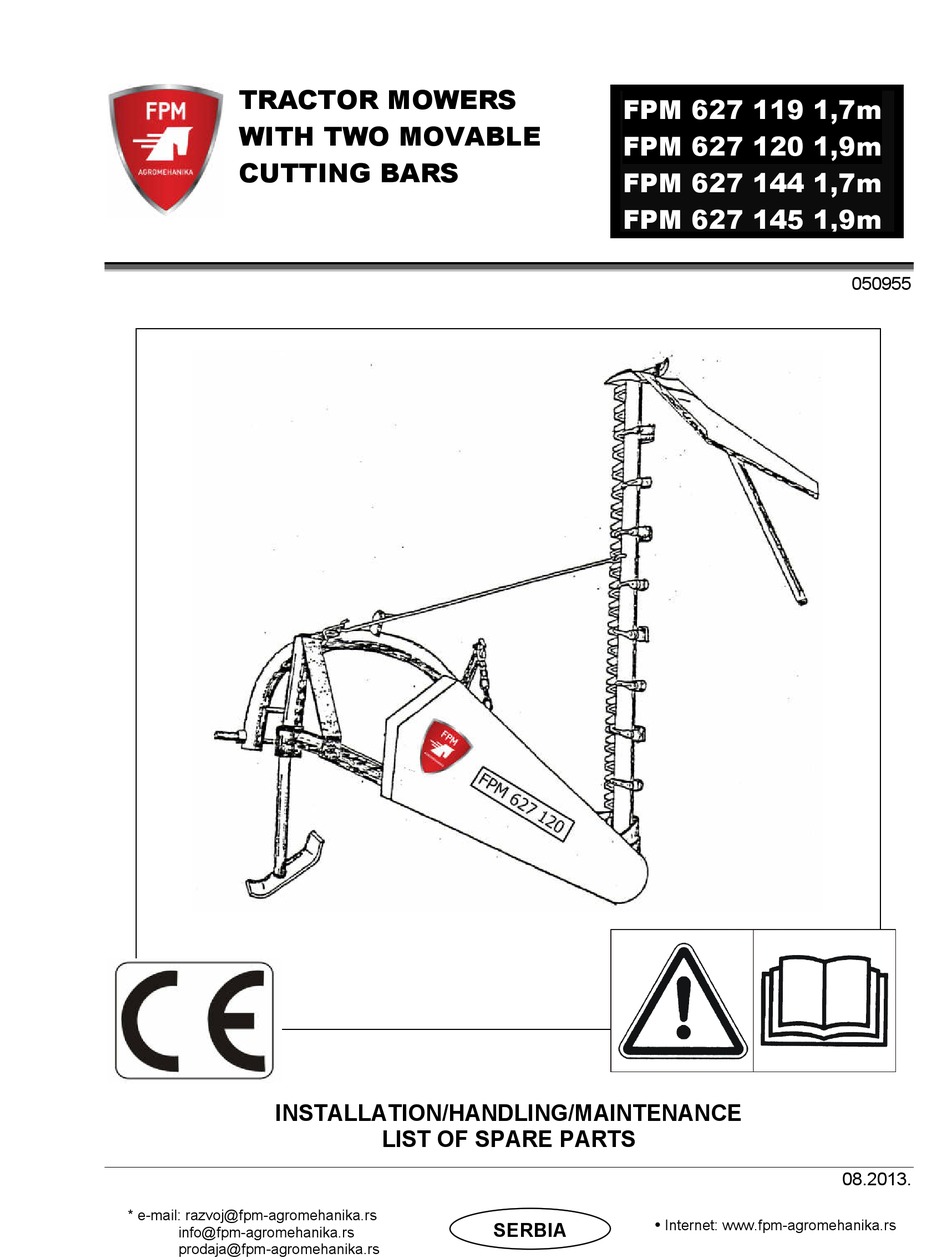

TRACTOR MOWERS
WITH TWO MOVABLE
CUTTING BARS
INSTALLATION/HANDLING/MAINTENANCE
* e-mail: razvoj@fpm-agromehanika.rs
info@fpm-agromehanika.rs
prodaja@fpm-agromehanika.rs
LIST OF SPARE PARTS
SERBIA
FPM 627 119 1,7m
FPM 627 120 1,9m
FPM 627 144 1,7m
FPM 627 145 1,9m
 Internet: www.fpm-agromehanika.rs
050955
08.2013.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 627 119 and is the answer not in the manual?

Questions and answers

Summary of Contents for FPM Agromehanika 627 119

  • Page 1 TRACTOR MOWERS FPM 627 119 1,7m WITH TWO MOVABLE FPM 627 120 1,9m CUTTING BARS FPM 627 144 1,7m FPM 627 145 1,9m 050955 INSTALLATION/HANDLING/MAINTENANCE LIST OF SPARE PARTS 08.2013. * e-mail: razvoj@fpm-agromehanika.rs  Internet: www.fpm-agromehanika.rs SERBIA info@fpm-agromehanika.rs prodaja@fpm-agromehanika.rs...
  • Page 2 TRAINING: FPM Agromehanika AD constantly strives to improve its products and therefore reserves the right to make changes or improvements when needed, without any obligation to modify or supplement previously manufactured or sold equipment.

  • Page 3: Read Carefully

    TABULAR OVERVIEW PAGE GROUP OF PARTS Safety warning Limited warranty 6 - 8 Safety 9 - 11 Warning labels Information to read the instructions correctly Introduction 13 - 14 Description of the mower 14 - 15 Aggregating the mower to a tractor 16 - 17 Adjusting the mower for work Working with the mower...

  • Page 4: Personal Safety

    Occupational Safety Standards for Work Tools (Official Gazette of SFRY No. 18/91), for each original piece of a new mower delivered to the user by the sales network FPM Agromehanika AD Boljevac, which guarantees at the time of delivery, that every part of the mower is new, free of material defects,...
  • Page 5 2. Parts not manufactured by FPM Agromehanika AD Boljevac (tires, plastics, belts, cardan shafts, cardan shields, hydraulic cylinders with connection hoses, etc.) are not covered by this warranty, but by the manufacturer's warranty 3. Parts that are normally consumed in exploitation, such as: wedge belts, discs, cutting blades, tires, scrapers, cutter blades, sliders underneath the cutting machine, protective guard.
  • Page 6 of mower, during work it may be too late. - When attaching or unloading the mower from the tractor, always move the footrest to appropriate position (security). - When youn unfasten or attach the mower to the tractor, be very careful. - Before loading check the load on the front wheels of the tractor.
  • Page 7 IMPORTANT: Do not work along the roads, pedestrian paths, public areas (parks, schools, etc.) and on stony grounds to avoid the risk of an accident, due to the rejection of parts on the building and person. - Never work when driving backwards. - After the end of the season with the mower, an authorized servicer needs to examine your mower, bring it to the proper condition, especially the cutting knives, and fix all parts (screws, nuts, etc.) by exact prescribed tightening.

  • Page 8: Warning Labels

    SAFETY USING THE CARDAN SHAFT - Only those cardanas that are delivered with a mower or prescribed by the mower manufacturers. - Coatings of the cardan must be positioned and in proper condition. - Pay attention to the prescribed overlapping of the pipes in the transport and working position. - You can connect and remove the cardan only when the output shaft is off the tractor, the engine turned off, and the ignition keys removed.
  • Page 9 - first digit - year of production - second and third digit - code of the manufacturer - the other six digits - serial number of the product from the start of production.
  • Page 10 FPM - 627 . 119 FPM - 627 . 120 6. Before releasing the machie to work, carefully read the instructions and pay attention to the warning. Caution: Before releasing the machie to work, carefully read the instructions and pay attention to the warning.
  • Page 11 4. Rotating elements: When approaching the scrubber while it works, make sure thatparts of clothes or body are not caught in the rotating parts. Tie the cardan protection with fixing chains. Caution: Rotating parts! When approaching the scrubber while it works, make sure thatparts of clothes or body are not caught in the rotating parts.
  • Page 12 WARNING: THIS SYMBOL IS USED TO DRAW ATTENTION TO YOUR SAFETY. BE CAREFUL! INTRODUCTION The rear tractor mower with two movable cutting bars belongs to a group of highly productive mowers. It is connected to tractors of category I and II (according to ISO 730 / I and II) which have a three-point attachment and a six-groove 34.9 mm diameter outlet and a 540 rpm speed.
  • Page 13 Figure 1 The supporting structure consists of a connecting shaft and a carrier of the cutting machine. The task of the attachment part of the supporting structure is to enable connection with the tractor and carrying the carrier of the cutting machine with the cutting machine. The system for transferring movement from the output shaft of the tractor to the moving bars consists of: a cardan shaft, a gearbox with wedge belts, a shaft with an eccentric plate and a lever system.
  • Page 14 Figure 2 Aggregating the mower to a tractor is done in the following manner: Move the tractor backwards, lower the lower tractor levers (figure 3, item 1) using the hydraulics at the height of the axis of the attachment shafts of the supporting frame and make the connection. Secure the connection with the fuses (item 2, figure 3) with the shaft (item 4, figure 3) to connect the upper tractor lever (item 3, fig.
  • Page 15 Figure 3 The chainholder with the chain (item 5, figure 3) should be placed on the shaft (item 7, figure 3) located on the frame and secured with a fuse (item 2, figure 3). Attach the chain to the chain holder and determine the length of the chain so that after releasing the hydraulics the mower takes the appropriate position.
  • Page 16 Figure 4 - Using a chain (figure 4, item 3) and tightening (fig. 4, item 2), adjust the hair so that the beak hair (Figure 5, item 5) touches the ground. We check the setting of the mower in such a way that, using hydraulics, we raise the mower in the upper position and remove the object that we placed under the canopy, then lower the mower into the bottom lower position by hydraulics.

  • Page 17: Maintenance Of The Mower

    - Check the belt tension through the slot located on the protective sheet and add subsequent tension if required (the permissible belt tension is 10 mm). BEFORE YOU START WORK, YOU NEED TO: - Remove the protector on the cutting machine, - Check the tightness of all bolts.

  • Page 18: Drive Mechanism

    - Setting up new rods is done in reverse order in relation to disassembly. When installing new cutting rods, fill the holes on the leading handles of the knives, top and bottom, with lubricant. Re-tighten and re-position the nuts in position 10. DRIVE MECHANISM The drive mechanism transmits movement through the shaft, the eccentric plate and the lever system to the cutting rods and achieves up to 1600 oscillations / min.
  • Page 19 Cutting knives on the workpiece must not collide with each other. The required clearance is achieved in the following way: - The cutting blades will be brought to the middle position of Figure 8, so that the upper guide bar occupies a 90 °...
  • Page 20 CAUTION: Turning the nut (item 1, fig. 9) for half a circle corresponds to a pressure force of about 4 daN. LEAD KNIFE HANDLES - LOWER The lower handles (figure 10, item 2) are mounted on the brackets in which they can be adjusted in terms of height (Figure 11).
  • Page 21 Figure 14 CUTTING KNIFE The cutting knife is made of high quality steel and thermally processed. After a certain period of time, the cutting edges of the knife become clogged. The twisted edges of the blade can be sharpened by grinding. Grinding the knives is of great importance for clean and unhindered mowing.
  • Page 22 Figure 17 Figure 18 - Well and properly ground knives, see Figure 19. - Upper cutting blades should match the lower cutting blades. If these stand two millimeters across the lower blades (Figure 20), the upper handles must be transposed as given in paragraph D. Figure 19 Figure 20 GUIDE...

  • Page 23: List Of Spare Parts

    - High pressure and blunt knives = bad mowing, heavy load on the drive parts, possibly breaking the knives. TECHNICAL CHARACTERISTICS OF THE TRACTOR MOWER WITH TWO MOVABLE CUTTING BARS FPM 627 119 FPM 627 120 rear rear Type and label Working grasp 1.70 m...
  • Page 24 Package of parts & components For vineyard tractors For tractors cat. 1 Replaced by one or multiple parts For tractors cat. 2 Number of teeth For tractors cat. 3 Pad thickness Length Pad thickness to reduce gap <─> FPM AGROMEHANIKA AD BOLJEVAC...
  • Page 25 BEARING FRAME IDENTIFICATION NUMBER FOR ORDERING 627 16 400 627 13 022 000 05 464 Ø6x40 611 20 010 627 10 108 627 13 019 627 13 050 627 12 842 627 12 838 627 13 075 000 05 340 627 13 258 627 10 251 627 16 404...
  • Page 26 POWER MECHANISM IDENTIFICATION NUMBER FOR ORDERING 000 00 062 000 00 072 627 10 781 627 12 389 627 12 390 627 12 382 000 05 496 M14x1,5 000 02 556 3,2x30 627 12 392 627 13 518 000 02 392 000 05 497 M12x55 000 05 495...
  • Page 27 POWER MECHANISM IDENTIFICATION NUMBER FOR ORDERING 000 05 578 627 12 385 000 04 233 627 13 808 000 05 493 M10x38 000 00 066 000 00 056 M12x35 627 13 506 804 90 743 000 04 802 5x22 000 04 765 5x25 000 04 030 4x20...
  • Page 28 POWER MECHANISM IDENTIFICATION NUMBER FOR IDENTIFICATION NUMBER ORDERING FOR ORDERING for FPM 627 120 - 1,90 m for FPM 627 119 - 1,70 m 627 12 085 627 12 085 000 00 061 000 00 061 000 13 064 000 13 064...
  • Page 29 PRESSURE HOLDER IDENTIFICATION NUMBER FOR ORDERING 627 13 044 000 05 491 000 02 977 M12x50 000 11 223 627 13 034 627 13 016 627 13 033 627 13 018 627 12 682 805 40 784 627 12 049 627 16 520 000 11 307 M16x150...

  • Page 30: Power Plug

    POWER PLUG IDENTIFICATION NUMBER FOR ORDERING 627 12 008 000 05 335 12x8x56 627 10 576 000 07 964 6207Z 627 10 536 000 02 392 000 00 073 4x30 627 10 615 000 04 233 000 00 088 000 00 060 000 11 224 000 04 088 6,3x45...
  • Page 31 627 10 776 627 12 749 627 16 497 000 05 538 6x20 IDENTIFICATION NUMBER FOR ORDERING for FPM 627 119 - 1,70 m. 627 10 775 627 16 492 627 12 086 627 12 698 000 05 614 6x13...
  • Page 32 BODYWORK IDENTIFICATION NUMBER FOR ORDERING 000 00 060 000 00 070 000 09 985 M8x20 627 16 222 000 02 919 M8x25 627 16 525 000 05 470 M6x12 000 00 069 627 12 681...
  • Page 33 SHOVING BOARD IDENTIFICATION NUMBER FOR ORDERING 627 12 928 627 10 121 000 05 515 M8X30 000 05 501 M8x50 627 10 119 000 00 065 000 02 493 000 00 060 627 10 708 000 00 066 850 12 033 000 00 062 000 02 556 3,2x30...
  • Page 34 BALANCE LATH IDENTIFICATION NUMBER FOR ORDERING 627 13 065 627 13 059 627 12 011 627 10 618 000 00 063 611 20 010 627 13 053 1  6...
  • Page 35 PROTECTION REGULATIONS, AS WELL AS THE RULES ON ROAD TRAFFIC. IN THE OBJECTIVE OF YOUR OWN SECURITY USE THE ORIGINAL PRODUCTS PRODUCED BY FPM AGROMEHANIKA AD BOLJEVAC. THE MANUFACTURER IS NOT RESPONSIBLE FOR THE CONSEQUENCES OF INCIDENTAL USE OR NON-COMPLIANCE WITH RECOMMENDATIONS IN THIS...
  • Page 36 FOR YOUR OWN SAFETY AND TO OBTAIN THE BEST FROM YOUR MOWER, USE ONLY ORIGINAL PARTS PRODUCED BY FPM AGROMEHANIKA AD BOLJEVAC FPM AGROMEHANIKA AD 19370 Boljevac, 25 Đorđa Simeonovića St. Tel: +381 30/463-531 /463-455 Fax.: +381 30/63-405 Sales centre - Boljevac: Tel:...

This manual is also suitable for:

627 120627 144627 145
