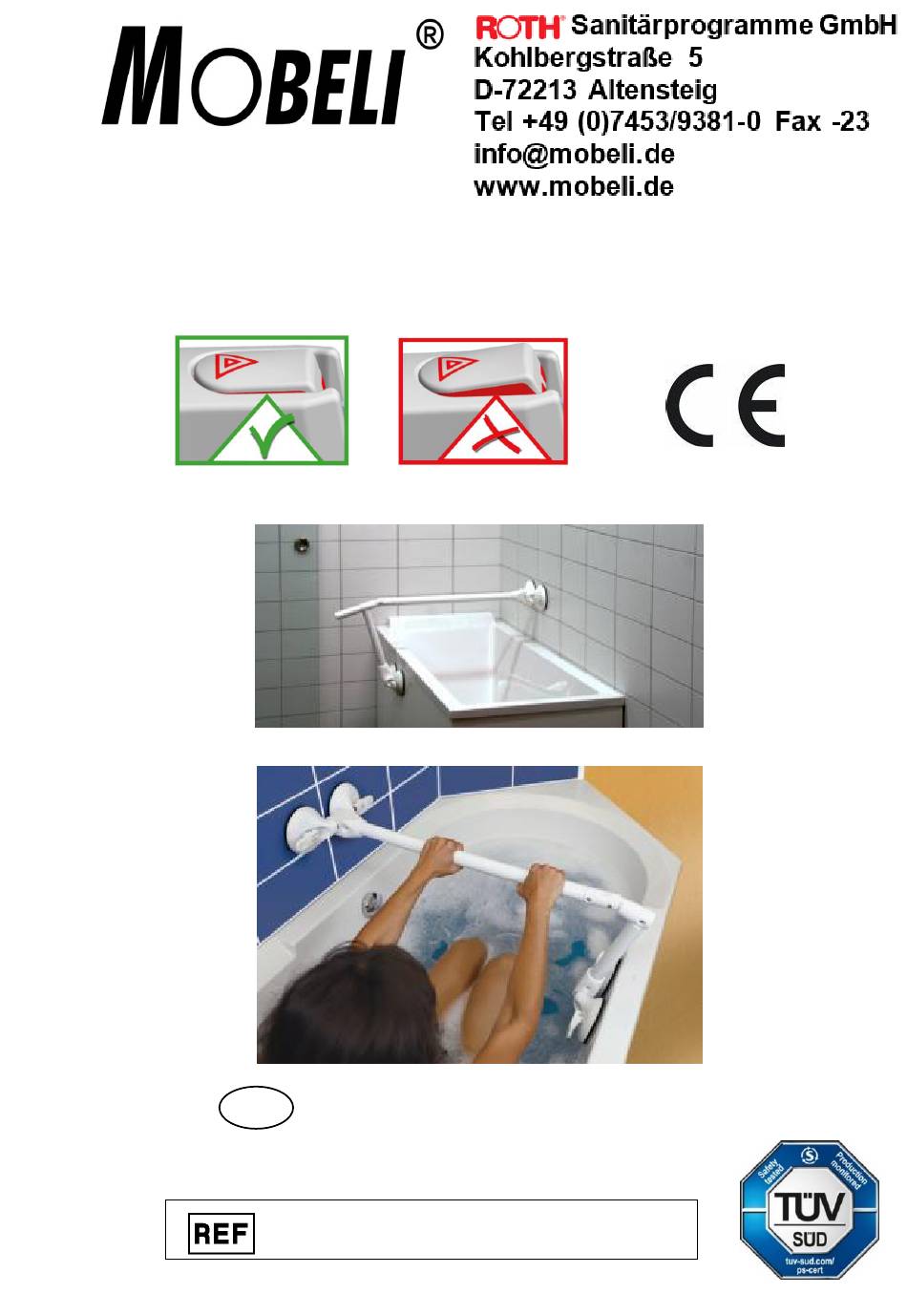

- Page 1 QuattroPower Bath Tub Grab Handles with Vacuum Safety Indicator Instruction Manual QuattroPower Tub 1400261S, 1400262S, 1400263S, 1400264S...
-
Page 2: Table Of Contents
Table of contents General ..................................... 2 1.1 General information ..............................2 1.2 Explanations/symbols in the manual and on the handle ..................... 3 1.3 Intended use ................................3 1.4 Application range of the product ..........................3 1.5 For your information ..............................3 1.6 Useful life .................................. -
Page 3: Explanations/Symbols In The Manual And On The Handle
(additionally, year of manufacture on the handlebar) Order number Maximum user weight The mobile MOBELI grab handles comply with the directive 93/42/EEC on medical devices of class I. Batch designation Allergy Notice: The high-quality rubber discs contain natural rubber latex. -
Page 4: Useful Life
If the mobile bath tub grab handle remains attached over prolonged periods of time, there is the risk that the underground (e.g. bath tub) gets permanently stained by the rubber pad. • Never combine MOBELI products with parts from other manufacturers. This will invalidate any warranty or Risk of accident!!! liability. -
Page 5: Attaching / Suction
3.2 Attaching / suction: (see pages 10 and 11) 1. Examine the vacuum suction pads and the surface they are to be attached to. 2. Clean the surface thoroughly (fig. 11) so that it is clean (e.g. from etched lime sludge) and grease-free. Likewise, the surface of the suction disc must be clean. -
Page 6: Technical Data
4.1 Markings on the product: (For explanations of the symbols, see page 2) Below on the short grab bar Above on the long grab bar Thanks to the Mobeli modular system, the additional handle extension of 120 mm can also be retrofitted. -
Page 7: Maintenance (Service)
5.2 Maintenance (service): • If the handle has been attached to the wall for a prolonged period of time, the rubber discs will overstretch. We therefore recommend that you remove the handle from the wall approx. every 14 days and leave it overnight on a flat surface with the rubber disks relaxed, then reattach it the next morning. -
Page 8: Pictures For Operation
8. Pictures for operation 8.1 Pictures for operation mounting / disassembly _______________________________________________________________________________________ _______________________________________________________________________________________ Video – Disassembling QuattroPower 140026 1-4_ D14.748.19.03_2019-07-20 QuattroPower Tub Eng Page 8 of 12... -
Page 9: Pictures For Operation - Mounting/Assembly
8.1 Pictures for operation mounting / disassembly 140026 1-4_ D14.748.19.03_2019-07-20 QuattroPower Tub Eng Page 9 of 12... -
Page 10: Pictures For Operation - Mounting/Disassembly
8.2 Pictures for operation assembly min. 10 mm! 140026 1-4_ D14.748.19.03_2019-07-20 QuattroPower Tub Eng Page 10 of 12... -
Page 11: Images Of The Function Of The Vacuum Safety Indicator
8.3 Images of the function of the vacuum safety indicator Vacuum safety indicator on the rocker arm: Correct! Adhesive strength too low! Suction head must be reattached immediately. Risk of accidents! Mode of operation of the safety rocker: The vacuum is permanently monitored! Explanation of the symbols on the grab handles: Attention! The handle must be Full security for the... -
Page 12: Accessories
Video – Quattro in bath tub Should you require further information and videos about the products, please contact You can also find them on our website: www.mobeli.de The instructions for use are available in the download area: www.mobeli.de/download-bereich A brand of: 140026 1-4_ D14.748.19.03_2019-07-20 QuattroPower Tub Eng...
