patioSchwank
electricSchwank Series

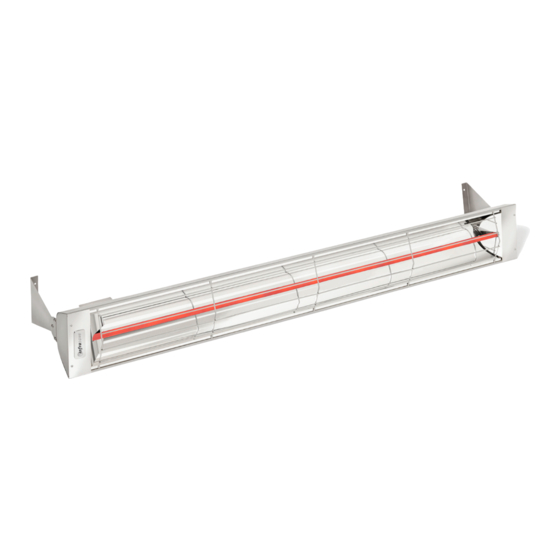

QUARTZ ELECTRIC INFRARED RADIANT HEATER
For Indoor/Outdoor Use: Patios, Spectator Venues, Commercial/Industrial Spaces
Warnings - IMPORTANT - Read First
Installation Instructions
Specifications
Wiring Instructions
Mounting Instructions
Replacement Element Installation
Replacement Parts
Heater Coverage Areas
General Notes
Maintenance Instructions
Troubleshooting
Location Suggestions
Warranty
For warranty purposes and ordering replacement parts, record the following information:
Model #: _________________________________________
Date of Purchase: _________________________________
INSTALLATION MANUAL
SAVE THIS MANUAL FOR FUTURE REFERENCE
EL/ELD Series
Serial #: ____________________________________________
Purchased From: _____________________________________
Page
Electric I&O Manual
IM111116 RL:2A AUG 2018
2
3
3
3
4
5
5
6
6
6
7
7
8
Advertisement
Table of Contents
Summary of Contents for patioSchwank electricSchwank Series
- Page 1 EL/ELD Series electricSchwank Series QUARTZ ELECTRIC INFRARED RADIANT HEATER For Indoor/Outdoor Use: Patios, Spectator Venues, Commercial/Industrial Spaces INSTALLATION MANUAL Page Warnings - IMPORTANT - Read First Installation Instructions Specifications Wiring Instructions Mounting Instructions Replacement Element Installation Replacement Parts Heater Coverage Areas...
- Page 2 WARNINGS READ ALL INSTRUCTIONS BEFORE USING HEATER Unit may be a source of possible shock. NEVER attempt to service heater without disconnecting its power source. Source of possible ignition - maintain clearances from combustible materials. WARNING: If not installed, operated and maintained in accordance with the manufacturer’s instructions, this product can expose you to chemicals including nickel, which are known to the State of California to cause cancer.
-
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS This heater must be permanently installed and hard wired by a licensed electrician in accordance with local electrical codes. Assembly procedure must be performed with no electrical power to unit. Step 1: Check UL/CUL/CE rating label on heater for proper voltage. Step 2: Follow supplied wiring instructions. - Page 4 MOUNTING INSTRUCTIONS MOUNTING INSTRUCTIONS These models may be chain or bracket mounted to any ceiling or horizontal surface. Installation must be such that These models may be chain or bracket mounted to any ceiling or horizontal surface. Installation must be such 18"...
-
Page 5: Replacement Element Installation
REPLACEMENT ELEMENT INSTALLATION Disconnect the power at the breaker. Remove the grill by grasping it in the middle, flex grill up and lift it off. Unscrew and remove both end reflectors. Unhook element clips at each end of the heater and remove nuts from end of element to remove the existing Quartz. -
Page 6: General Notes
SINGLE ELEMENT TYPICAL AREA COVERAGE - feet [m] PART NUMBER WATTS MOUNTING HEIGHT AVERAGE COLD PROTECTED ES/EL-1533-20 1,500 6' - 8' [1.8 m - 2.4 m] 5' x 5' [1.5 m x 1.5 m] 3' x 3' [.91 m x .91 m] 7' x 7' [2.1 m x 2.1 m] ES/EL-2039-24 2,000 7' - 9' [2.1 m - 2.7 m]... -
Page 7: Troubleshooting
TROUBLESHOOTING PROBLEM WHAT TO DO Heater does not glow ▪ Check supply voltage to confirm it matches voltage of heating element. ▪ A 240V element connected to 110V or 208V will warm, but not glow orange Low heat output or generate sufficient heat for typical applications [Matching your voltage is extremely important]. -
Page 8: Limited Product Warranty
This warranty gives you specific legal rights. You may also have other rights which vary by jurisdiction. USA: 2 Schwank Way, Waynesboro, GA 30830 patioSchwank CANADA: 5285 Bradco Blvd., Mississauga, ON L4W 2A6 www.patioSchwank.com www.Infrasave.com...
