- Page 1 DP1500 WiFi Wetterserver USB Dongle froggit DP-Serie Manual EN Support/Manual/Spare parts/compatible products: www.froggit.de...
- Page 2 1 user manual (German) - other languages can be downloaded from froggit.de 2. Overview 3. Features - Transmits data from froggit DP sensors (e.g.: DP100, DP200, DP50) to your local WLAN network or internet-based weather services. - Enables monitoring of environmental or atmospheric data with the free WS View Mobile application by connecting to optional sensors (sold separately): multi-channel temperature and humidity sensors, rain, wind, soil humidity, PM2.5 and more.

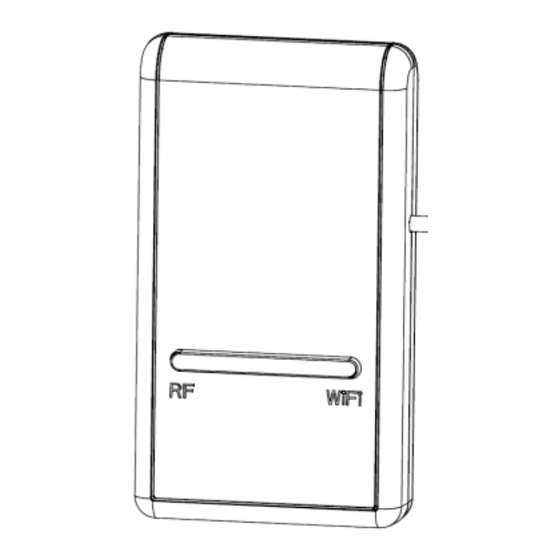

- Page 3 4. Installation Number Function / Description 1 Configuration / Reset button 2 RF (radio link) Status indicator display 3 WiFi (Wlan) Status Indicator Display 4 USB port (power supply) 5 3-1 Thermo-hygrometer, air pressure sen Before you configure the DP1500 with your mobile phone, please read the introduction of the LED lights and the key function for a better understanding.
- Page 4 6. Key function The black button is used for the following two modes: Wi-Fi configuration mode: Press and hold the button for 5 seconds until the Wi-Fi status LED flashes rapidly and the DP1500 is ready for Wi-Fi configuration. Reset Mode: Press and hold the button for 10 seconds to reset the DP1500 and clear the history data.
- Page 5 Weather wow.metoffice.gov.uk The UK Met Office Weather Observation Observation Website (WO Website (WOW). WOW allows anyone to submit their own weather data, anywhere in the world. Customized Supports uploading to your Website customized website, if the website has the same protocol with Wunderground or Ecowitt 8.
- Page 6 10. registration of your Personal Weather Station (PWS) at wunderground.com If you plan to use wunderground.com, you must have an account and register a (new) personal weather station. You can do this on the wunderground.com website, or you can do it from the mobile app. Make a note of the PWS ID and the password that will be generated for you.
- Page 7 If the DP1500 has been successfully added to your router, the WS View APP Device List page will list the newly added device. Tap the device that displays the received live data. Wir empfehlen dringend, die Einrichtung des Wetterservers abzuschließen, nachdem Sie sich sicher sind, dass die empfangenen Daten alle korrekt mit den vorhandenen Sensoren übereinstimmen.
- Page 8 12. WU (Wunderground) Dashboard 12. WU (Wunderground) Dashboard If you have set up the DP1500 to transfer data to WU, you can use the WS View app If you have set up the DP1500 to transfer data to WU, you can use the WS View app If you have set up the DP1500 to transfer data to WU, you can use the WS View app to display the current day weather to display the current day weather data:...
- Page 9 13. WU Dashboard and Live Data Difference 13. WU Dashboard and Live Data Difference You will be surprised at the data displayed. Here is a short explanation showing the at the data displayed. Here is a short explanation showing the at the data displayed.
- Page 10 Rainstart value Sensor offset or gain set 15. registration / use wunderground.com You can register a WU ID in the WS View app:...
- Page 11 Fill in the form and select "Register". You will then receive your WU Station ID and and select "Register". You will then receive your WU Station ID and and select "Register". You will then receive your WU Station ID and Sation password.
- Page 12 There are also some very useful mobile apps. The URLs provided here go to the Web version of the application pages. You can also find them directly from the iOS or Google Play stores: WunderStation: iPad application for viewing your station’s data and graphs https://itunes.apple.com/us/app/wunderstation-weather-from-your- neighborhood/id906099986 ...
- Page 13 https://itunes.apple.com/us/app/wu https://itunes.apple.com/us/app/wu-storm/id955957721 Weather Underground: Forecast Weather Underground: Forecast: iOS and Android application for forecasts : iOS and Android application for forecasts https://itunes.apple.com/us/app/weather https://itunes.apple.com/us/app/weather-underground-forecast/id486154808 forecast/id486154808 https://play.google.com/store/apps/details?id=com.wund https://play.google.com/store/apps/details?id=com.wunderground.android.weather erground.android.weather &hl=en PWS Weather Station Monitor PWS Weather Station Monitor: View weather conditions in your neighborhood, or : View weather conditions in your neighborhood, or even right in your own backyard.
- Page 14 17. Specifications Power supply: USB 5V Dimensions: approx. 12 x 35 x 62 mm Frequency: 868Mhz Transmitting power: 15.06dBm Temperature Measuring range: -10°C - 60°C (14°F - 140°F) Temperature Resolution: 0.1°C, 0.1°F Temperature Accuracy: +/- 1°C ...
- Page 15 General safety instructions Danger of asphyxiation: Keep all packaging materials (plastic bags, rubber bands, etc.) away from children. There is a danger of suffocation! Danger of burns: Caution! Leaking / leaking battery acid can lead to burns! Avoid contact of battery acid with eyes, mucous membranes and skin.
- Page 16 This manual may contain errors and misprints. However, the information in this manual is regularly reviewed and corrections made in the next issue. We accept no liability for technical errors or printing errors, and their consequences. All trademarks and copyrights are acknowledged. www.froggit.de...
- Page 17 Hereby we declare, HS-Group GmbH & Co.KG, Escherstr. 31, 50733 D-Cologne, that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity for this product can be found at: www.froggit.de or on request.
