Manufactured by Selkirk Canada Corp. - Hamilton, Ontario
Lower Bucket
Base Cap
Assembly
Ceiling Support Assembly
These installation requirements are based on complete tests of the Model CF Chimney
in accorance with the Standard for 650 deg. C Factory-Built Chimneys
CAN/ULC-S629-M87.
Selkirk chimney parts are produced under the Listing Program of Underwriers
Laboratories of Canada. Each ULC Listed part carries the label specified in their
"List of Equipment and Materials".
880063LT-rev.0711

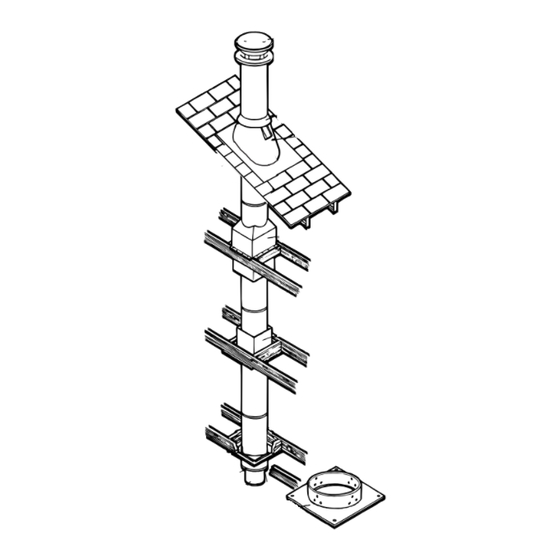

Installation Instructions for
MODEL CF
CEILING SUPPORTED
CHIMNEY
Round Top
Storm Collar
Flashing
Attic Insulation
Shield/Firestop
Spacer
Intermediate Joist
Shield
Any Chimney
Length
Advertisement
Summary of Contents for Selkirk CF

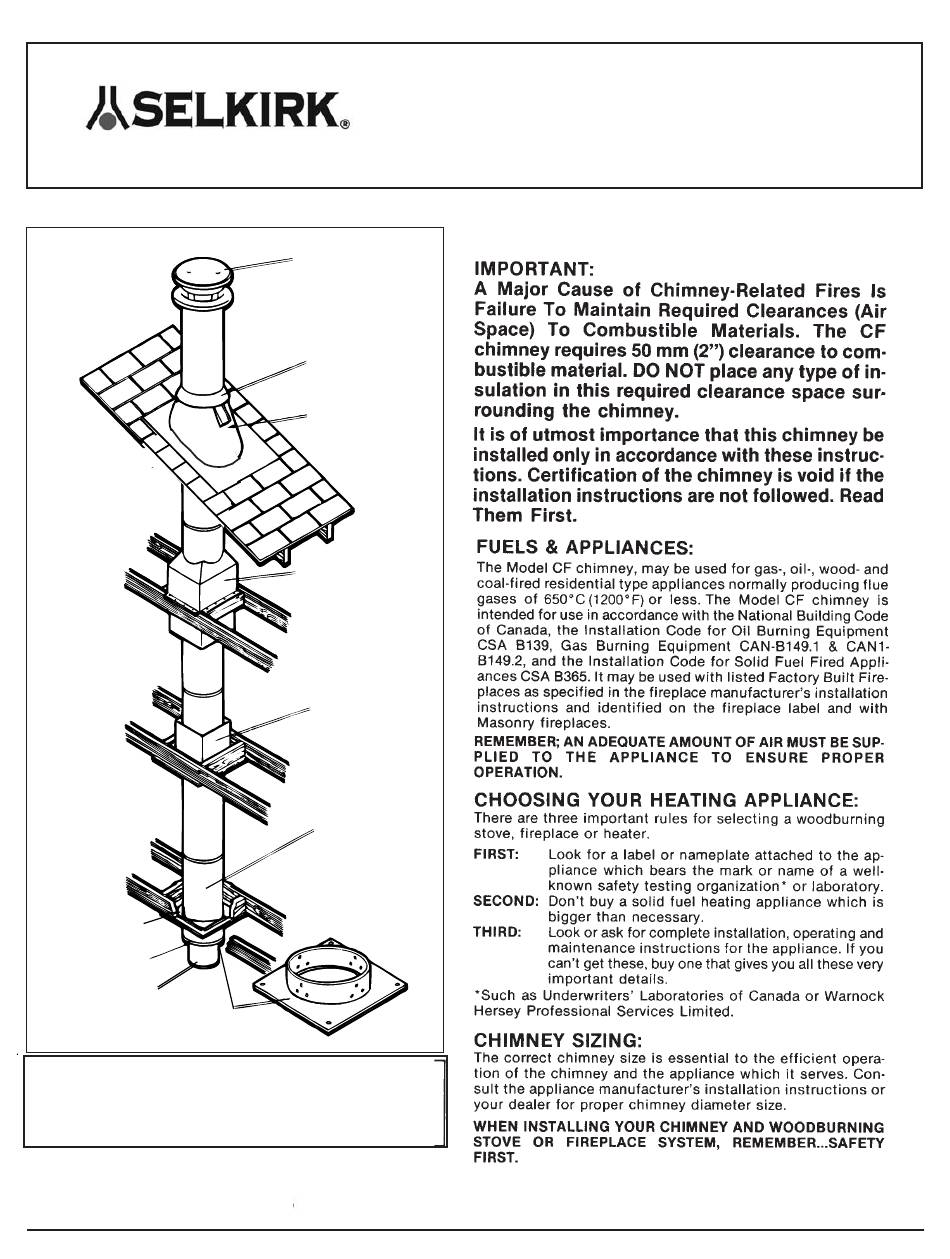

- Page 1 Base Cap Assembly Ceiling Support Assembly These installation requirements are based on complete tests of the Model CF Chimney in accorance with the Standard for 650 deg. C Factory-Built Chimneys CAN/ULC-S629-M87. Selkirk chimney parts are produced under the Listing Program of Underwriers Laboratories of Canada.
-
Page 2: General Installation Rules
GENERAL INSTALLATION RULES: 1. Situate the chimney in the structure so that it can be installed without cutting joists, sills, plates or load bearing partitions or members. 2. Each wood or coal appliance should have its own chimney. DON’T INTERCONNECT. 3. - Page 3 CHIMNEY FIRES AND WHAT TO DO ABOUT THEM Your Selkirk Model CF Chimney is not intended or designed for use as a combustion or fire chamber. It is very easy to overfire your woodburning appliance with kindling, scrap lumber, brush or any fast burning fuel.
- Page 4 Lower Bucket. (Figure 6 & 7) NOTE: Any length of CF Chimney can be used. There is no special “starter” length required with this Ceiling Support. 7. Additional chimney lengths may now be installed above this...
- Page 5 3 sheet metal screws per joint. every joint Of Ceiling-Supported Chimney IMPORTANT: CF chimney ceiling supports have been temperature tested using a vertical single wall connector. Ceiling 2” min. surface temperatures within and around the support were within [50mm] limits allowable in accordance with ULC Standard S629.
- Page 6 8. The chimney may be painted with a heat resistant paint. To improve adhesion to the Model CF chimney, degrease, dry and follow the paint manufacture's application instructions. Refer to their Paint Warranty (if applicable).
