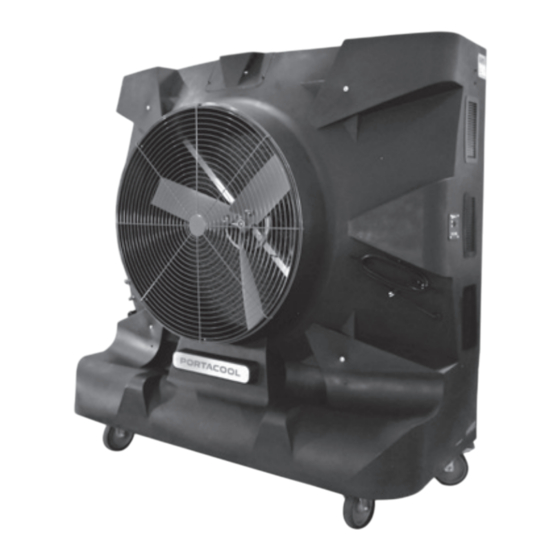

Portacool HURRICANE Series Owner's Manual
  1. Manuals
  2. Brands
  3. Portacool Manuals
  4. Air Cleaner
  5. HURRICANE Series
  6. Owner's manual

Portacool HURRICANE Series Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

PORTACOOL
HURRICANE
OWNER ' S
MANUAL
PACHR370, PACHR360

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HURRICANE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Portacool HURRICANE Series

Summary of Contents for Portacool HURRICANE Series

  • Page 1 PORTACOOL HURRICANE OWNER ’ S MANUAL PACHR370, PACHR360...

  • Page 2: Quick Setup

    Position cooler on level surface Plug into appropriate outlet Fill tank or attach water hose* *Maximum water pressure 50 psi/345 kPa Your Portacool portable evaporative cooler is meant to For setup, Kuul evaporative media should appear wet ® be used in an open-air environment, such as a patio.

  • Page 3: Operation Warnings

    FAQ sections of this owner’s manual, call • Operation near open flames or sparks is not recommended. Portacool, LLC Customer Service at (936) 598-5651 or • If operating near open flame or sparks, ensure the pump (800) 695-2942, or email support@portacool.com.
  • Page 4 OVERVIEW HURRICANE 370 Serial plate Digital control panel Water adjustment valve Cord wrap Water pump out Cat5 Air Booster™ Hose connection Manual fill Kuul Comfort ® evaporative media Heavy duty locking casters Two inch drain...
  • Page 5 OVERVIEW HURRICANE 360 Serial plate Digital control panel Water adjustment valve Cord wrap Water pump out Cat5 Air Booster™ Hose connection Kuul Comfort ® Manual fill evaporative media Heavy duty locking casters Two inch drain...
  • Page 6 “reset” button located on the ELCI device must be pressed each time the evaporative cooler is plugged in. If the ELCI is tripped and a simple “reset” will not work, please contact the Portacool Customer Service at (936) 598-5651 or...

  • Page 7: Starting The Pump And Adjusting The Water Flow

    When turning the evaporative cooler off at the end of the day or week, the pump should be turned off about 15 minutes before the fan to allow the Kuul evaporative media to dry. STARTING THE PORTACOOL EVAPORATIVE COOLER Start the fan by turning the fan switch to the desired speed on the control panel. Before starting, make sure casters are in locked position.

  • Page 8: Digital Controls

    DIGITAL CONTROLS The user interface includes touch sensitive buttons for operation of the Portacool Hurricane™ 370. The user interface also includes status indicator LEDs and a 7-segment display to show the status of the evaporative cooler. Power The green Power LED is illuminated when the evaporative cooler is plugged in.

  • Page 9: Daily Maintenance

    WEEKLY MAINTENANCE Your Portacool portable evaporative cooler should be shut down, disconnected from power and the tank should be drained once a week by removing the drain cap. Once the tank is drained and the power disconnected, the Kuul evaporative media may be removed to allow cleaning of the tank, where dust may collect over time.

  • Page 10: Troubleshoot

    TROUBLESHOOT Turn off all power to the evaporative cooler before attempting to troubleshoot any of the following symptoms. For problems not listed, please contact Customer Service. REMEDY POSSIBLE CAUSES SYMPTOM 1. Check power Evaporative cooler fails to 1. No electricity to the evaporative cooler A.
  • Page 11 TROUBLESHOOT REMEDY POSSIBLE CAUSES SYMPTOM 1. Drain, flush and clean tank 1. Stale or stagnant water in tank Musty or unpleasant odor 2. Replace Kuul evaporative media 2. Kuul evaporative media is mildewed or clogged 1. Make sure Kuul evaporative media 1.

  • Page 12: Warranty

    The Lifetime Warranty on product housings is void if the housing is found upon examination by Portacool to have been misused, abused or otherwise tampered with by unqualified personnel.
  • Page 13 PORTACOOL PROTECT Portacool, LLC is proud to provide world-class service and support. Portacool Protect™ brings together our commitment to service and support in the form of best-in-class warranties, service programs, technical support and live customer service to provide our customers with an ownership experience that is second to none.
  • Page 14 Q. How often should my Kuul Comfort evaporative media be replaced? A. None. Portacool Hurricane evaporative coolers are ready to use right out of the box. A. Depending on the quality of maintenance and frequency of use, Kuul Comfort evaporative media typically last up to five years. However, Q.
  • Page 15 EVAPORATIVE MEDIA Step 1 Be sure to unplug your Portacool portable evaporative cooler before doing any maintenance. Lock the casters to keep your evaporative cooler from moving while you are working. Remove the flap and Kuul Comfort evaporative media from the evaporative cooler.
  • Page 16 PARFANH360F0 FAN ASSEMBLY PARCTLH37000 PARCTLH36000 PARVFDH37000 PARCVRH37000 COVER HARD WATER PARPACHWTB00 PARPACHWTB00 TREATMENT Additional parts can be found at www.portacoolparts.com For products sold outside North America, contact Customer Service at 800-695-2942 or email support@portacool.com for item numbers and product availability.
  • Page 17 NOTES...
  • Page 18 NOTES...
  • Page 19 NOTES...

  • Page 20: Customer Service Contact

    Le manuel est disponible en d’autres langues. Pour télécharger une copie numérique, se il vous plaît visitez www.portacool.com. VISIT PORTACOOL.COM OR CALL 1-936-598-5651 FOR MORE INFORMATION Portacool, LLC • Manufacturer of Portacool™ portable evaporative coolers and Kuul evaporative media MANR0016 ®...

This manual is also suitable for:

Hurricane 370Hurricane 360Pachr370Pachr360
