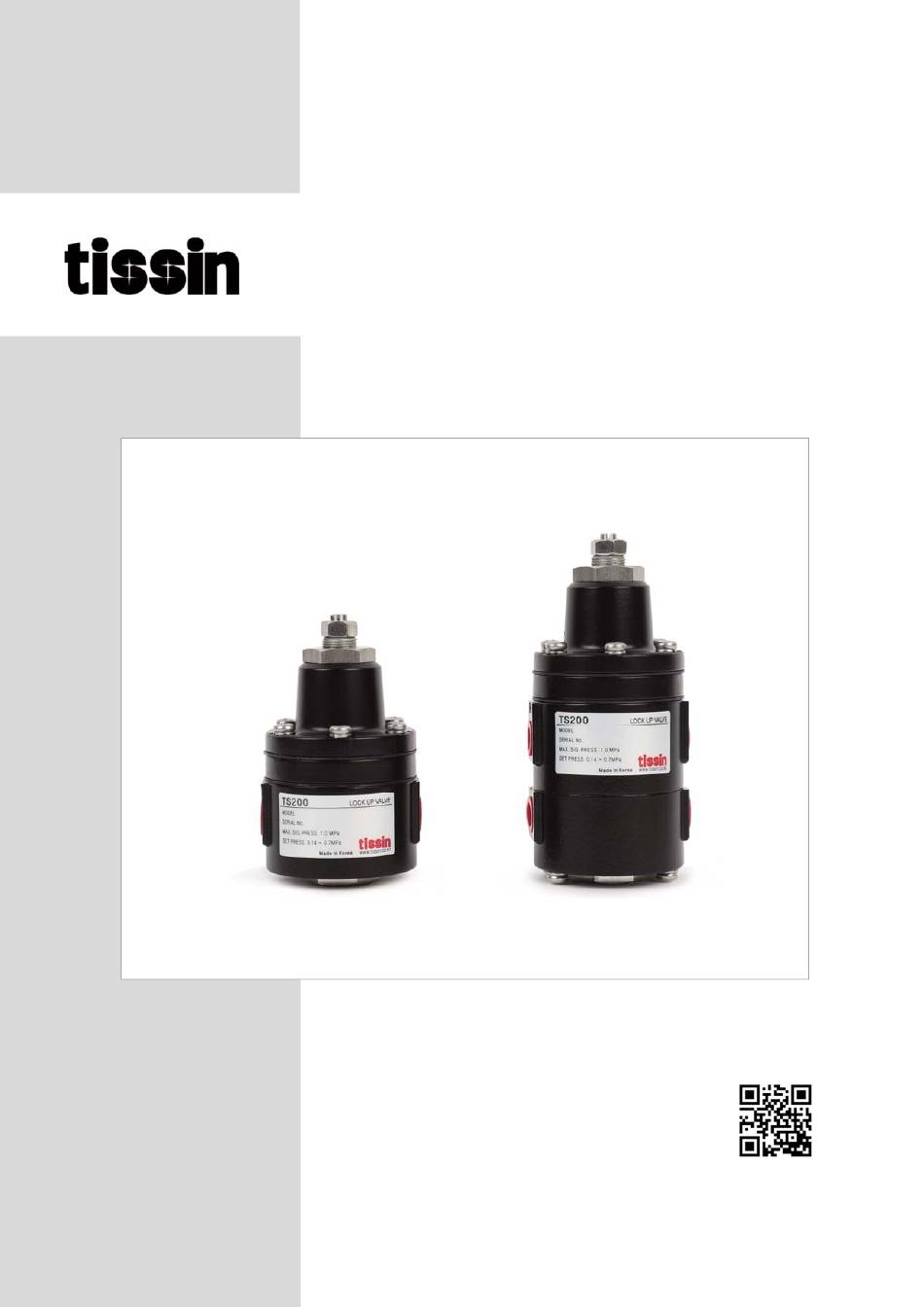

- Page 1 Lock Up Valve TS200 Series Instruction Manual Ver. PM-TS200EN_9/2017...
-
Page 2: Warranty
Lock Up Valve TS200 Series Description Precautions The pneumatic lock up valve TS200 Series shuts off the signal pressure line either when General Information the air supply falls below an adjusted value or Please ensure to read and understand the upon complete air supply failure. -
Page 3: Specifications
Lock Up Valve TS200 Series Specifications Principle of Operation Item.Type TS100 Signal Pressure 0.14~0.7MPa Max Supply Pressure 1MPa Max Lock Up 0.7MPa Pressure Differential Pressure Below 0.01MPa Flow Capacity(CV) Signal Connection PT(NPT)1/4 Supply/Output PT(NPT)1/4 Connection -20℃~70℃ Operating Temp. (Standard type) -
Page 4: Product Number
Lock Up Valve TS200 Series Product Number Pneumatic Connection ① Connect the Positioner’s Output Port with Model TS200 the Lock Up Valve’s In Port. Acting Type Single ② Connect the Lock Up Valve’s Output port Double with the Actuator. -
Page 5: Installation Example
Lock Up Valve TS200 Series Installation Example <Single acting linear type actuator> <Double acting rotary type actuator> Dimensions (Unit:mm) TS200S TS200D www.tissin.co.kr... - Page 6 Solutions for Control Valve System Tissin Co.,Ltd. 201-1105,No 397,Seokcheon-ro,Ojeong-gu, Bucheon-Si, Gyeonggi-do, Korea Tel : +82-32-624-4573, Fax : +82-32-624-4574 www.tissin.co.kr...
