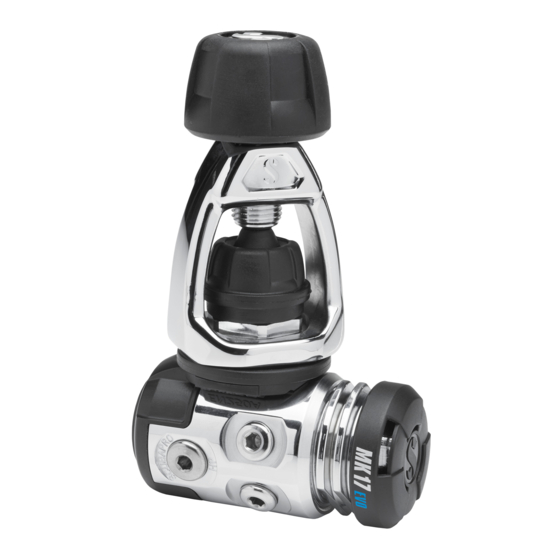

Summary of Contents for SCUBAPRO-UWATEC MK17
- Page 1 MAINTENANCE PROCEDURE FOR MK17 MK17 revision may 2005 1 / 1...
- Page 2 Remove the yoke and saddle. Remove the fil- ter retainer with the screwdriver, the filter and the o ring with the o ring remover. Put aside the o ring (01.050.138) for inspection. MK17 revision may 2005 2 / 2...
- Page 3 (diaphragm side) with the blowgun to carefully remove the orifice. With the o ring extractor tool, remove the o ring from the orifice. 13. Remove the field handle tool. PARTS CLEANING WARNING: refer to parts cleaning procedure. MK17 revision may 2005 3 / 3...
- Page 4 Slightly grease the 2 o-rings and thread of the balance chamber and place the 2 o rings on the balance chamber. Slide the spacer and guide on the HP-poppet. Slightly grease the shaft of the HP- poppet before inserting the spring. MK17 revision may 2005 4 / 4...
- Page 5 18. Reassemble all the plugs and / or the hoses after having slightly greased the threads. Do not over torque (4 to 5 Newton meter maximum ) 19. Place back the 2 bumper caps. MK17 revision may 2005 5 / 5...
- Page 6 Attention! : Place the 2 stage and the octopus to the HI FLOW ports on the body. MK17 revision may 2005 6 / 6...
- Page 7 Note: As we previously carried out the leak test between the HP orifice and seat, a bad interstage pressure lock does not come from these parts. A distort- ed diaphragm is often responsible for a poor interstage pressure lock!!! MK17 revision may 2005 7 / 7...
- Page 8 11. Close the tank valve and remove the 1 stage from the tank. 12. Place back the rubber bumpers and the inlet protector. MK17 revision may 2005 8 / 8...
