Summary of Contents for Ness Trans Pac 104-286 Series

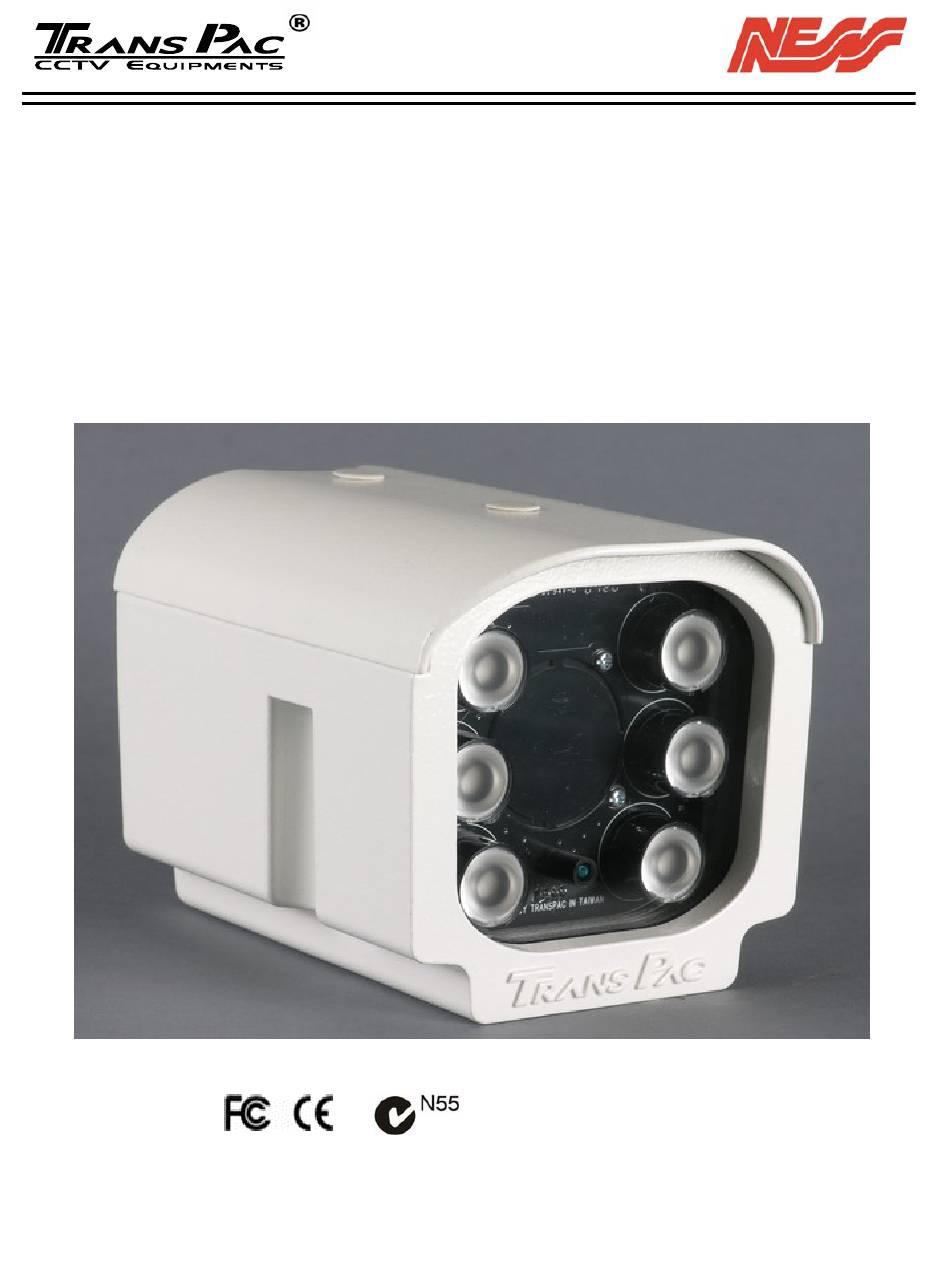

- Page 1 INSTRUCTION MANUAL 104-286 Series Infrared LED Illuminator IP66 RoHS www.ness.com.au...
- Page 2 SAFETY WARNING SPECIFICATIONS CAUTION: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. UNPACKING: Unpack carefully. Electronic components can be damaged if improperly handled or dropped. If an item appears to have been damaged in shipment, replace it correctly in its carton and notify the distributor.
- Page 3 PART DESCRIPTION MADE BY TRANSPAC IN TAIWAN MADE BY TRANSPAC IN TAIWAN P2TPIR0008B P2TPIR0008B AC IN AC IN Fuse Fuse 250V/3.15A 250V/3.15A Temper Glass IR LED : 6pcs super high power IR LED with refractor. . IR Board and IR Board Bracket IR Board and IR Board Bracket IR Control Board IR Control Board...
- Page 4 WIRING INSTRUCTION: 1. Underneath Mounting Screw Washer 2. Side Mounting Left Side Right Side Cable Conduit To external power input * Ness Security Product Branches: sales@ness.com.au www.ness.com.au nessbris@ness.com.au adelaide@ness.com.au Brisbane Adelaide Sydney (Head Office) Unit 3A / 471 Lytton Road...
