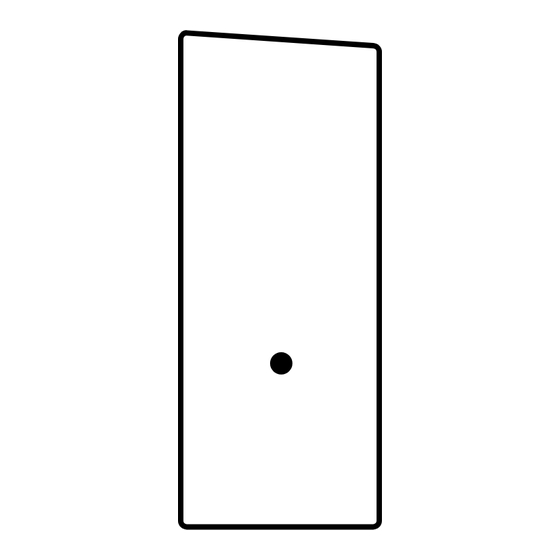

Mini radio reed switch
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
InstallatIon Manual
RR1
MInI RadIo Reed swItch
100-662
Part No.
• On-board reed switch.
• Lithium battery operation.
• Fully supervised, encrypted signals.
• Compatible with all Ness radio receivers.
• Ultra low standby current draw.
Installation and setup notes. Revision Apr2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the RR1 and is the answer not in the manual?

Questions and answers

Related Manuals for Ness RR1

Summary of Contents for Ness RR1

  • Page 1 InstallatIon Manual MInI RadIo Reed swItch 100-662 Part No. • On-board reed switch. • Lithium battery operation. • Fully supervised, encrypted signals. • Compatible with all Ness radio receivers. • Ultra low standby current draw. Installation and setup notes. Revision Apr2020...
  • Page 2 J2 SUpERVISION: Enables transmission of The Ness RR1 Mini Radio Reed Switch is a regular supervision signals. Default is ON. 3V battery operated transmitter with internal reed switch. J3 ENCRypTED: Enables radio transmission in Ness 56bit format. This is compatible will most The low profile body of the reed switch and late model Ness receivers and radio control supplied magnet allows for unobtrusive panels. Default is ON. installation on door and window frames in cases where hardwired reed switches J6 RADIO ENABLE: Enables the radio transmitter.
  • Page 3 Reed swItch specIfIcatIons 3V Lithium battery CR2477 OpERATINg VOLTAgE The reed switch can be used to protect openings using the magnet supplied. QUIESCENT <16µA CURRENT DRAw Mount the magnet on the moveable door 1. Alarm/restore from reed SIgNALS or window and the Ness RR1 on the fixed TRANSMITTED switch. frame. Align the magnet with the reed switch 2. Tamper. 3. Low battery signal. leaving a gap of no more than 15mm when 4. Learn message (on power the door/window is closed. up). 1. Encrypted signals. RADIO SECURITy 2. Supervised operation. (when used with a...
  • Page 4 RR1 MINI RADIO REED INSTALLATION NOTES National Customer Service Centre ph: 1300 551 991 Document part Number: 890-xxx customerservice@ness.com.au...
