Summary of Contents for Max Blank Erfurt

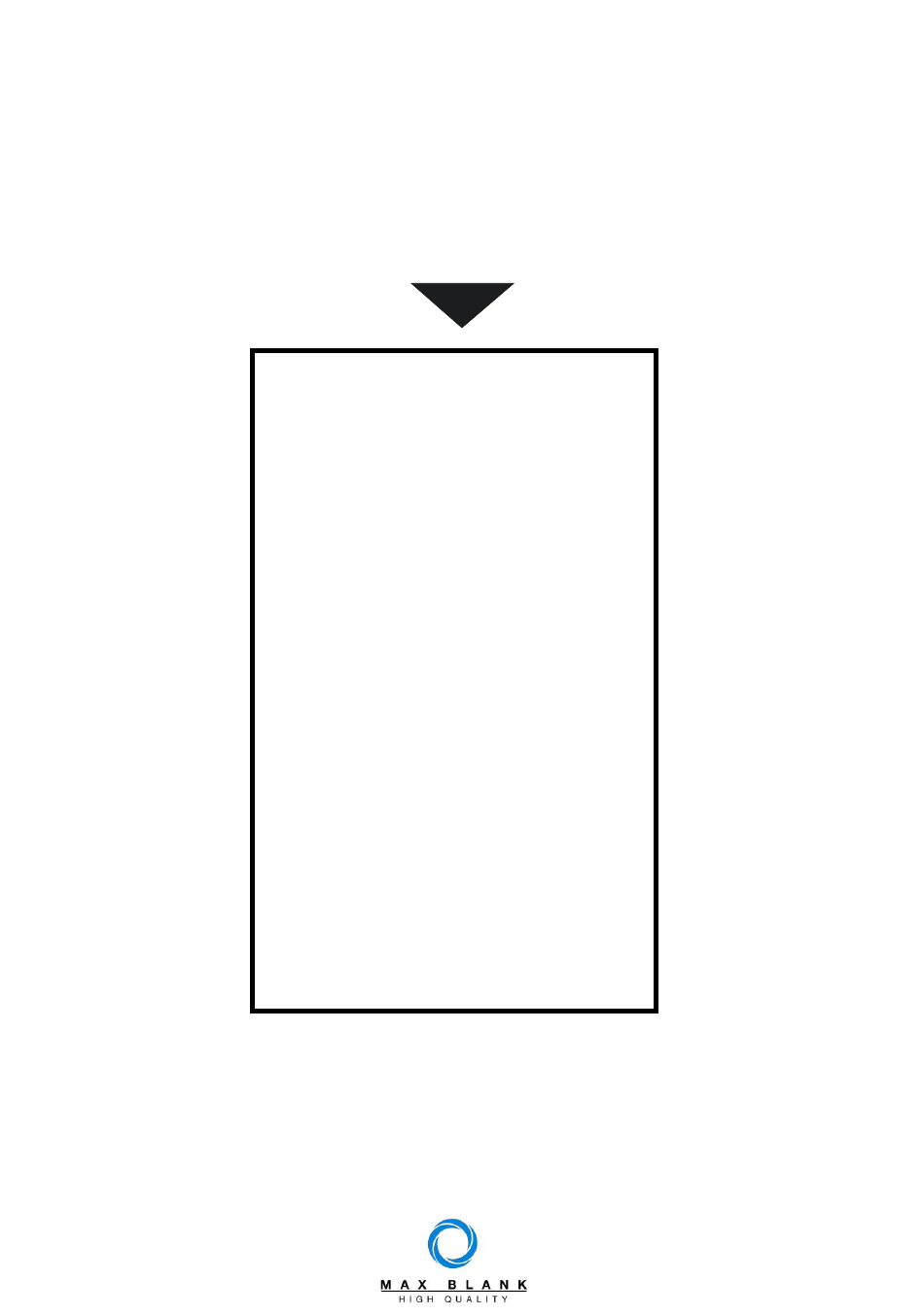

- Page 1 ASSEMBLY INSTRUCTIONS Type plate for your heater Erfurt Erfurt SP Please see the next page for further important notes!
- Page 2 Affixing the type plate It is now a legal requirement to affix the enclosed type plate to your heater. The chimney sweep needs to see the specifications on the heater to be able to approve the device. You can therefore decide where to affix the type plate in your given installation so that it is clearly legible with the chosen location complementing the stove's overall appearance.
-
Page 3: Table Of Contents
ASSEMBLY INSTRUCTIONS FOR WOOD-BURNING STOVE Model: Erfurt Contents: Page Data Sheet Safety Distances Further notes Air Slide Settings Assembling the Chamottes Cleaning Assembly Outside Air Connection Accessories Scope of Delivery Product data sheet Subject to technical changes. Please read your technical instructions as well as the enclosed installation and operating instructions carefully and keep them in a safe place. -
Page 4: Data Sheet
1 Data Sheet (Dimensions in cm) The following standards and requirements are fulfilled EN 13240 1. BImSchV Stufe 2 Austria Art. 15a B-VG BStV Munich BStV Regensburg FBStVO Aachen Switzerland LRV 2011 VKF-Nr. 26909 Denmark Page 4... - Page 5 Specifications Erfurt Erfurt SP Height 135 cm 166 cm Width (body) 30 cm 30 cm Depth (body) 30 cm 30 cm Total weight (incl. accumulator) 120 kg 169 kg Chamottes weight 14 kg 14 kg Heat accumulator weight 39 kg Flue pipe socket Ø...
-
Page 6: Safety Distances
2 Safety Distances Protect all flammable components, furniture, or objects near the wood-burning stove from heat exposure. In particular, follow applicable local regulations. Distance to flammable wall Distance to insulated wall 1. Fire protection board 2. Radiant heat 3. Vermiculite board or similar Safety distance to flammable components: The radiant heat (2) from the door glass must maintain a distance of 80 cm to flammable components. -
Page 7: Further Notes
3 Further notes Maintaining the safety distances to flammable components and those requiring protection means you are complying with document J of the building regulations, regulating the rules for installing solid fuel appliances. If the components are non-flammable, you can reduce the distance. -
Page 8: Air Slide Settings
4 Air Slide Settings Before heating the stove, please check that the ash container (4) and the base (2) are in place. If pellet box (3) is existing, this box can also be optionally installed. The air slide (1) regulates how much air is available for combustion. -
Page 9: Assembling The Chamottes
5 Assembling the Chamottes Insert the chamotte pieces dry, do not use fixatives. Insert the individual chamotte stones in the correct order into the combustion chamber as described below. Ensure the chamottes sit properly so your stove works flawlessly. Check the chamotte stones and deflection plates for completeness. - Page 10 Place another left (3) and right (4) side stone on the already installed side stones. Install the top deflection plate (1) as illustrated. Place the top deflection plate (1) onto the top contact surface (O) and the back mounting bracket (U) as illustrated.
- Page 11 The lower deflector plate (2) have to be rest on the top shelf (O) as illustrated and on the side plates (3,4) with the loop (U) on the back. Push the deflector plate (2) back until it is positioned with the loop (7). Insert the ash container (9) into the combustion chamber.
-
Page 12: Cleaning
6 Cleaning To clean the firebox thoroughly, you can uninstall the chamotte cladding in the reverse order to that described in Section 5. This gives you even better access to the firebox and the combustion air openings. To clean the flue gas pipes, remove the baffles from the wood-burning stove to enable you to remove soot from the flue gas pipes in the combustion chamber. -
Page 13: Assembly
7 Assembly : Erfurt wood-burning stove Steel cover Accumulation Block Firebox door Outside air Base Caution! Handle all cladding elements with extreme care! Ensure not to collide with other parts or objects! Do not position cladding elements on corners or edges! Place the parts on a soft surface (e.g., cardboard)! - Page 14 Place the wood-burning stove (1) in its final location and check its horizontal position using a spirit level. If necessary, use the adjustable feet (3) for aligning the stove. Use the spanner for turning the adjustable feet (3). Place the steel cover (2) onto the wood-burning stove (1).
- Page 15 (1). The adjacent figure shows the built-in accumulator stones in the Erfurt SP with flue pipe connection to the top (6). Place the steel cover (2) onto the wood-burning stove (1).
-
Page 16: Outside Air Connection
8 Outside Air Connection Outside air connection The wood-burning stove is prepared for an external air connection to the rear (H) or bottom (U). Depending on your connection type, (downwards (U) or backwards (H)), use a straight outside air pipe socket (1) or an angled outside air pipe socket (2). -
Page 17: Accessories
9 Accessories Floor protectors The Max Blank floor protectors are a practical solution to protect the floor to the side and in front of the stove. The floor protectors can be removed for cleaning and when stove is not burning. -
Page 18: Product Data Sheet
11 Product data sheet Max Blank GmbH Name or trademark Klaus-Blank-Straße 1 D-91747 Westheim Model identifier KO9 (Erfurt, Erfurt SP) Energy efficiency class Direct heat output 7,2 kW Indirect heat output N.A. (indicate if applicable) Energy efficiency index (EEI) 106,0... - Page 19 Notes: Page 19...
- Page 20 If you require customer service, please contact your specialist retailer (see manufacturer's stamp) Max Blank GmbH - Klaus-Blank-Straße 1 - D-91747 Westheim service@maxblank.com www.maxblank.com Subject to errors, changes in construction, design, colour hues, delivery scope, and typographical errors. Erfurt-ENG-04.docx...
