Summary of Contents for SignaMax N Series

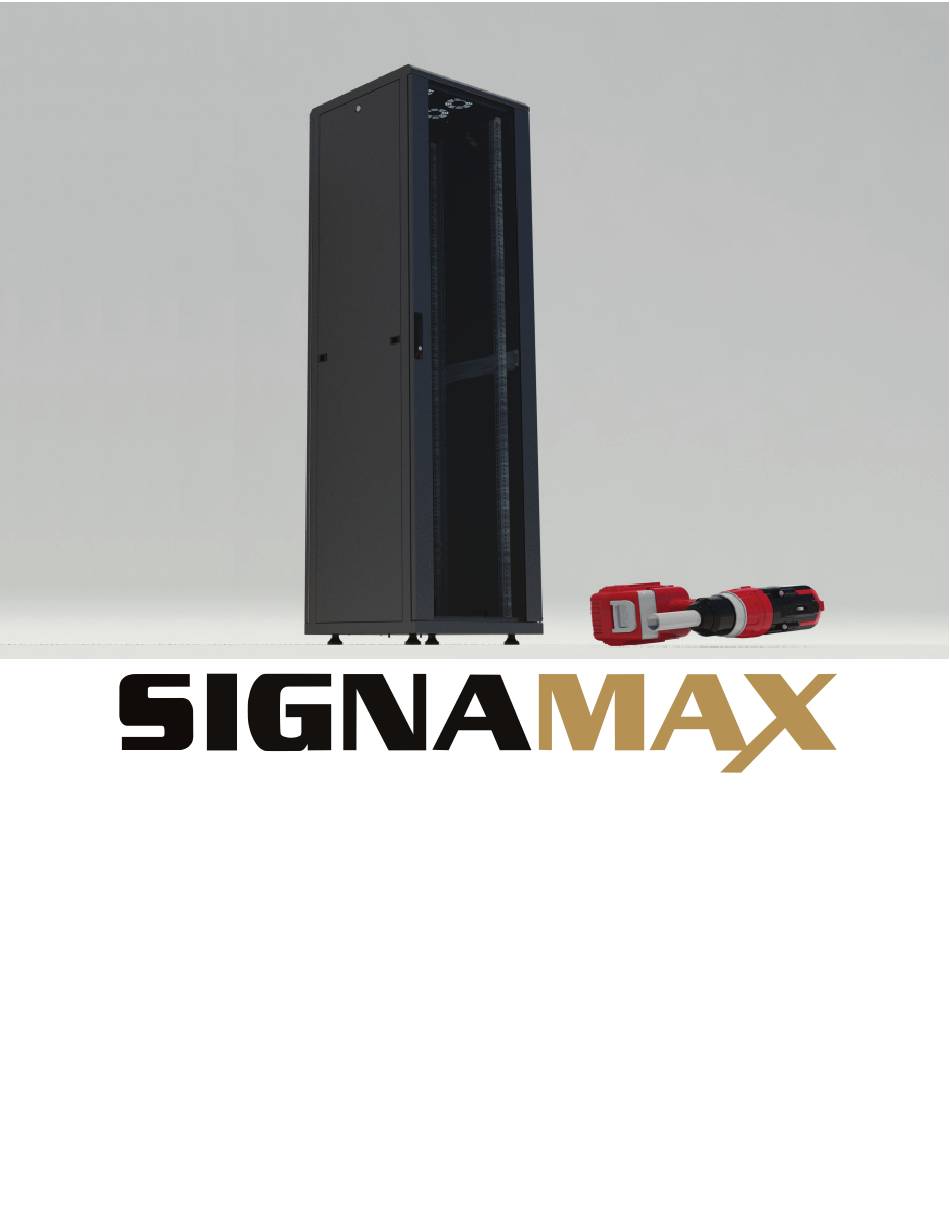

- Page 1 Steel Cabinet Installation Guide for N- Series, S-Series and U-Series Cabinets www.signamax.com...
- Page 2 Note : Use the parts list included in this manual to verify that all parts are accounted for before assembly. If any parts are missing, contact the retailer of this Cabinet for replacement parts 1| Steel Cabinet Installation Manual www.Signamax.com sales@signamax.com | P. 1-800-446-2377...
- Page 3 Assembling Adjustable feet on the Bottom Sheet Assembling Please insert each Vertical Profile as Vertical Profiles shown picture. 2| Steel Cabinet Installation Manual www.Signamax.com sales@signamax.com | P. 1-800-446-2377...
- Page 4 M5x12 Phillips Countersunk Do not over-tighten. This will damage the bolt Assembling Side Support Rails Fix Left and Right Supporting Rails with 4 M5 X12 Torx External (6-lobe) 3| Steel Cabinet Installation Manual www.Signamax.com sales@signamax.com | P. 1-800-446-2377...
- Page 5 Assembling Top Cover After inserting Top Cover, please fix it from two side as shown on the picture with M5x12 Phillips Countersunk 4| Steel Cabinet Installation Manual www.Signamax.com sales@signamax.com | P. 1-800-446-2377...
- Page 6 Assembling Rear Door Fix the Rear Door Holder M5 X12 Torx External (6-lobe) Fix the Rear Door Fixer M5 X12 Torx External (6-lobe) 5| Steel Cabinet Installation Manual www.Signamax.com sales@signamax.com | P. 1-800-446-2377...
- Page 7 While you install Rear Panel make sure locks are unlocked. Please first put lugs in hole which is on the bottom frame as shown on the picture 6| Steel Cabinet Installation Manual www.Signamax.com sales@signamax.com | P. 1-800-446-2377...
- Page 8 M5 X12 Torx External (6- lobe) Mounting rails have to be fixed from 3 point on the cabinet Fix the Mounting Rails to the Bottom Cover with M5 X12 Torx External (6-lobe) 7| Steel Cabinet Installation Manual www.Signamax.com sales@signamax.com | P. 1-800-446-2377...
- Page 9 Assembling 19” Mounting Rails for 800 width Fix Adapters on Side Support Rails for left and right side each Adapter has to be fi xed with M5 X12 Torx External (6-lobe) 8| Steel Cabinet Installation Manual www.Signamax.com sales@signamax.com | P. 1-800-446-2377...
- Page 10 Top Cover Assembling While you install side panel Side Panels make sure locks are unlocked. Please first put lugs in hole which is on the bottom frame as shown next page 9| Steel Cabinet Installation Manual www.Signamax.com sales@signamax.com | P. 1-800-446-2377...
- Page 11 Assembling Front Door Insert washer set between door and bottom cover Pull it down when you fi x top side of the door 10| Steel Cabinet Installation Manual www.Signamax.com sales@signamax.com | P. 1-800-446-2377...
