Summary of Contents for MacroAir Technologies AirLynk

  • Page 1 Operation Manual MacroAir AirLynk Modbus/BACnet...

  • Page 3: Table Of Contents

    Appendices Appendix A: Modbus + BACnet Control Points ............21 Appendix B: Warranty ......27 Technical Support ........28 © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 4: Caution & Safety

    ATTENTION: Qualified Technicians. All electrical troubleshooting and repair must be done by a qualified technician and meet all applicable codes. REFER TO FAN INSTALLATION MANUAL(S) FOR FURTHER MAINTENANCE INFORMATION. © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 5: Fan Network Ordering

    It shall be recognized that where this manual indicates BACnet MSTP it shall also be recognized as Modbus RTU . © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 6: Airlynk Enclosure

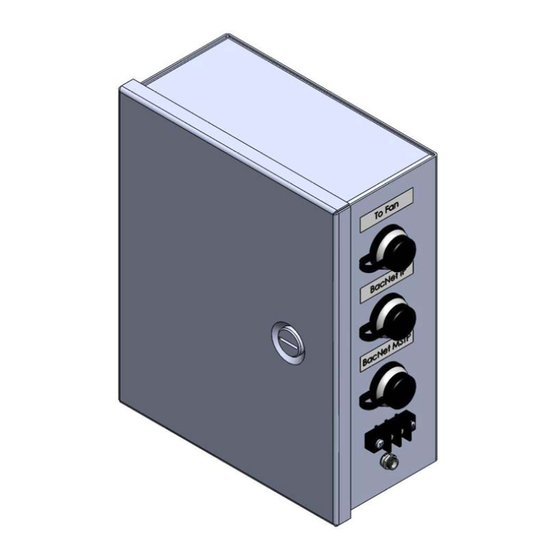

    Introduction AirLynk Enclosure Dimensions Components © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 7: Network Wiring Instructions

    Refer to the appropriate fan installation manual for specific networking instructions. Fan AVD 370 AVD3, 550, 780, Y and X Series Fans © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 8: Repeater Install For 370 Fans

    Repeaters/Isolators should be evenly placed in the network. Make sure there is at least one Repeater/Isolator every 5 fans. © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 9: Network Wiring Requirements

    Daisy Chain Networked MacroAir fans must be connected in one single line, referred to in this document as a The characteristics of a proper daisy chain are: one beginning (AirLynk) and one end (last fan). If the fans are not connected in one line/chain, there will be a de-graduation of the communication signal and the network may not function as intended (fans in the network may not operate).

  • Page 10: Improper Wiring Configuration

    Network Installation Improper Wiring Configuration End of Line x3 End of Line x8 Proper Wiring Configuration ONE End of Line © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 11: Excess Cable At Connection Point

    If more than two feet of cable is needed for future relocation of the fan, run the cable up toward the ceiling and back down in a horseshoe shape. ALWAYS AVOID SHARP BENDS OF THE CABLE. © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 12: Wiring: Cat5E Pin-Out

    Note: For Fire Alarm assignment, networks with X Series fans and mixed fan networks which have one or more X Series Fans, use the blue & white/blue pair. Wiring: Repeater (AVD 370 Fan) © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 13: Plc

    Wiring Diagrams Wiring: Airlynk © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 14: A Quick Start Guide

    PLC knows there is a fan at that address. Main Page 1 and 2 © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 15: Fan Setup

    4. Optional: Set blade sizes (diameter) for each fan on the network (can be done through BACnet). 5. Run all fans to ensure fan functionality © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 16: Bacnet Mstp Setup

    Stop - Stop bit Dev ID - ID that is displayed on BACnet end Subnet - Subnet that the device is on © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 17: Bacnet Ip Setup

    ETH - TCP/IP Port number FTP - FTP Port number (0=port 21) HTTP - HTTP port number (0=port 80) © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 18: Certifications

    The mark is a symbol of a high-quality BACnet product. Go to http://www.BACnetInternational.net/blt/ for more information about the BACnet Testing Laboratory. Click here for BACnet PIC Statement. © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 19: Introduction, Bacnet Setup

    The Modbus TCP/IP Node-ID will be set to the same value as the Node-ID of the Modbus RTU device. © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 20: Interfacing Plc To Devices

    Pin 2 RS-485-1 - Pin 3 RS-485-1 GS Figure 4: Connection from PLC to RS-485 Field Network (ref pg. 11) © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...
  • Page 21 Pin Assignment CN10 Power In (+) Pin 4 Power In (-) Pin 5 Figure 6: Power Connections (ref pg. 11) © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...
  • Page 22 IP address from display (Page 12, Main Page 2 Curr IP). 3. Selecting Profiles for Devices Connected to PLC © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 23: Appendix A: Modbus + Bacnet Control Points

    29 FanSpeed29 Sets the speed of fan 29 0-100% 8989 30 FanSpeed30 Sets the speed of fan 30 0-100% © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...
  • Page 24 Sets the direction of fan 29 0-Off 1-Forward 2-Reverse 9079 60 FanDir30 Sets the direction of fan 30 0-Off 1-Forward 2-Reverse © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...
  • Page 25 Shows the RPM/output current of fan 29 0.1 RPM (AVD)/0.1A (VFD) 9384 FanRPM30 Shows the RPM/output current of fan 30 0.1 RPM (AVD)/0.1A (VFD) © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...
  • Page 26 Displays the fault of fan 28 9018 FanFault29 Displays the fault of fan 29 9019 FanFault30 Displays the fault of fan 30 © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...
  • Page 27 8-24ft (For 3 blade add 300) 9199 FanSize30 Sets the diameter of fan 30 8-24ft (For 3 blade add 300) © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...
  • Page 28 Run motor calibration on selected fan 1 scan in progress, 10134 159 FanScanning AirLynk is looking for fans 0 scan complete © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 29: Appendix B: Warranty

    1 "Standard Electrical" means any common electrical component that is utilized across more than one fan line will assume the higher warranty period. 2 "Operate properly" applies only to mechanical, electrical, and structural systems of the product. © 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com AirLynk Modbus/BACnet Operation Manual 90-30054-00 Rev A-01 Date: 032720...

  • Page 30: Technical Support

    Appendices MacroAir AirLynk Technical Support Thank you for purchasing the AirLynk for MacroAir Fans. Please call MacroAir Fans for Technical Support of the AirLynk product. Support Contact Information: MacroAir Fans 794 S. Allen Street San Bernardino, CA. 92408 MacroAir Fans Service: 866-668-3247 option 2 Website: www.macroairfans.com/support...
  • Page 31 794 South Allen Street San Bernardino, CA 92408 MacroAir AirLynk Modbus/BACnet (866) 668-3247 is UL Listed Macroairfans.com...
