Welch 2511 Owner's Manual

Aspiration / filtration vacuum system
Hide thumbs Also See for 2511:
Table of Contents

Advertisement

Quick Links

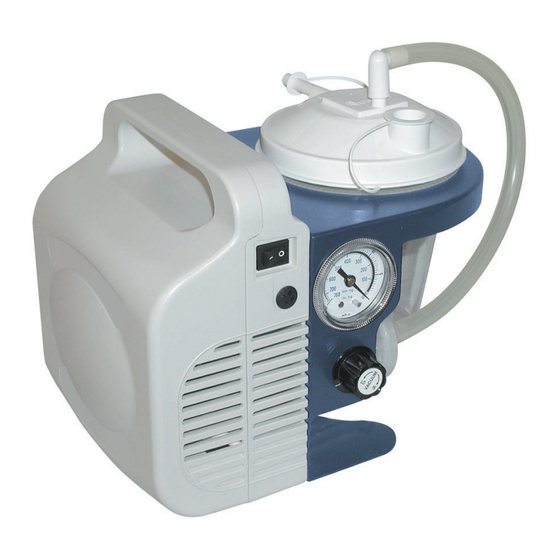

Model 2511B-75 / 2511C-75
Welch Rietschle Thomas
7301 North Central Avenue
Skokie, IL 60077
Phone: (847) 676-8800
Fax: (847) 677-8606 (Technical Support)
Fax: (920) 451-4397 (Ordering)
E-Mail: welchvacuum@thomasind.com
Web-Page: www.welchvacuum.com
OWNER'S MANUAL
FOR
ASPIRATION / FILTRATION
VACUUM SYSTEM
MODELS:
2511 & 2515
Model 2515B-75
Warning
Not recommended for pumping acid,
base or organic vapors or gases.
Model 2515C-75
For outside of U.S. and Canada, contact your local
Rietschle Thomas sales office, see back page
Part No. 67-1772R1.1
Approval Agency's
Printed in USA
