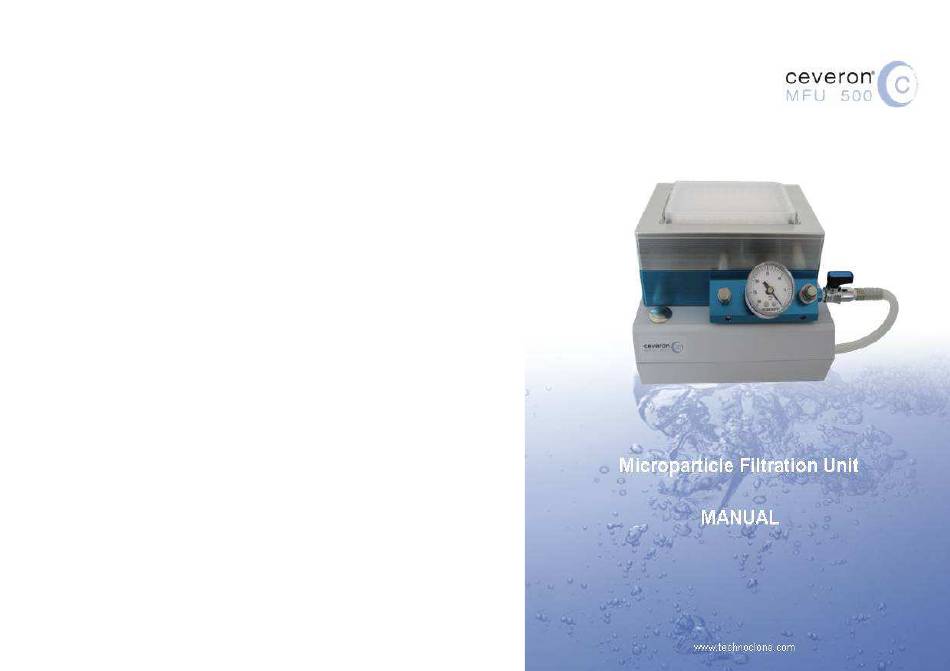

Technoclone Ceveron MFU 500 Manual

Microparticle filtration unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ceveron MFU 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Technoclone Ceveron MFU 500

  • Page 2: Table Of Contents

    CONTENTS ABOUT THIS MANUAL SAFETY WARNINGS PARTS AND THEIR FUNCTIONS ® USING CEVERON MFU 500 APPLICATION NOTES REPLACING O-RING AND GASKET CLEANING AND STORAGE TROUBLE SHOOTING TECHNICAL DATA ORDERING INFORMATION Introduction WARRANTY ® The new filtration unit Ceveron MFU 500 is specifically designed for removal of particles larger than 0.2 µm and their collection from platelet poor plasma and other cell poor body fluids under standardized conditions.

  • Page 3: About This Manual

    The voltage to be used in connection with Ceveron MFU 500 is preset to 12 V DC. The correct settings for your country are preset by Technoclone as is the polarity of the voltage adapter. You must not change the settings! •...

  • Page 4: Parts And Their Functions

    3. PARTS AND THEIR FUNCTIONS Filter Plate Sample collection Holds multiwell filter plates tightly to the receiver Manifold Collar plates Contains gasket and O-Ring (not visible, in the manifold collar) > see 6. Replacing O-ring and gasket Spacer Block Serves as support for the receiver plate. Is connected to the vacuum pump and holds the Manifold Base spacer block...

  • Page 5: Using Ceveron Mfu 500

    ® 4. USING Ceveron MFU 500 FIRST-TIME USE Remove the foam pad which is placed between upper and lower part of the manifold for protection during shipment. The power supply is already set to the voltage of your country. The output voltage is set to 12 Volts and must not be changed.
  • Page 6 OPERATING PROCEDURE Plug the power supply n in a socket of the regular AC power line and the 12 V power cable into the socket in the grey case Take off the upper part of the manifold and place the receiver plate on top of the white spacer block Never use the unit without receiver plate! (The filtrate would be...
  • Page 7 Seal the filter plate tightly with a plate sealer foil (provided). Release the vacuum obtain best possible vacuum, the whole plate has to To release the vacuum, press the be sealed independent off the ventilation valve button f f . The number of filled wells.

  • Page 8: Application Notes

    5. APPLICATION NOTES 6. REPLACING O-RING AND GASKET Generation of micro particle free plasma samples and recovery of micro An accessory kit containing an additional O-ring, gasket and Allen wrench is ® particles from platelet poor plasma: included with each unit of Ceveron MFU 500.

  • Page 9: Trouble Shooting

    TUBING i leaking receiver plates Parts in contact with spilled liquids: Pump head Polyarylamide (PA) Diaphragm EPDM Valves EPDM If problems continue after trying the suggested solutions, contact sales@technoclone.com or your local distributor.

  • Page 10: Ordering Information

    REF 9821034 Plate sealers for filter plates 100 pc. UPA 2000: approx. 118 x 62 x 39 (mm) (without AC plug adapter respectively) ® REF 9821013 Ceveron MFU Replacement Accessory Kit (Gaskets) Also see Technoclone products under www.technoclone.com or www.ceveron.com...
  • Page 11 The warranty is void, if the unit has been subjected to unauthorized manipulations. If the unit has to be sent back to Technoclone for repair purposes, please pay attention to proper packaging. Technoclone does not take responsibility for any damages occurred during transport.
