Summary of Contents for alphatronics AlphaVision Wireless interface

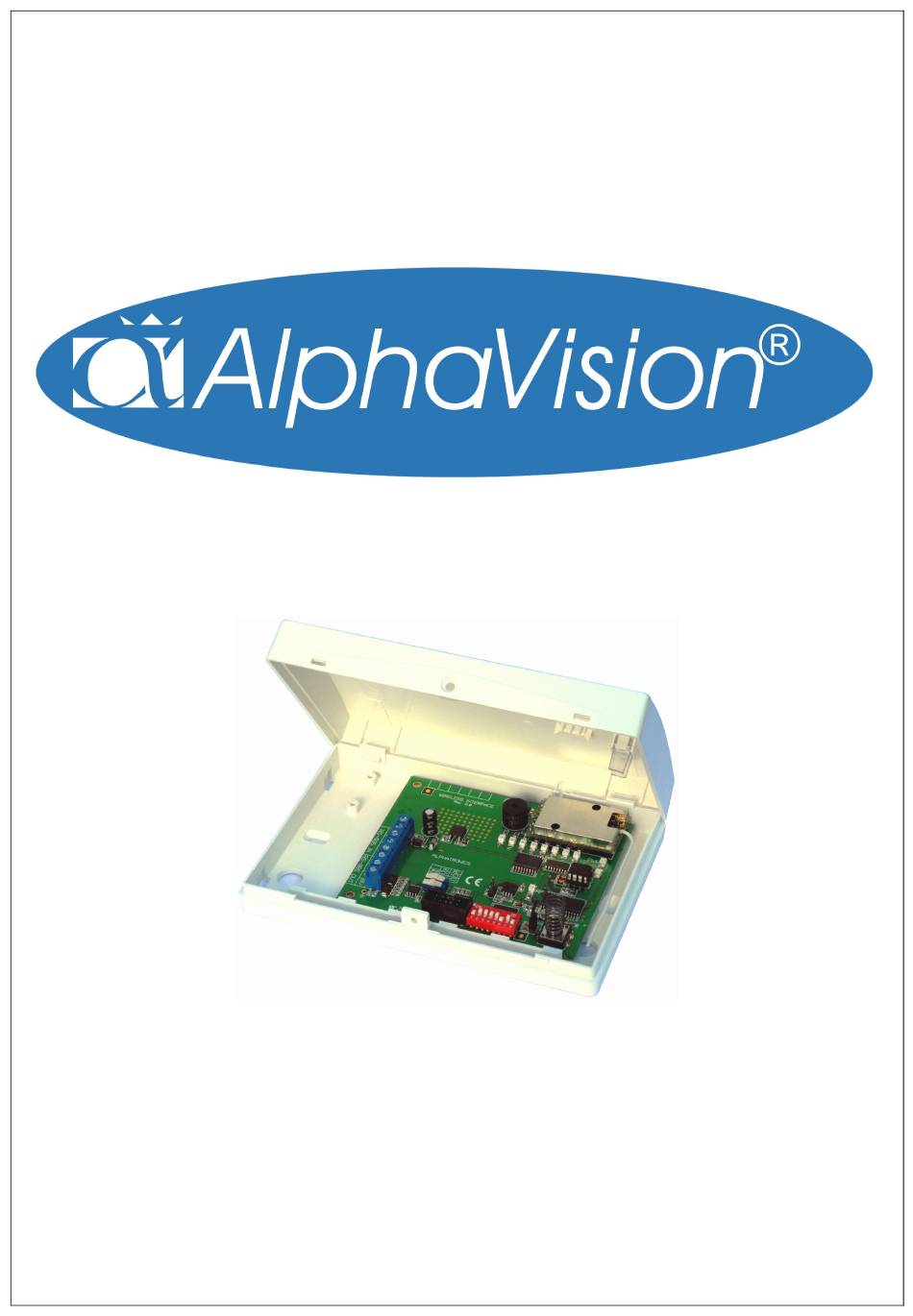

- Page 1 Wireless Interface Installation Manual Alphatronics bv * Watergoorweg 71* 3861MA Nijkerk * Tel.: 033-2459944 * Fax.: 033-2453149 * info@alphatronics.nl...
- Page 2 215 grams INTRODUCTION The AlphaVision Wireless Interface is an expansion module for the Alphavision NG, EC (Alpha Easy) and AlphaVision 96 / CP-508LCD. The Wireless Interface is the link between wireless detectors and the control panel. The Wireless interface is connected through the RS-485 bus of the control panel. The Wireless interface is ideal for situations were it is not possible to use cables or were extra functionality like wireless arming/disarming is desired.
- Page 3 “Keyswitch PULS” in screen 8 of the AlphaVision programming must be set to N. Print Wireless Interface Rev. 2.0: LED’s 1-8 RF-receiver jumper Power LED Communicatie TERMINAL- BLOCKS RF LED RS-485 bus (IN/OUT) JP2 and JP3 Programming Dipswitch Tamper Connector Switch RS-232 Installer manual AlphaVision Wireless Interface Rev. 2.0 27-11-2006 Page. 3/8...
- Page 4 An error tune will sound for 4 seconds when the keyfob has already been enrolled into another input. This is to prevent the installer from programming the same keyfob into two different inputs. Installer manual AlphaVision Wireless Interface Rev. 2.0 27-11-2006...
- Page 5 1-4 and set the address settings back to RS-485 bus (See figure 1). Set the slide switches JP2 and JP3 back to AV mode (RS-485). Remove the program cable and close the casing. Installer manual AlphaVision Wireless Interface Rev. 2.0 27-11-2006 Page.
- Page 6 OFF= supervision 2 hours Sw 7: Operational ON= supervision security active OFF= supervision security inactive Learning (programming) ON= Learning by sabotage OFF= normal learning Sw 8: ON= learning mode OFF= normal use Installer manual AlphaVision Wireless Interface Rev. 2.0 27-11-2006 Page. 6/8...
- Page 7 Activate the detector or keyfob transmitter. As soon as the signal of the detector or transmitters is received, the status strength will be appear on your screen in the “rf” column. When using a keyfob transmitter the status is displayed by using the words “CLOSE” of “OPEN”: Installer manual AlphaVision Wireless Interface Rev. 2.0 27-11-2006...
- Page 8 After exiting the programming mode with a computer or laptop do not forget to put the slide switches JP2 and JP3 back to the correct mode (RS-485 mode=both switches to the left). © Alphatronics B.V. - 2006 Installer manual AlphaVision Wireless Interface Rev. 2.0 27-11-2006...
