Important - please read these instructions carefully prior to fi tting. This unit will be damaged if
connected with reverse polarity. Before connection please check your chassis earth polarity and make
sure you have the correct regulator for your earth polarity.
Please note the wiring instructions also require a 15 Amp fuse to be connected in the red wire. The
regulator will cause this fuse to blow if the battery is connected backwards. If the fuse blows, re-check
that the wiring and battery polarity are correct. Running the regulator with reverse polarity, even for a
short duration, will damage it beyond repair. If in doubt contact an expert for advice.
1 Disconnect the fi eld coil wire marked 1 from F and connect it to the D terminal
2 Disconnect fi eld wire marked 2 from earth screw and connect it to F terminal

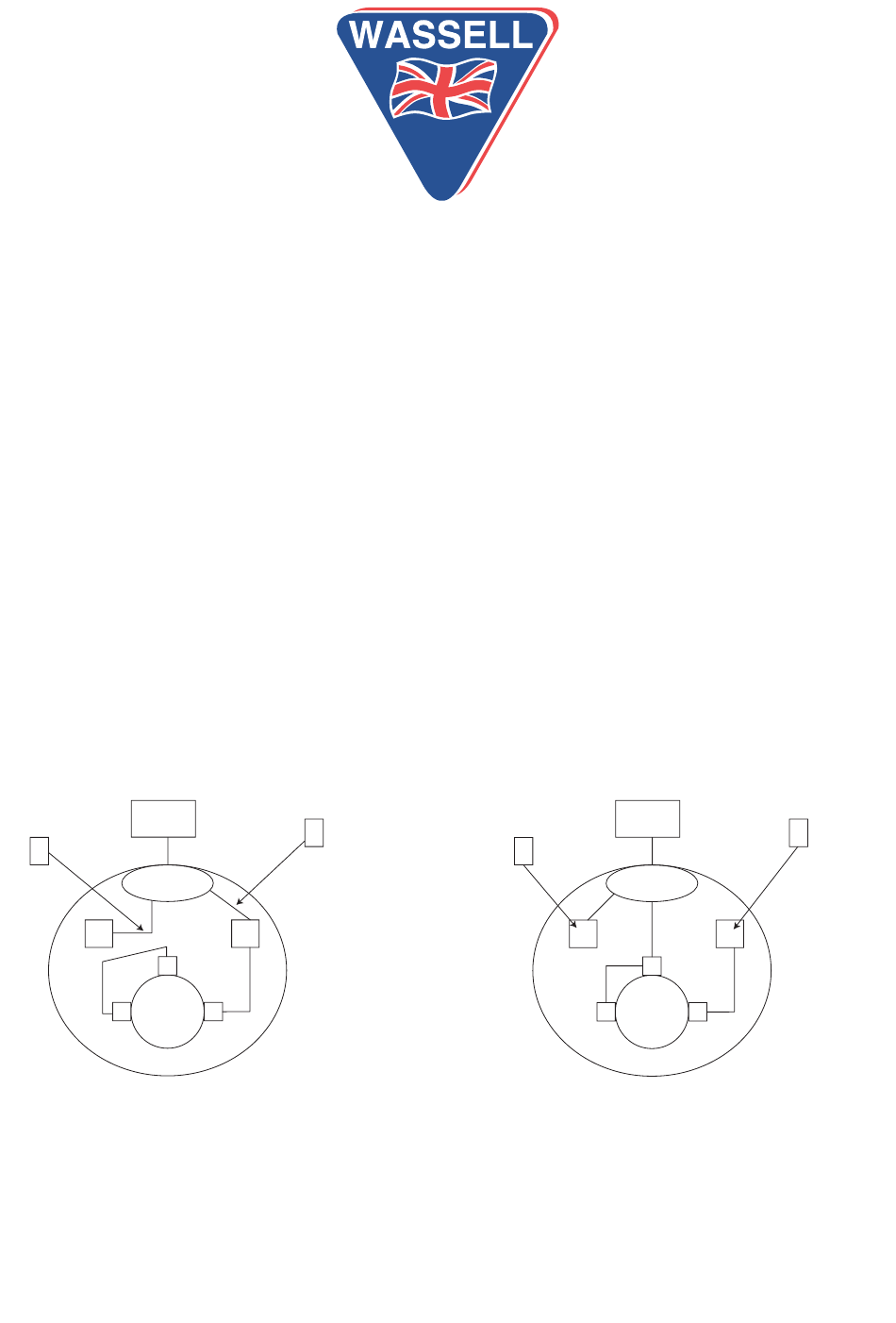

Old confi guration for
mechanical regulator
FIELD
COIL
2
F
1 move this fi eld wire to D terminal
2 move this fi eld wire to F terminal
PART NUMBER WW10221N
6 volt negative earth DC regulator
1
D
Revised confi guration for
negative earth solid state unit
1
F
Field wires must be connected as above drawing
FIELD
COIL
2
D
Advertisement
Table of Contents
Summary of Contents for WASSELL WW10221N
- Page 1 PART NUMBER WW10221N 6 volt negative earth DC regulator Important - please read these instructions carefully prior to fi tting. This unit will be damaged if connected with reverse polarity. Before connection please check your chassis earth polarity and make sure you have the correct regulator for your earth polarity.
- Page 2 Testing and polarizing the dynamo (diagram 1) Remove the dynamo from the motorcycle Connect a temporary jumper from the F terminal to dynamo earth Connect a wire from negative terminal of the battery to dynamo chassis Connect a wire from positive battery terminal and touch it on to the D terminal The dynamo should motor in the correct drive direction ( see arrow on case ) This will determine if the the fi...
Need help?
Do you have a question about the WW10221N and is the answer not in the manual?
Questions and answers
But how do you wire it to a Positive earth. They sent a 6volt Positive regulator. Not instruction on how to wire it.
You do not wire the WASSELL WW10221N to a positive earth. The WW10221N is a 6-volt negative earth DC regulator and is polarized for negative earth only. Connecting it to a positive earth system or reversing polarity will damage the unit beyond repair.
