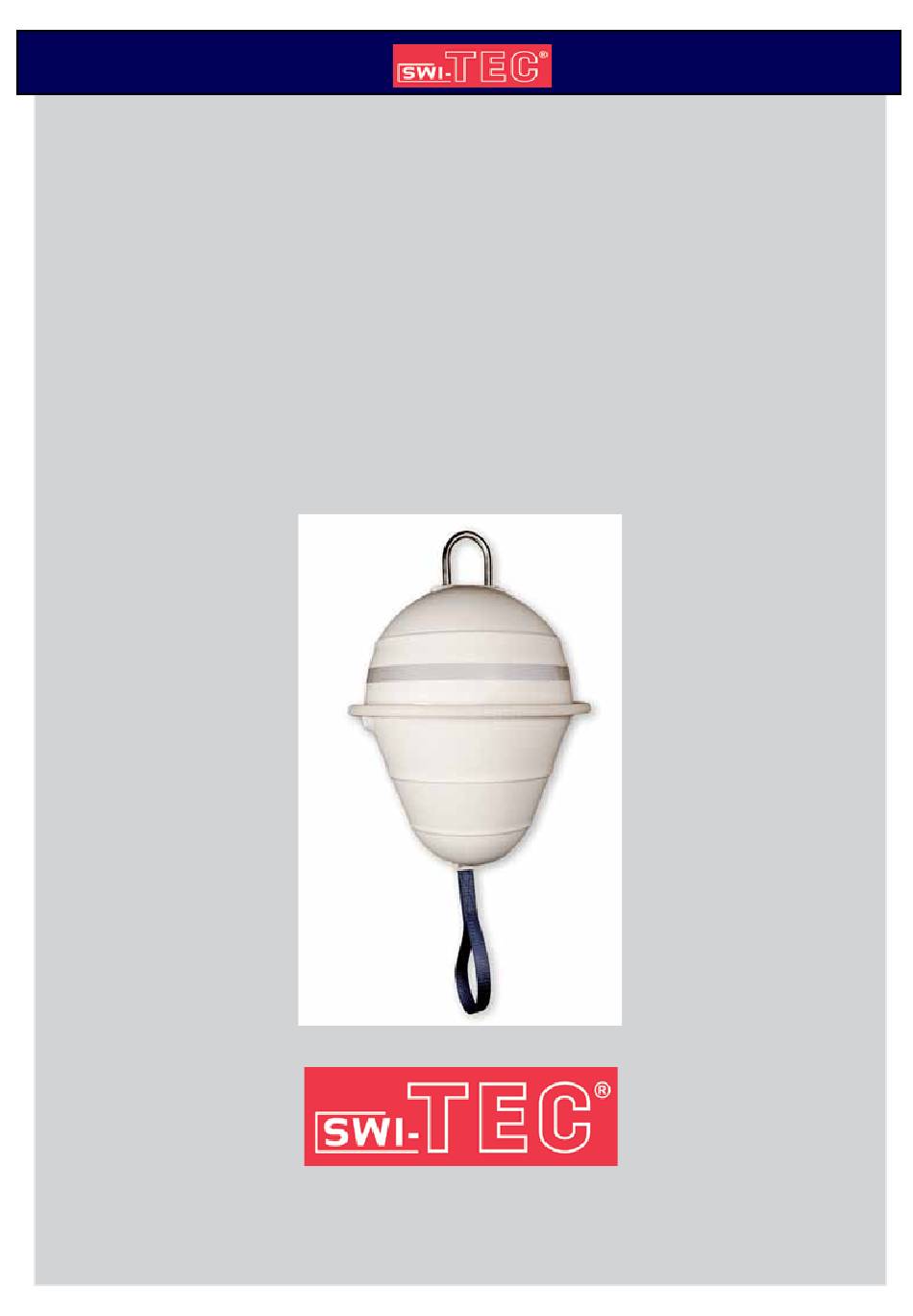

- Page 1 Innov A tIon SPECIAL W A tEr Repair Instructions SWI-TEC Anchor Buoy www.swi-tec.com...
- Page 2 Innov A tIon SPECIAL W A tEr Anchor Buoy – Repair Instructions 1a: Insert end of belt (the end without the loop) through the exit guide. 1b: Secure the belt to the drum with a self-tapping screw. 1c: Wind belt clockwise onto drum.
- Page 3 Innov A tIon SPECIAL W A tEr Anchor Buoy – Repair Instructions 4a: Push the end of the spring coil into the slot of the hub. 4b: Secure the end of the spring coil with the M4 set-screw with a 2mm Allen wrench.
- Page 4 Innov A tIon SPECIAL W A tEr Anchor Buoy – Repair Instructions 8a: Use the palm of your hand to secure the spring coil in place on the hub. 8b: Carefully mount the spring coil onto the spring coil bearing previously installed on the exit guide assembly with the machine screw.
- Page 5 Innov A tIon SPECIAL W A tEr Anchor Buoy – Repair Instructions 13: Push the axle through hub and guide arm until the retaining collar is seated against the end plate of the belt reel. note: you should be able to rotate the axle freely in the hub.
- Page 6 If the mating surfaces of the upper and lower housing do not form an air-tight seal then the Anchor Buoy will not float!
- Page 7 24: Place the U-channel edge protection over the joint of the two housings. 25: test the fully assembled Anchor Buoy by pushing it completely under water for sever al minutes. there should not be any air bubbles escaping from the joint between the upper and lower housing or from the D-ring at the top.
- Page 8 Innov A tIon SPECIAL W A tEr Anchor Buoy – Repair Instructions...
