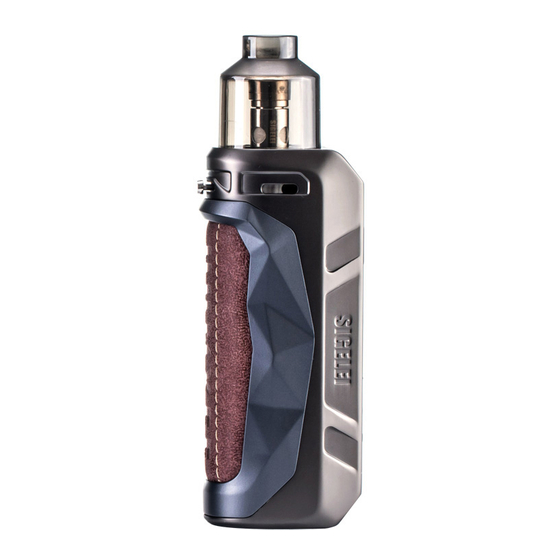

HUMVEE80 User Manual
1.Product Parameters
Size
：123mm*40.75mm*34mm
Main Material：Zinc alloy + aluminum alloy
Display：0.96 inch TFT screen
Wattage Range：5W~80W
Temperature Range：100℃~300℃/200℉~570℉
Input Voltage：3.2V~4.2V
Output Voltage：1.0V~4.0V
Support Battery：1*18650
Working Mode：AUTO / MANU / BYPASS
Resistance Range：0.12Ω~3.00Ω
Support Coil Material：NiCr/Ti/Ni200/Stainless Steel/TCR/FeCrAl 镍铬丝/钛丝/镍 200/不锈钢
/TCR/铁铬铝
Charging Interface: USB type C
Recommended adapters: 5V/2A
2.Main Features
⑴ 0.96inch TFT screen (0.96 寸真彩屏显示)
⑵ Free switch among 3 working modes (3 种工作模式可自由却换)
⑶ SMART AUTO mode: intelligent constant power output (AUTO 模式 状态下 SMART 智
能恒功率输出)
⑷ AUTO mode:Automatic configuration of Resistance and wattage （AUTO 模式 阻值
与功率自动配置）
⑸ MANU mode: freely adjustment from 5~80w （MANU 模式 5-80W 自由调节功率）
⑹BYPASS mode:full power output (BYPASS 模式全功率输出)
⑺ The battery can work regardless of the positive and negative poles.
（电池不分极性，正反装均可工作）
⑻ Support fast charge function（支持快充功能）
⑼ Automatic detection of coil's resistance （雾化芯阻值自动检测）
⑽ Battery overcharge protection（电池过充保护）
⑾ USB overvoltage protection（USB 过压保护）
⑿ Work overtime protection（工作超时保护）
⒀ low voltage protection（电池低压保护）
Advertisement
Table of Contents
Related Manuals for SIGELEI HUMVEE80
Summary of Contents for SIGELEI HUMVEE80
- Page 1 HUMVEE80 User Manual 1.Product Parameters Size ：123mm*40.75mm*34mm Main Material：Zinc alloy + aluminum alloy Display：0.96 inch TFT screen Wattage Range：5W~80W Temperature Range：100℃~300℃/200℉~570℉ Input Voltage：3.2V~4.2V Output Voltage：1.0V~4.0V Support Battery：1*18650 Working Mode：AUTO / MANU / BYPASS Resistance Range：0.12Ω~3.00Ω Support Coil Material：NiCr/Ti/Ni200/Stainless Steel/TCR/FeCrAl 镍铬丝/钛丝/镍 200/不锈钢...
- Page 2 开关机操作)： under the off state, press the fire button 5 times in 3s to display the startup logo "SIGELEI" and enter the on state. (在关机状态下，3s 内连续按 5 次吸烟键，显示开机 logo“SIGELEI”，进入开机状态。) Under the power-on state, press the fire button 5 times in 3s, the shutdown logo "BYE"...
- Page 3 4）Power adjustment operation:功率调节操作： Under AUTO mode/MAUN mode, press the "+" button to increase the power, and increase by 1W. Long press for rapid increase. After increasing to the maximum power in the current mode, it will stop and prompt MAX POWER. 在...
- Page 4 Working mode conversion (工作模式转换 4） )： under the unlocked state, quickly tap the fire button 3 times within 1S, automatic AUTO mode, RBA mode/BYPASS mode (default: AUTO mode) （在解锁状态下，1S 内快速点按 3 次点火键，自动 AUTO 模式、RBA 模式/BYPASS 模式（默 认：AUTO 模式）） AUTO mode: display AUTO 5）...
- Page 5 态，吸烟/充电/拔出充电/接入雾化器/移除雾化器/按任何按键均能唤醒主体。) 5.2 Failure prompt 故障提示 1 ） Atomizer failure (including: resistance lower than 0.12 Ω , atomizer short circuit)Will prompt "SHORT". (The atomizer resistance is over 3Ω, and the atomizer cannot be detected) “CHECK POD” will be prompted. (雾化器故障(包括：雾化器阻值低于 0.12Ω、雾化器短路）会提示“SHORT”。（雾化器大 于...
- Page 6 Support USB (TYPE-C) charging, charger specification: DC= 5V/2A. 5.5、 Prompt description:提示语说明： 1）Atomizer detection prompt: X.XX Ω 雾化器检测提示：X.XX Ω 2）Atomizer short circuit prompt: SHORT 雾化器短路提示：SHORT 3）Atomizer open circuit prompt: CHECK POD 雾化器开路提示：CHECK POD 4) vaping overtime protection prompt: OVER FIRE 吸烟超时保护提示：OVER FIRE 5）High temperature protection prompt: OVER HEAT 高温保护提示：OVER HEAT 6）power Max prompt: MAX POWER...
- Page 7 品不适合患有心脏疾病、高血压、糖尿病、心血管疾病或呼吸系统疾病等人群使 用；） 4.This product is not suitable for people who are allergic to nicotine or have other allergies.;（本品不适合对尼古丁烟碱过敏或有其他过敏史的 人群使用；） 5.This product is not suitable for people who are taking medicines;（本 品不适合正在服药期间的人群；） Attention; 1. Do not leave the device in an overheated, over cold or humid environment to avoid damaging the device;（不要将设备放在过热、过冷或潮湿的环境中...
