Summary of Contents for MAINLINE Duo

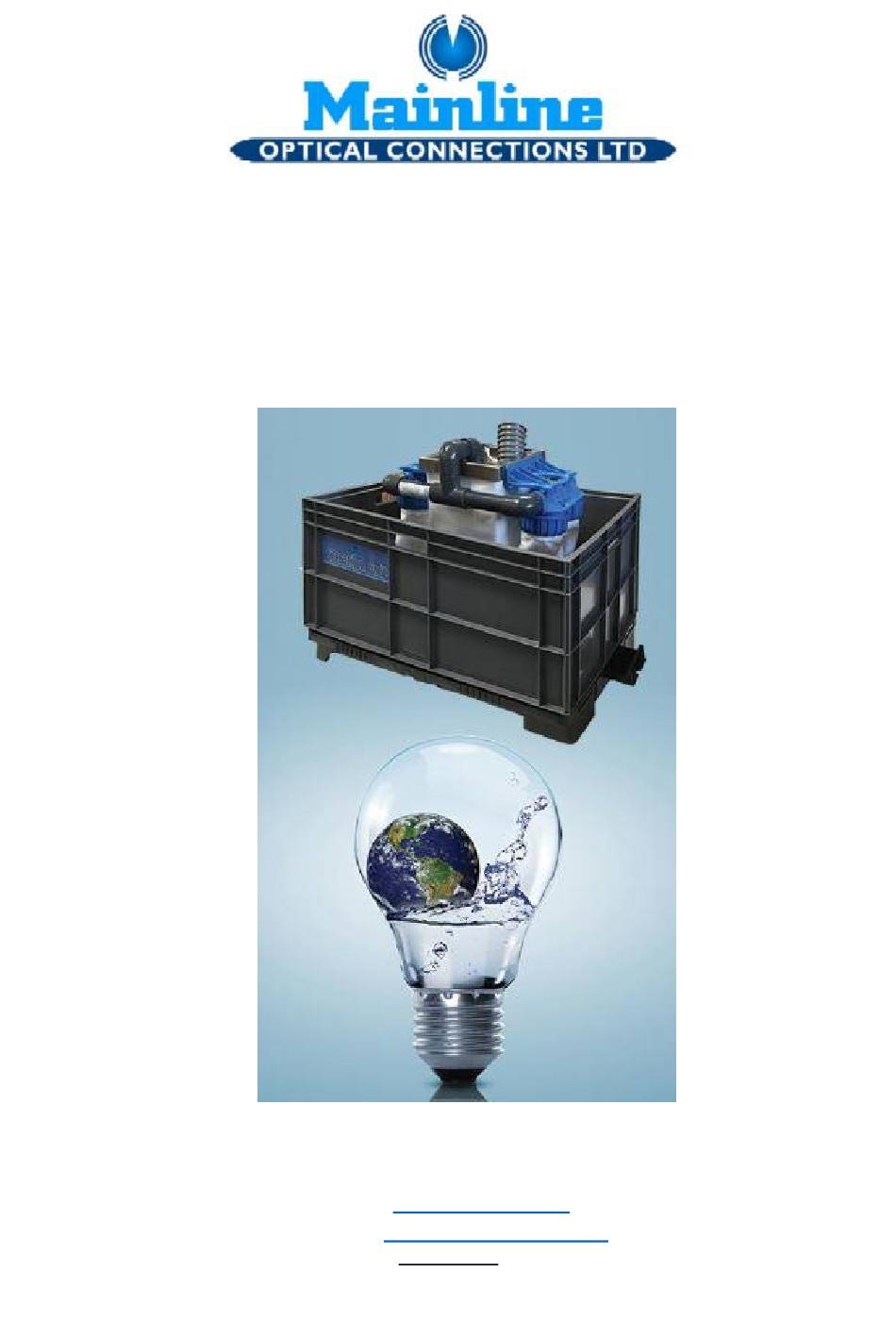

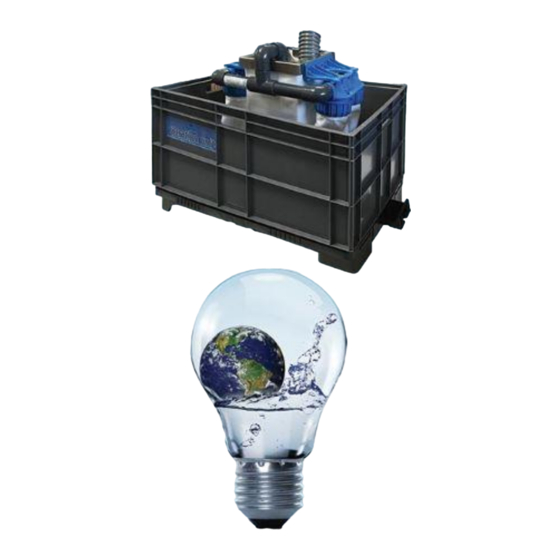

- Page 1 Duo & Compact Filtration Systems Manual Telephone: 01377 257752 Web: www.ml-oc.com Support:www.eco.ml-oc.com Version 1.7 Page | 1...
-
Page 2: Table Of Contents
CONTENTS Technical specifications Page 3 Security and accident prevention Page 4 Kit contents Page 5 Daily use Page 6 Emptying the filter socks Page 7 User tasks Page 8 Changing the socks Page 8-9 ... -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS Identification of machine Power supply: 230-240 volts Frequency 50Hz Fuse: 3amp COSHH sheet for the water conditioner is provided on page 20 of this manual. COSHH sheet is based on the ingredients in neat form and when is provided to you in the bottles is diluted to 1 part to 20. -
Page 4: Security And Accident Prevention
Safety Notice – Wear safety glasses when removing the socks from the unit. When using the wrench make sure you wear the gloves provided. Replacements or extra pairs are available from Mainline Optical Connections. Maintenance is to be completed by trained personnel only and the system must be unplugged from the electrical system. -
Page 5: Kit Contents
Kit Contents Filter top Central filter Blue collars Inner rings Filter socks (4 for Duo/ 2 for Compact) Main filter pump Wrench Gloves (2 pairs) Conditioner ( 1ltr bottle) Cleaning kit (not pictured) Page | 5... -
Page 6: Daily Use
Safety Notice – Wear safety glasses when removing the socks from the unit. When using the wrench make sure you wear the gloves provided. Replacements or extra pairs are available from Mainline Optical Connections. Please check that the unit operates correctly before proceeding with any... -
Page 7: Emptying The Filter Socks
When using the wrench make sure you wear the gloves provided. Replacements or extra pairs are available from Mainline Optical Connections. If this task is not done on a daily basis the socks will continue to fill and the emptying will become difficult, possibly leading to the socks being damaged and affecting the performance of the filtration unit. -
Page 8: Changing The Socks
Changing the Socks Every 4000-6000 lenses for the Duo unit and 2000-3000 lenses for the compact unit (or as required due to differing water quality or lens materials) the filter socks require changing Safety Notice – Wear safety glasses when removing the socks from the unit. - Page 9 Always change the full set of socks at the same time For additional support please follow the video on our support site at https://www.eco.ml-oc.com Or call Mainline Optical Connections 01377 257752 Cleaning Inlet Grill on Edger Pump We recommend that you check the condition of your edger pump/s at least once a month.
-
Page 10: Emptying Waste Adaptor
Emptying the Waste Adaptors After cutting polycarbonate lenses we recommend that you remove and empty the waste adaptors under your edging machines. The adaptors can get blocked with large chunks of polycarbonate lens due to its cutting process. If the waste adaptors are not emptied this could lead to them blocking and water backing up and forced back into the edger. -
Page 11: Changing The Central Filter
Changing the Central Chamber Bag Remove the old bag from the chamber – this may need to be cut off if you have an original chamber from Mainline Optical Connections (see photo below). If your central chamber has been replaced before then you will just need to pull the folded flap up and over at the top of the chamber, breaking the bond of adhesive. - Page 12 Clean up the central chamber framework and lay the new bag, seam down on a flat surface. Holding the chamber lengthways down and slide the bottom of the chamber into the new bag. Put the top of the central chamber onto a flat surface and pull the bag down the length of the chamber.
- Page 13 With the chamber bottom side up, tuck the 2 triangular corners left of the bag up inside the bag. Fold the top of the bag over inside the chamber. Page | 13...
- Page 14 Run a bead of adhesive (provided with new bag) round the 4 edges that are folded over to hold them in place Your new bag is fitted and ready to go. Page | 14...
-
Page 15: Tank Emptying Procedure
Duo/Compact Tank Emptying Procedure 1. Connect cleaning kit pipe to one of the pumps within the tank. To do this, disconnect the pump from the edger at the white connector and insert the connector from the cleaning kit pipe. Disconnect pump from edger pipe Connect cleaning pipe to pump 2. - Page 16 This now becomes your central filtration chamber. 6. Place your new chamber into your Duo/Compact tank and refill with water to max level and add in the conditioner. 7. Remove bag from old central chamber and replace with new bag ordered from Mainline Optical Connections –...
-
Page 17: Spare Parts And Consumables
1. Duo/Compact Filter Bag (socks) GFFR 2. Mainline Duo/Compact central filter GDF01 3. Duo/Compact Outer Collar (blue) GDCOL 4. Duo/Compact inner ring for filter collar GDIR 5. Wrench for Duo/Compact GDWR 6. Tank emptying kit DUO/CK 7. Gloves – please specify size 8. -
Page 18: Trouble Shooting
Ballcock float stuck in down Inside where edger waste pipe feeds position into the Duo, you will find a ballcock float attached to the main pump. If comfortable switch off unit and free the ballcock float from possible... -
Page 19: Daily Sop Checklist
Please wear the gloves provided and safety glasses when using the wrench. To replace the filtration socks and replenish conditioner supplied by Mainline Optical please follow the instructions given on the day of installation or revert to the user manual.
