- Page 1 Id300 Short-Pulse Laser Source Operating guide id300 Short-Pulse Laser Source User Information Operating Guide Version 1.5 Id Quantique Ch. de la Marbrerie, 3 1227 Carouge Switzerland Tel: +41 (0)22 301 83 71 Fax: +41 (0)22 301 83 79 sales@idquantique.com www.idquantique.com...
- Page 2 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of id Quantique SA. Printed in Switzerland.
-
Page 3: Table Of Contents
Preparation for use and Safety ..................4 The front panel at a glance ....................5 The rear panel at a glance ....................6 Operation..........................7 General description......................7 Using the id300 SPLS....................... 7 Maintenance..........................8 Transportation and Storage ....................8 4.1.1 Safety Precautions..................... 8 4.1.2... -
Page 4: Getting Started
Refer to Specifications for a description of such a power supply line. A power cord is supplied with the id300 SPLS. When properly connected to a power supply line, the id300 SPLS can be switched on using the ON/OFF switch on the rear panel. -
Page 5: The Front Panel At A Glance

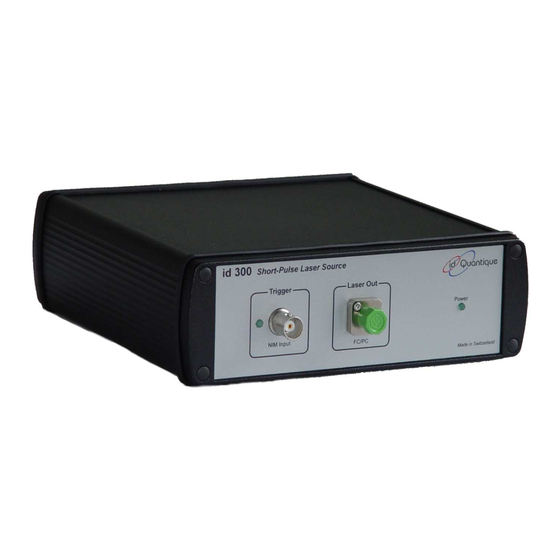

Id300 Short-Pulse Laser Source Operating guide The front panel at a glance Figure 2.1 Front panel Note: Your id300 SPLS may slightly differ from this illustration. Front panel indicators: Power Status LED: On Green Laser Out: FC/PC optical connector Note:... -
Page 6: The Rear Panel At A Glance
Id300 Short-Pulse Laser Source Operating guide The rear panel at a glance Figure 2.2 Rear panel Note: Your id300 SPLS may slightly differ from this illustration. Rear side of the id300... -
Page 7: Operation
The id300 will produce short laser pulses at the repetition rate set by the trigger input. The repetition rate can be varied from 0Hz (DC operation) to 500MHz. Each laser pulse has duration of typically 300 ps. -
Page 8: Maintenance
Installation of replacement parts or modification of the unit must be carried out by id Quantique. There is no service allowed by the customer. The unit is to be returned to id Quantique for any service or repair. Certain components inside the unit – e.g. capacitors – may be charged even if... -
Page 9: Ac Requirements
Id300 Short-Pulse Laser Source Operating guide 4.1.2 AC Requirements The id300 SPLS can operate from any single-phase AC power source between 100 V and 240 V (50/60 Hz). 4.1.3 Power Cable This unit uses an international safety standard three-wire power cable. This cable serves as a ground when connected to an appropriate AC power receptacle. -
Page 10: Cleaning The Fibre Ends
It is recommended to connect before the first use of the detector an optical fibre patch cord to the id300 SPLS optical input port. This patch cord should then be used for all connections of the module to a device under test. In case of inappropriate insertion losses, the end connector of this patch cord can be easily cleaned by the user. -
Page 11: Warranty
Exclusions id Quantique reserves the right to make changes in the design or construction of any of its products at any time without incurring any obligation to make changes whatsoever on units purchased. Accessories, including but not limited to the fuses, pilot lamps and batteries used with id Quantique's products are not covered by this warranty. -
Page 12: Specifications
Id300 Short-Pulse Laser Source Operating guide Specifications Module Dimensions (L x W x H): 185 x 172 x 55 mm Weight: 915 g Power supply line: 100 – 240 VAC, 50 / 60 Hz AC Line voltage selection: Automatic Operating environment: 10°...
