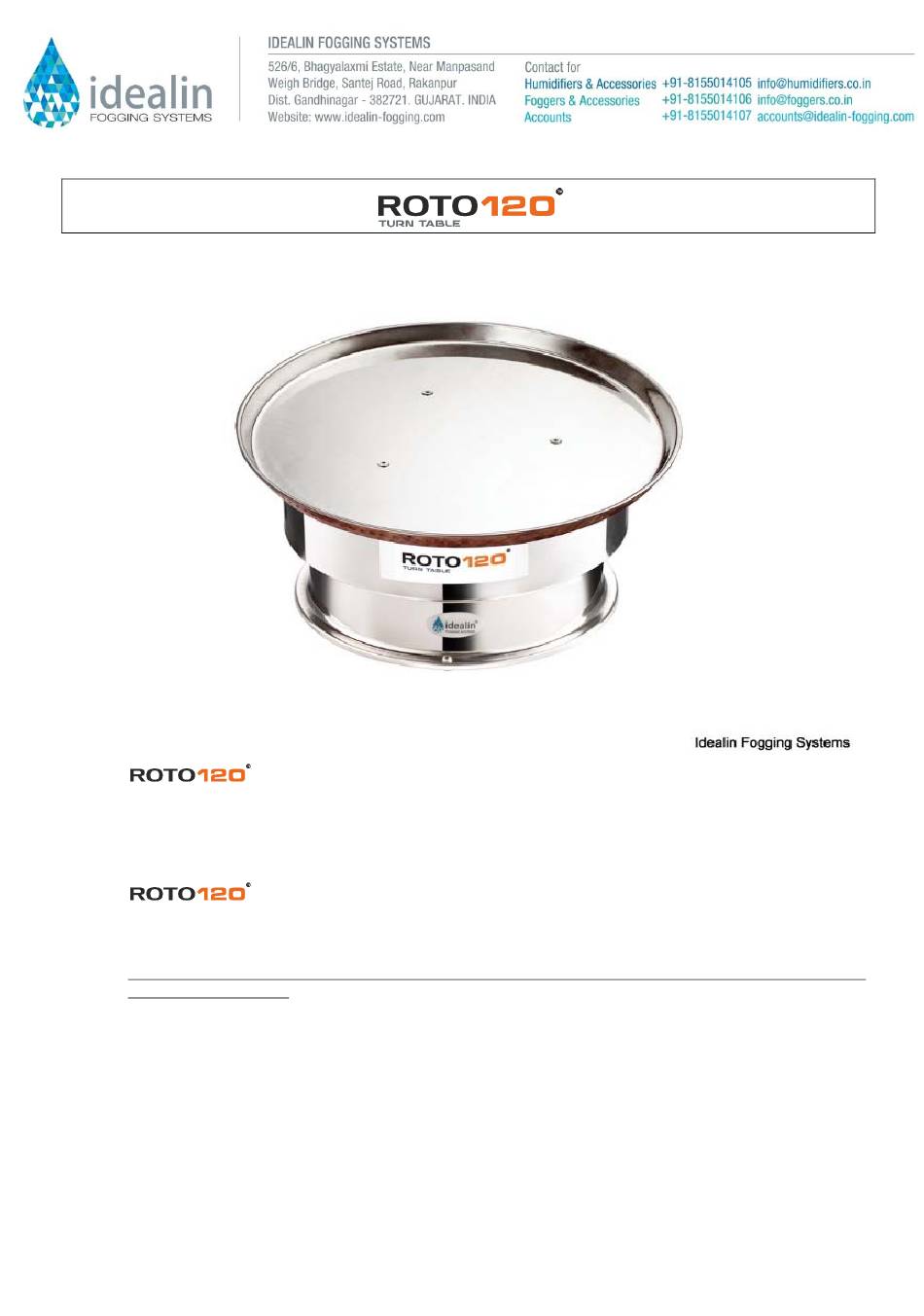

idealin fogging systems ROTO120 Quick Start Manual

FEATURES:

•
operated on a 220 ~ 240 Volt AC, 50 Hz, single phase power supply only. Its purpose is to continuously
oscillate the portable humidifier placed on it @ 120 degrees max.
•
The equipment is shipped in two parts: ROTO-120 base & ROTO-120 Tray (also known as Round Tray).
•
The Roto-120 Tray supplied with the product is to be mounted on the Rotostand shaft and then the
humidifier needs to be simply placed on top of the tray.
•
•
Only 1 (One) humidifier can be oscillated on the product.
•
It is supplied with a plug to directly connect to a 5 amps socket. A socket is also provided on the Roto-120
to connect the humidifier to it.
•
Roto-120 ensures UNIFORM distribution of fog particles in an enclosed area, which is most essential
for humidification jobs.
•
NIL maintenance and trouble free operation.

OPERATION:

•
Place the Roto-120 on a level surface OR install it at a desired height using "STAND L Angle" supplied by
Idealin. Alternatively, use a support base (max. 2 fts. x 2 fts). If using wooden ply for a support base, ensure
that the thickness of wooden ply is adequate to support a weight of around 25 kgs. Generally 10mm to
15mm thickness is sufficient.
•
A shaft (with a cut at the centre) protrudes from the Roto-120. At the same time, the "Round Tray" supplied
with the product is pre-fitted with a rod which has a round opening at the centre. Simply slide the rod over
the shaft of the round tray.
is an oscillating device generally used as an accessory with humidifiers. It should be
can rotate the tray at a max. Angle of 120 degrees (60 degrees each side) only.
04-2009
