Retrofitting Fireye
This document provides instructions for retrofitting
Fireye BurnerLogix controls (Figure 1) to Heatec
HC and HCS heaters. Fireye and BurnerLogix are
trademarks of Fireye, a Kidde Company.
The new Fireye BurnerLogix controls include the
following units:
• Display Module BLV512
• Burner control YB110 with Programmer
Module YP100

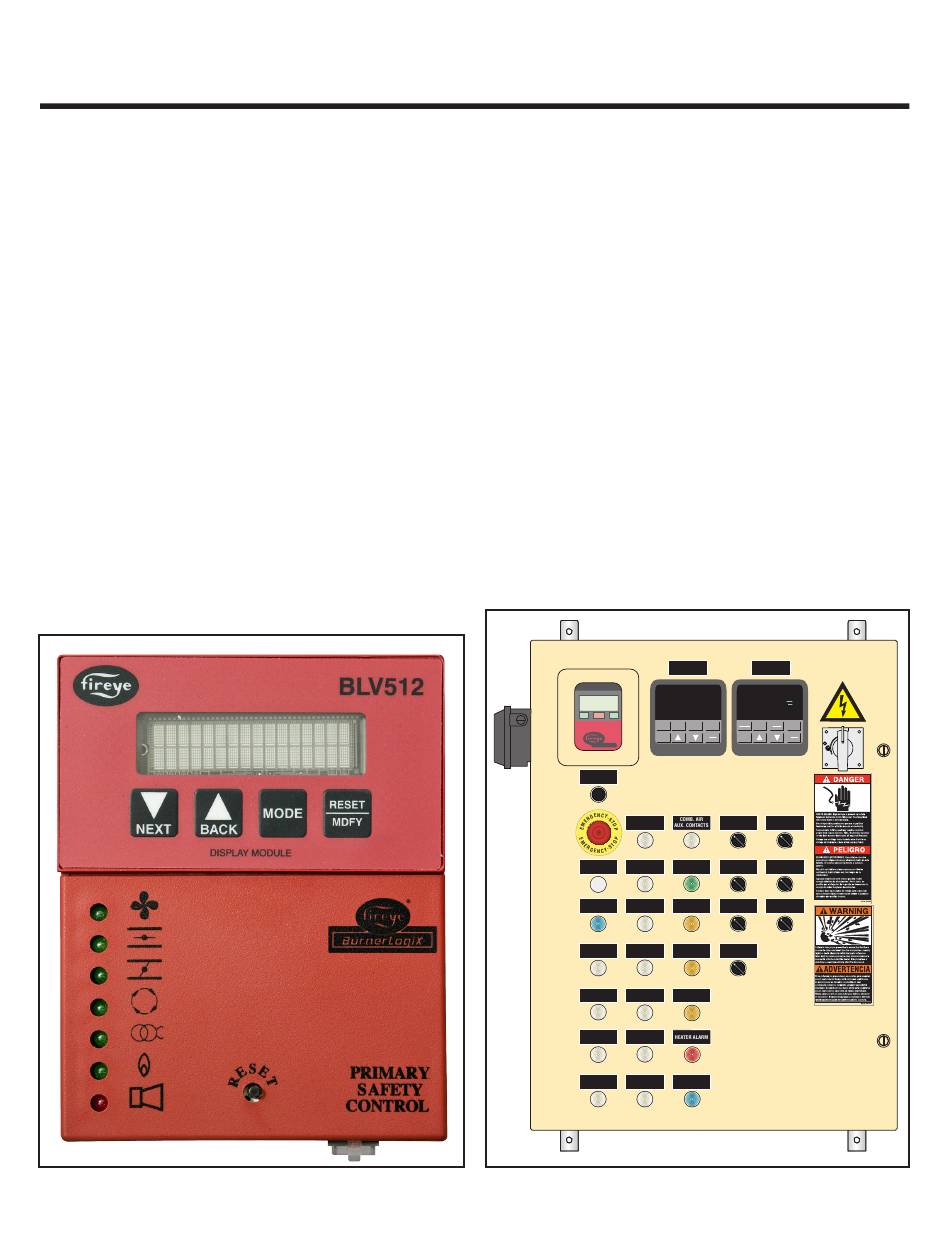

Figure 1 New Fireye Burner Logix controls.
®
on Heatec HC and HCS heaters
TEC-NOTE
BurnerLogix
These new controls replace older Fireye Flame
Monitor E110 used on control panels (Figure 2)
of HC and HCS heaters until recently. The older
controls are being phased out and will be available
only for a limited time.
The new controls provide some advantages over
the older Flame Monitor controls. Consequently,
some owners may want to upgrade to the new
controls even though the older ones are operating
satisfactorily at the present time.
