Guitar Silencer

Instruction Manual

This pedal is:

Table of Contents

Need help?

Do you have a question about the Rocktron Guitar Silencer and is the answer not in the manual?

Questions and answers

Summary of Contents for GHS Corporation Rocktron Guitar Silencer

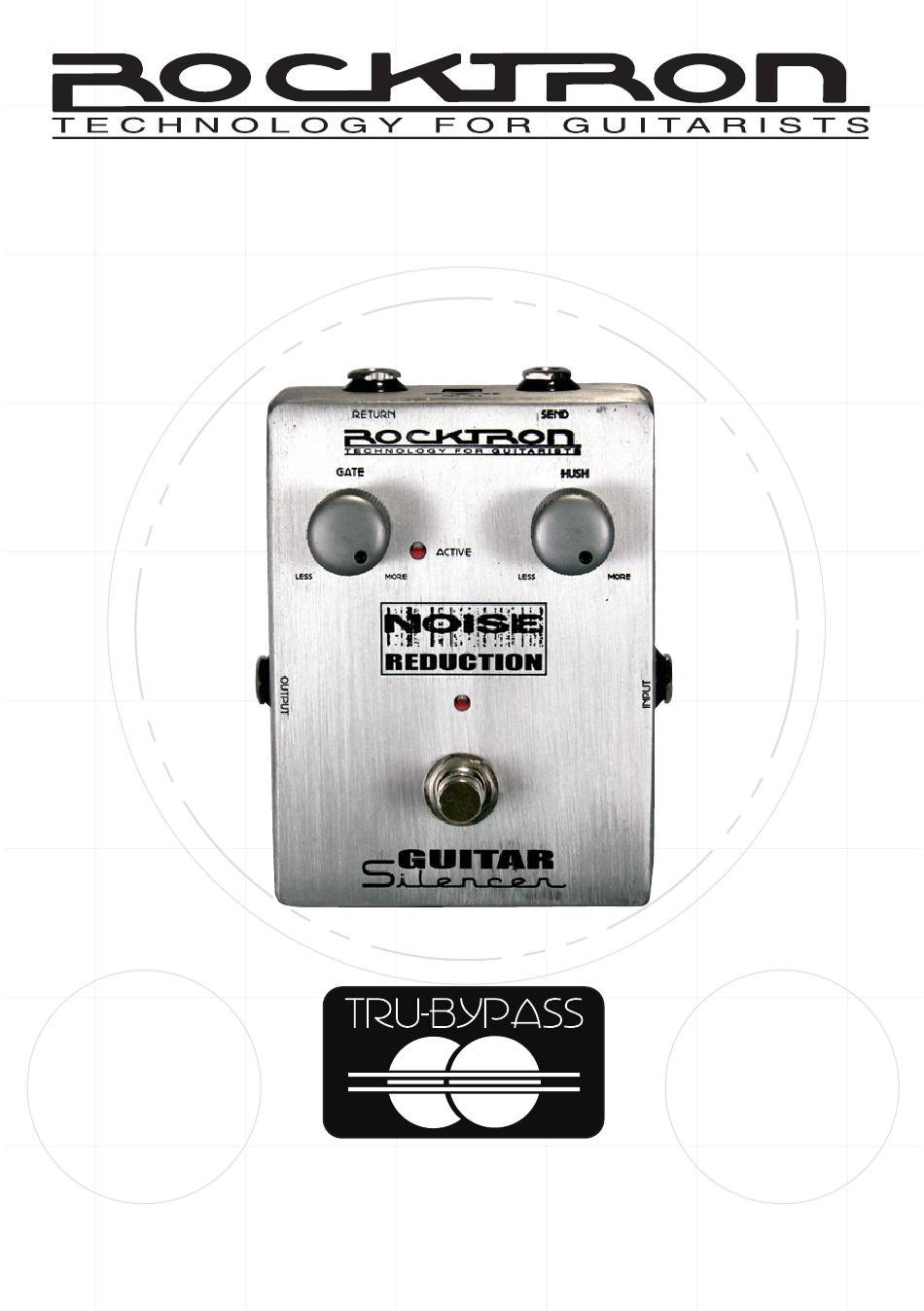

Page 1 Guitar Silencer Instruction Manual This pedal is:...
Page 2 (listed on the Rocktron website (www.rocktron.com). Read all instructions contained in this manual. Keep these instructions Heed all warnings Follow all instructions. Do not use this apparatus near water. Clean with dry cloth Copyright © 2009 GHS Corporation All Rights Reserved.
Page 3 Precautions Refer all service to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
Page 4 (This was first achieved remarkably in metal by Dimebag Darrel of Pantera fame while recording with the original rack mounted Rocktron Guitar Silencer years ago). This new stomp box provides BOTH of these noise reducing methods in one simple pedal that takes a...
Page 5 Introduction continued..: minimum of space on your pedalboard. Part of the Rocktron Boutique Series of stomp boxes this pedal features True Bypass design in a rugged metal chassis. As an incredible bonus, you can add True Bypass to your favorite distortion pedal when adding the Guitar Silencer to your setup! Controls for the Guitar Silencer include GATE, which is the Threshold at which the noise gate portion of the effect...
Page 6 Descriptions...
Page 7 Descriptions continued..GATE Control - This control deteremines the threshold at which the noise gate portion of the effect will clamp to silence. The ACTIVE Led will light when the GATE Threshold has been met. RETURN Jack - Use this jack to return the signal from pedals in the loop.
Page 8 Descriptions continued..ON/OFF Led - This LED shows if the pedal is on or off. When the LED is light the pedal is on. When the LED is not light the pedal is off. INPUT Jack - Using a standard 1/4” guitar cable, plug your guitar into this jack.
Page 9 Typical Connection...
Page 10 Specifications Maximum Input 10dBu Maximum Output 9.6Bu Imput Impedance 1MΩ Output Impedance 100Ω Current Consumption 25mA Power Requirements 9V Alkaline Battery or Rocktron DC OnTap Uni- veral Power Supply (sold seperately). Negative tip. Dimensions 95mm x 122mm x 56mm 3.75” x 4.75” x 2.25” Weight 420g 14.81 oz...
Page 11 How to change the battery: To change the battery, turn the pedal over and remove the 4 screws on the bottom. Remove the back cover. Carefully remove the old battery and replace it with a new 9V Alkaline battery. Replace battery in the same area as the old battery was located.
Page 12 Rocktron - A Division of GHS Corporation 2813 Wilber Ave Battle Creek MI 49037 www.rocktron.com info@rocktron.com tel: 1-269-968-3351 rev. 10-22-14 2014.1...
