Page 1 USER MANUAL F I E L D O N E P A I N T B A L L - 3 4 D e L U C A P L A C E - S U I T E D - S A N R A FA E L - C A 9 4 9 0 1 - 4 1 5 - 3 2 4 - 4 0 5 0 - F I E L D O N E P A I N T B A L L . C O M...
Page 2 This manual will serve as your guide to the Field One Force and should help to maintain a high level of performance with your new marker while also increasing the overall experience of the user. Your Field One Force paintball marker also comes with a Force Quick Start Guide to get you started with your Field One Force marker and provide insight into the basic maintenance and operation of the marker.
Page 3: Table Of Contents
Troubleshooting and FAQ CAUTION: READ AND FOLLOW ALL SAFETY GUIDELINES AND WARNINGS BEFORE HANDLING OR ATTEMPTING ANY WORK ON YOUR FIELD ONE PAINTBALL MARKER. SHOULD YOU BE UNSURE AT ANY POINT, STOP AND GET HELP FROM A FIELD ONE PAINTBALL CERTIFIED TECHNICIAN.

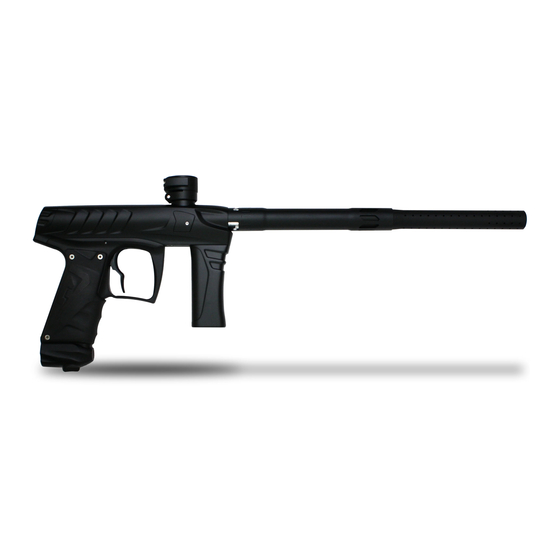

Page 4: Introduction To The Field One Force Marker
Paintball World Cup. In this User’s Manual, you will find information about all of the different components and systems of the Field One Force as well as diagrams and links to videos to help with maintenance and provide a better understanding of how the Field One Force operates. While this manual has all of the information you...
Page 5 • Remove barrel from marker or select barrel bore insert you would like to test. • Drop a paintball into the barrel bore insert. • The paintball should suspend itself at the beginning of the barrel bore insert. Any amount of force to the paintball should free the paintball to move through the barrel.
Page 6 Field One Paintball Warranty. High pressure air systems for paintball use with the capacity of 3000 to 4500 psi and the output pressure of 250psi to 550psi should be used with the Field One Force. If your Air System output pressure exceeds 750psi it may damage the solenoid or other components of your marker.
Page 7 CAUTION: READ AND FOLLOW ALL SAFETY GUIDELINES AND WARNINGS BEFORE HANDLING OR ATTEMPTING ANY WORK ON YOUR FIELD ONE PAINTBALL MARKER. SHOULD YOU BE UNSURE AT ANY POINT, STOP AND GET HELP FROM A FIELD ONE PAINTBALL CERTIFIED TECHNICIAN.
Page 8 • If you have questions about safety or local regulations, contact your local paintball store or field • Always wear paintball approved eye protection and face protection when operating your Field One Force • Always use a barrel blocking safety device with your Field One Force whenever you are not operating your marker •...
Page 9 The grip frame does not need to be removed during normal maintenance of the Field One Force. Keeping the grip frame and the electronics within the grip frame free of moisture and debris is important and can be maintained by removing both sides of the rubber grip panels.
Page 10: Force Electronics And Oled Screen
Force Mainboard comes equipped with a capacitor as a failsafe in case of temporary disconnect between the battery and the electronics in the marker due to vibration or a hard impact with the ground. It is important to keep the Force and the electronic components in the Force free from moisture, paint and debris.
Page 11 Rhino Regulator The Field One Force’s main air supply is regulated by the Rhino Regulator, which is mounted in the top of the ASA and housed within the Force Grip Frame. Once you have connected an air source to the ASA, the air travels through the Rhino Regulator (and is regulated down to about 145-155 psi) and directed to the solenoid and the Force Engine.
Page 12 4C Illuminate Eye System, Eye Covers and Ball Detents The eye system in the breech of the Field One Force is called the 4c Illuminate Eye System. This system uses two sets of break beam eyes to detect whether or not a paintball has settled in the breech and is ready to fire. The upper set of eyes communicates that a ball is moving into the firing position so there is less delay required when the lower set of eyes reads that the paintball has arrived and allows the firing sequence to take place.
Page 13: Force Nucleus Engine
Force Nucleus Engine The Force Nucleus Engine is a Spool Valve type engine that works by moving air from the volume chamber through the bolt tip to propel the paintball through the barrel at consistent velocities. With each shot cycle, the Force solenoid provides a measured amount of air to the engine, moving the ram and bolt forward and back to open and close the different chambers of the Force Nucleus Engine.
Page 14 Force GRIP SHIFT (Dual Position) Foregrip (Battery Compartment) The Force Foregrip is designed to provide 2 different mounting points so the user can choose the foregrip stance or distance that is most comfortable for their playing style. The Force Foregrip position change involves separating the foregrip (also the AA(2) battery compartment) from the reversal plate and then switching the orientation of the Force Foregrip Reversal Plate before reinstalling the foregrip.
Page 15 Force Body The Force Body is the shell that holds the Force together. There are only three o-rings in the force body that seal between both manifolds and the underside of the body. The Jumper board screws into the mainbody and connects to the main board by way of pressure contact pads.
Page 16: Adjusting Your Force Software Settings
OLED interface on the Force grip frame. Your Field One Force will come from the Field One Paintball Factory with the latest program code and the optimal board settings (referred to as “DEFAULT” or “FACTORY DEFAULT”) for the highest marker performance under most conditions. Once board settings have been changed, board settings can be adjusted back to “FACTORY DEFAULT”...
Page 17: Force Board- Adjustable Settings Explained
- This setting will determine the limit on RATE OF FIRE. This setting will not override the FIRE MODE setting if using an uncapped FIRE MODE. UNCAPPED RATE OF FIRE will allow the Force to shoot as fast as the marker will mechanically cycle (EYES OFF) or as fast as the loader can feed paintballs to the marker (EYES ON).
Page 18 GAME TIMER - The Field One Force comes with a game timer built into the Force BLU18 board. The user will be able to set the timer to a specified amount of time and then start the timer with a trigger pull at the beginning of a game or match. To access the TIMER SCREEN before a game or match, press and hold the power button for 1.5 seconds.
Page 19: Field One Force Maintenance Schedule
Your Field One Force marker was designed to require minimal maintenance. However, to keep the Force working at the highest performance level, it is recommended that a regular maintenance schedule be kept. In this section, we will discuss the tools needed to maintain the Force marker and layout a maintenance schedule that will help to keep the Force working at it’s best.
Page 20 Reg Seat Retainer) CAUTION: READ AND FOLLOW ALL SAFETY GUIDELINES AND WARNINGS BEFORE HANDLING OR ATTEMPTING ANY WORK ON YOUR FIELD ONE PAINTBALL MARKER. SHOULD YOU BE UNSURE AT ANY POINT, STOP AND GET HELP FROM A FIELD ONE PAINTBALL CERTIFIED TECHNICIAN.
Page 21 In between Engine Halfs CAUTION: READ AND FOLLOW ALL SAFETY GUIDELINES AND WARNINGS BEFORE HANDLING OR ATTEMPTING ANY WORK ON YOUR FIELD ONE PAINTBALL MARKER. SHOULD YOU BE UNSURE AT ANY POINT, STOP AND GET HELP FROM A FIELD ONE PAINTBALL CERTIFIED TECHNICIAN.
Page 22 CAUTION: READ AND FOLLOW ALL SAFETY GUIDELINES AND WARNINGS BEFORE HANDLING OR ATTEMPTING ANY WORK ON YOUR FIELD ONE PAINTBALL MARKER. SHOULD YOU BE UNSURE AT ANY POINT, STOP AND GET HELP FROM A FIELD ONE PAINTBALL CERTIFIED TECHNICIAN.
Page 23 (fig 10I) CAUTION: READ AND FOLLOW ALL SAFETY GUIDELINES AND WARNINGS BEFORE HANDLING OR ATTEMPTING ANY WORK ON YOUR FIELD ONE PAINTBALL MARKER. SHOULD YOU BE UNSURE AT ANY POINT, STOP AND GET HELP FROM A FIELD ONE PAINTBALL CERTIFIED TECHNICIAN.
Page 24 CAUTION: READ AND FOLLOW ALL SAFETY GUIDELINES AND WARNINGS BEFORE HANDLING OR ATTEMPTING ANY WORK ON YOUR FIELD ONE PAINTBALL MARKER. SHOULD YOU BE UNSURE AT ANY POINT, STOP AND GET HELP FROM A FIELD ONE PAINTBALL CERTIFIED TECHNICIAN.
Page 25 F1 Force to achieve maximum rates of fire while decreasing the chance of breaking paint in the breech. The eye indicator located on the upper portion of the OLED screen (fig 6) will display the status of the 4C-ES. When Your F1 Force is powered ON the 4C-ES system is active by default.
Page 26: Changing Batteries And Power Select
Changing Batteries and Power Select BATTERY - The Force is capable of running on two AA batteries in the fore grip or one Field One LiPo rechargeable battery (optional) located in the grip frame. In order to switch between the two power sources use the toggle switch inside the grip frame on the main-board (fig 2) (access this area by removing the grip panel on the right hand side of the marker).
Page 27: Field One Paintball Warranty
Acculock Lifetime Insert Replacement Program If any of your Field One Paintball Acculock Inserts are damaged for any reason, we’ll replace it with the same or similar insert for as long as you own your kit. Just return your damaged insert to Field One Paintball at the address below with your name, address, contact info and a copy of your purchase receipt or other proof of purchase.
Page 28: Troubleshooting And Faq
Q: Where can I find the User Manual/Technical Manual for this paintball marker? A: The complete Field One FORCE User Manual, as well as video tutorials and the Field One FORCE Quick Start Guide is available online on the Field One Paintball Website. Click or copy and paste this url into your browser search bar to visit the Field One Paintball Support page for more info: https://fieldonepaintball.com/pages/support-1...
Page 29 2) Paintball size to barrel bore sizing 3) Battery power is weak needs and replacement These issues are discussed in the F1 General FAQ section and the Field One Force User Manual you can get there by visiting the link here: https://fieldonepaintball.com/pages/technician-tips-general For consistency issues that are related to the operation of the marker, we will start with the most common (and easiest to fix) and move on to some of the more complicated matters.
Page 30 Q: Where do I ship my marker if I need repairs or require help with warranty work? A: The first thing to do if you are in need of technical support for your Field One Paintball Marker is to visit the Field One Paintball website and see if there is an authorized Field One Certified Tech or Field One Authorized Dealer in your area.
