INSTALLATION AND
INSTALLATION AND
USER MANUAL
USER MANUAL
Thank you for choosing Inverter heat pump
This manual provides you necessary information for optimal
use and maintenance, please read it carefully and keep it for
use and maintenance, please read it carefully and keep it for
subsequent use.
Inverter heat pump .
you necessary information for optimal

Advertisement

Table of Contents
loading

Summary of Contents for Garden PAC InverTech GHD-150-0219

  • Page 1 INSTALLATION AND INSTALLATION AND USER MANUAL USER MANUAL Thank you for choosing Inverter heat pump Inverter heat pump . This manual provides you necessary information for optimal you necessary information for optimal use and maintenance, please read it carefully and keep it for use and maintenance, please read it carefully and keep it for subsequent use.

  • Page 2: Table Of Contents

    Summary For users ………………………………………………………………………………. P.1-P.6 1. General information ....................- 1 - 1.1. Contents ........................- 1 - 1.2. Operating conditions and range ................- 1 - 1.3. Advantages of different modes ................. - 1 - 1.4. Kind reminder ......................- 2 - 2.

  • Page 3: For Users

    For users 1. General information: 1.1. Contents: After unpacking, please check if you have all the following components. 1.2. Operating conditions and range: Items Range Operating range Air temp -7℃～43℃ Temp. setting heating 18℃-35℃ The heat pump will have ideal performance in the operation range Air 15 ℃～...

  • Page 4: Kind Reminder

    For users 1.4. Kind reminder: This heat pump has Power-off memory function. When the power is recovered, the heat pump will restart automatically. 1.4.1. The heat pump can only be used to heat the pool water. It can NEVER be used to heat other flammable or turbid liquid.
  • Page 5 For users 1.4.6. If any abnormal circumstances occurred, e.g.: abnormal noises, smells, smokes and leakage of electricity, switch off the main power immediately and contact your local dealer. Don’t try to repair the heat pump by yourselves. 1.4.7. The main power switch should be out of the reach of Children. 1.4.8.

  • Page 6: Operations

    For users 2. Operations 2.1. Notice before using ① For longer service life, please ensure water pump on before heat pump on, and water pump off after heat pump off. ② Ensure no water leakage on piping system, then unlock screen and press power on heat pump.

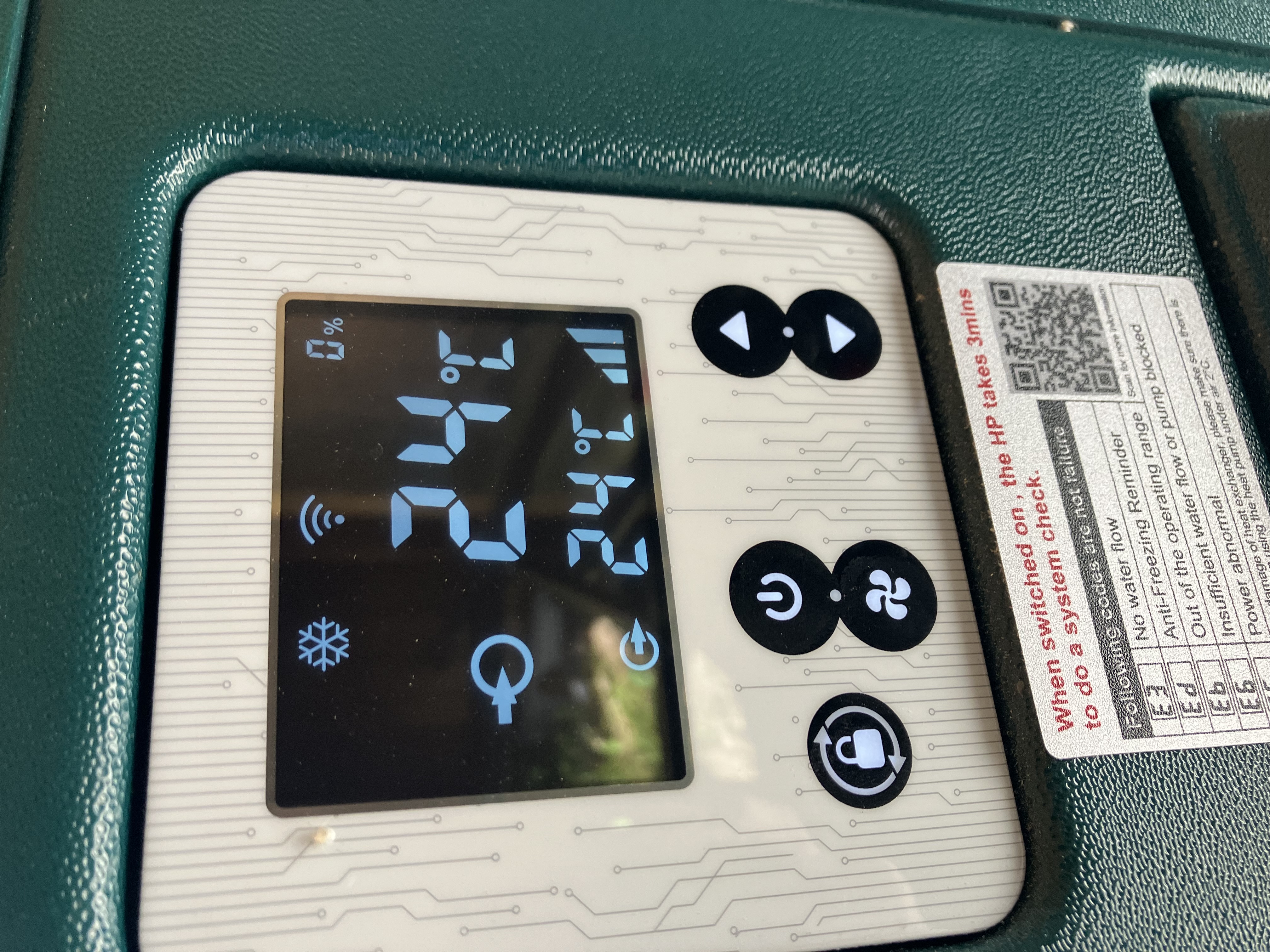

  • Page 7 For users c. Press for 3 seconds to lock screen and it will be dark ② Screen unlock: a. Press for 3 seconds to unlock screen and it will be lit up. b. Only after screen is unlocked, any other buttons can be functioned. Water inlet temperature Smart/Silence...

  • Page 8: Daily Maintenance And Winterizing

    For users 4.Defrosting a. Auto Defrosting: When heat pump is defrosting, will be flashing. After defrosting, will stop flashing. b. Compulsory Defrosting: When heat pump is heating, press together for 5 seconds to start compulsory defrosting, and will be flashing. After defrosting, will stop flashing.

  • Page 9: Technical Specification

    For users 3. Technical specification GHD-150- GHD-150- GHD-150- GHD-150- GHD-150- GHD-150- GHD-150- GHD-150- GHD-150- Model 0219 0220 0221 0222 0223 0224 0225 0226 0227 Advised pool volume (m 20~40 25~45 30~55 35~65 40~75 50~95 65~120 65~120 90~169 Working air temp (℃) -7~43 Performance Condition: Air 26°C, Water 26°C, Humidity 80% Heating capacity (kW)

  • Page 10: For Installers And Professionals

    For installers and professionals 1. Transportation 1.1. When storing or moving the heat pump, the heat pump should be at the upright position. 1.2. When moving the heat pump, do not lift the water union since the titanium heat exchanger inside the heat pump will be damaged. 2.

  • Page 11: Installation Instructions

    For installers and professionals 2.2. Installation instruction 2.2.1. Location and size The heat pump should be installed in a place with good ventilation * Minimum distance filter water processor water switch - 9 -...
  • Page 12 For installers and professionals Size(mm) Name Model GHD-150-0219 GHD-150-0220 GHD-150-0221 GHD-150-0222 GHD-150-0223 GHD-150-0224 GHD-150-0225 1092 GHD-150-0226 1092 GHD-150-0227 1161 Above data is subject to modification without notice. ※ 2.2.2. Heat pump installation. ① The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid;...
  • Page 13 For installers and professionals 1. Wiring diagram A. For power supply: 230V 50Hz Distribution Box(Customer prepare) Swimming Pool Heat Pump Wiring Board Power Cord Power Supply Fuse 230V 50Hz Breaker Earthing B. For power supply: 400V 50Hz Distribution Box(Customer prepare) Swimming Pool Heat Pump Wiring Board Power Cord Power Supply...

  • Page 14: Trial After Installation

    For installers and professionals 2.3. Trial after installation Please check all the wirings carefully before turning on the heat pump. 2.3.1．Inspection before use ① Check installation of the whole heat pump and the pipe connections according to the pipe connecting drawing; Check the electric wiring according to the electrical wiring diagram and earthing ②...

  • Page 15: Trouble Shooting For Common Faults

    For installers and professionals Important: Unscrew the water union of inlet pipe to let the water flow out. When the water in machine freezes in winter season, the titanium heat exchanger may be damaged. 3. Trouble shooting for common faults Failure Reason Solution...

  • Page 16: Failure Code

    For installers and professionals 4. Failure code Display Failure description High pressure protection Low pressure protection No water protection (not failure) 3 phase sequence protection (three phase only) Not failure, power supply excesses operation range Excessive temp difference between inlet and outlet water(Insufficient water flow protection) Water outlet temp too high or too low protection High exhaust temp protection...

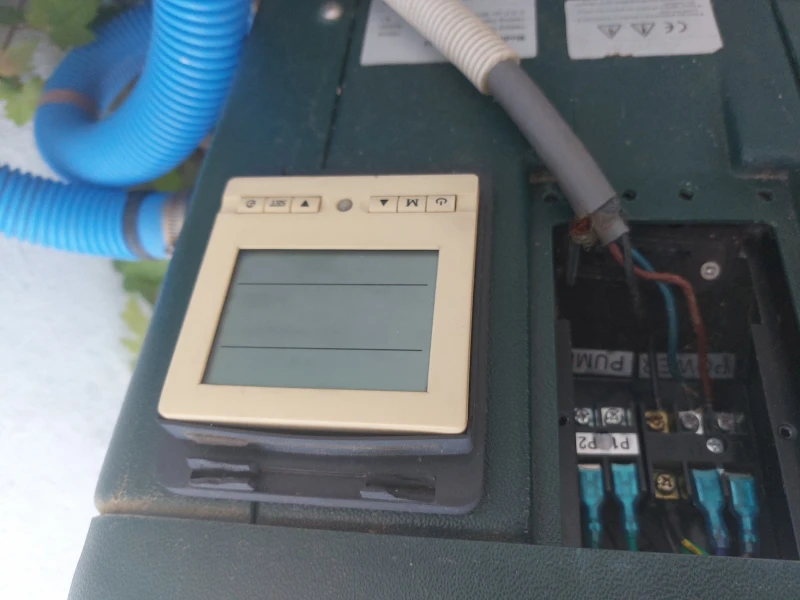

  • Page 17: Appendix 1: Heating Priority Wiring Diagram

    For installers and professionals Appendix 1: Heating priority wiring diagram (Optional) For water pump: Voltage 230V, Capacity ≤500W For water pump: Voltage 230V, Capacity ＞500W Breaker/fuse Breaker/fuse (Customer prepare) (Customer prepare) Power Cord Power Cord Earthing Earthing Power Supply Power Supply 230V~/50Hz 230V~/50Hz Water Pump...
  • Page 18 For installers and professionals For water pump: Voltage 400V Breaker/fuse (Customer prepare) Power Cord Power Supply 400V~/50Hz Earthing Water Pump Water Pump Breaker/fuse Contactor (Customer prepare) coil voltage: 400V Power Supply 400V~/50Hz Earthing Parallel connection with filtration clock A: Water pump timer B: Water pump wiring of Heat Pump Note: The installer should connect A parallel with B (as above picture).
  • Page 19 For installers and professionals Note: - 17 -...
  • Page 20 Version:A40ID...
