Use of the Masterlink MICC with the Mass Combi
This sheet describes the installation, initial settings and daily use of the Masterlink MICC remote
1
control panel in combination with the Mass Combi. Please review the entire manual of both the
Mass Combi and the Masterlink MICC for additional features and connections and to ensure best
performance and years of trouble-free service.
NOTES
2
The Mass Combi can also be operated without any remote control panel connected;
When using the Masterlink MICC panel, it is not possible to use the APC remote panel.
WARNING
3
During installation the Safety Guidelines & Measures are applicable at all times. See chapter 2 of
the manual of the Mass Combi and the Masterlink MICC.
INSTALLATION
4
1
Install the Mass Combi as described in the manual of the Mass Combi;
2
Install the Masterlink MICC as described in the manual of the Masterlink MICC, but do not connect
the modular communication cables;
3

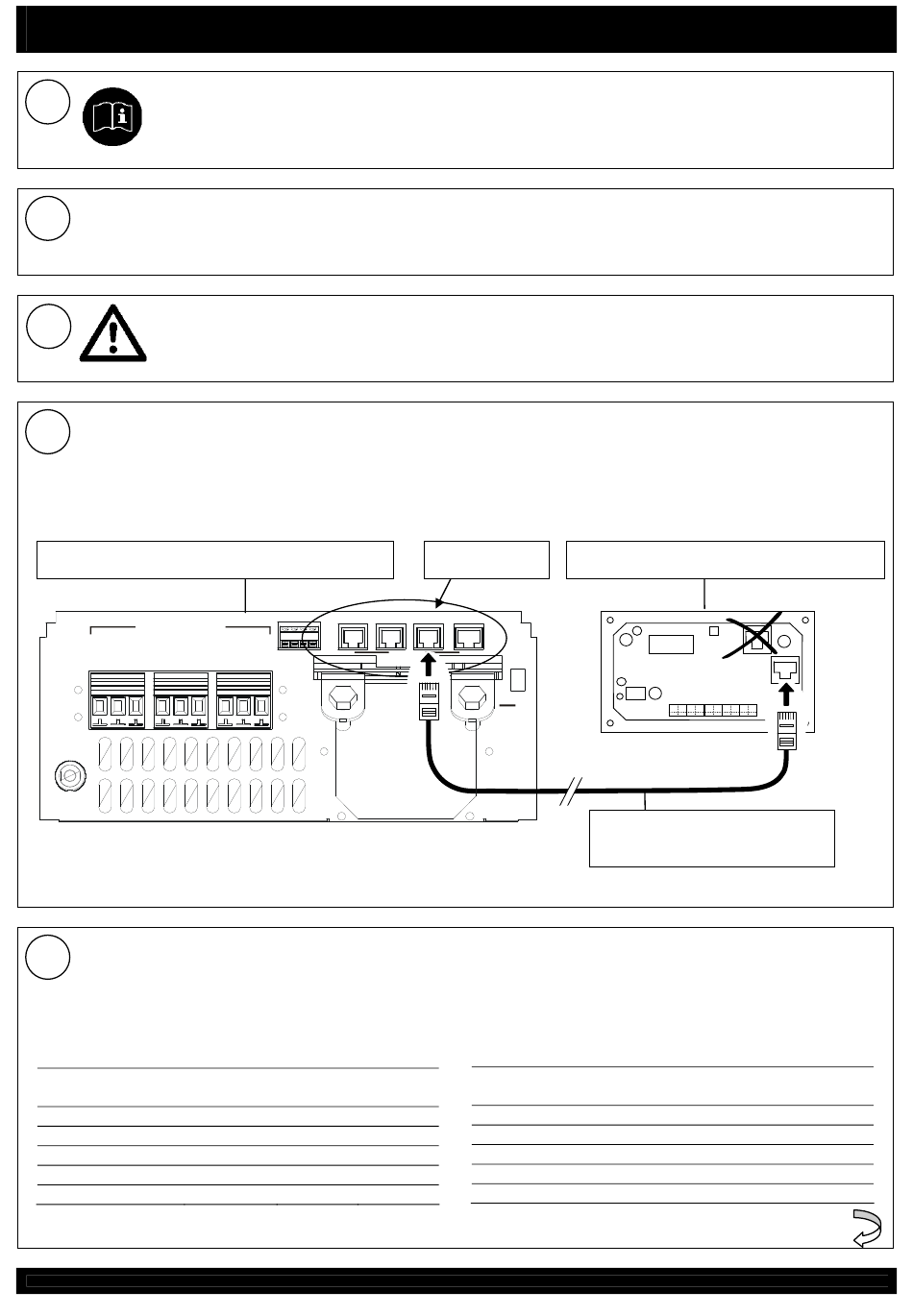

Connect the Masterlink MICC to the Mass Combi as indicated below, using the modular
communication cable.
Connection compartment of the Mass Combi
AC CONNECTIONS
INPUT
OUTPUT
GEN / SHORE
POWER
50A MAX
50A MAX
L
N
PE
L
N
PE
25A
SHORT BREAK
PUSH TO RESET
NOTE: If two Mass Combi's are installed in parallel, the
Masterlink MICC must be connected to the QRS232 port of the
Mass Combi that is configured as "Master".
INITIAL DIP-SWITCH SETTINGS AT THE MASS COMBI
5
Power sharing level
The Power Sharing Level can be adjusted by means of the Masterlink MICC (see step 7). The absolute maximum
level for this setting can be fixed by means of DIP-switches B SW1, SW2 and SW3.
See sections 3.3.3 and 6.2.1 of the user's manual of the Mass Combi for more information.
230V Models
DIP switch B
SW1
25 Amps.
OFF
16 Amps.
ON
10 Amps.
OFF
6 Amps.
ON
Disabled
---
Mastervolt International B.V,
P.O.Box 22947, NL-1100 DK Amsterdam, The Netherlands.
1 - 2 - 3 - 4
REMOTE
TEMP . SENS
OUTPUT
SHORT BREAK
25A MAX
POS
L
N
PE
+
SW2
SW3
OFF
OFF
OFF
OFF
ON
OFF
ON
OFF
---
ON
QRS232 port
QRS232
MASTERBUS
BATTERY
NEG
+5A
120V Models
DIP switch B
50 Amps.
30 Amps.
25 Amps.
15 Amps.
10 Amps.
Tel.: +31-20-3422100
Email: info@mastervolt.com
Rear view of the Masterlink MICC panel
RJ12 modular communication
cable cross wired
SW1
SW2
---
---
OFF
OFF
ON
OFF
OFF
ON
ON
ON
Please turn page
Web: www.mastervolt.com v1.2 071206EN
SW3
ON
OFF
OFF
OFF
OFF
