Corbin Russwin DC6210 Series Installation Instructions

A11 - Non-Hold Open Arm
STANDARD APPLICATION
WITH 615F58 BRACKET
IMPORTANT:
Size of Door & Door Closer
Type
of
Interior
Installation
' "
2 4
' "
2 6
Parallel
' "
3 0
Arm
' "
3 6
' "
4 0
' "
4 6
**NOTE: These forces are for standard templating with bearing type hinges and do not account for pressure differentials and draft. Half size
closers DC6410 are capable of being adjusted to next higher setting.
80-9360-6003-152 Rev. 12/06
DC6210 Series
Multi-Sized 1 thru 6
DC6410 Series
Half-Size 1 thru 6
DEEP REVEAL APPLICATION WITH
M103 OPTION(615F59 CLAMP KIT)
An improperly installed or incorrectly adjusted door closer may cause
damage or personal injury;
To avoid personal injury,
Door closers must be securely fastened to a properly reinforced door and frame
with fasteners provided.
Door closers with a HOLD OPEN ARM (A12) are not permitted to be installed in fire
door assemblies.
Door and frame must be specifically templated for 85°, 90°, 95°, 100°, 105° or
110° door swing.
Exterior
Exterior
In -swinging
Out -swinging
' "
2 6
' "
3 0
' "
*3 6
' "
*4 0
*DC6410 Series Recommended
Installation Instructions Installation Instructions
and will void product warranty.
DO NOT DISASSEMBLE THIS DOOR CLOSER BODY.
**Max.
Opening
Recommended
Force
Closer Size
lbs/f
8
1
14
2
16
3
22
4
24
5
26
6

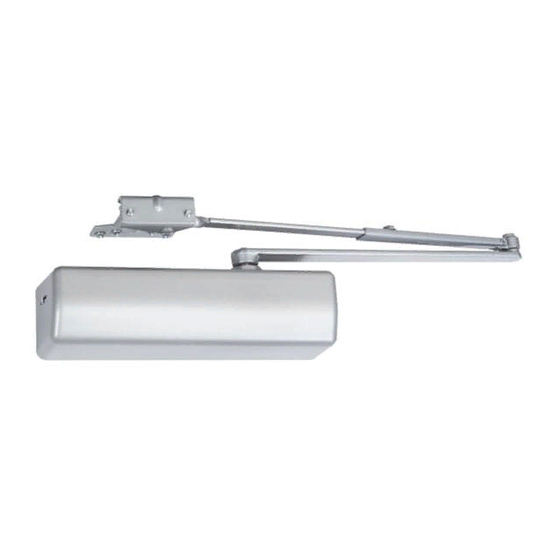

Universal Door Closers
with Heavy Duty
Spring Stop Parallel Arms
A12 - Hold Open Arm
FLUSH PARTITION APPLICATION WITH
M104 OPTION (615F60 BRACKET)
TO DETERMINE
HAND OF
YOUR DOOR:
RHR
LEFT
HAND
DOOR
property
LHR
RIGHT
HAND
DOOR
