Glastar

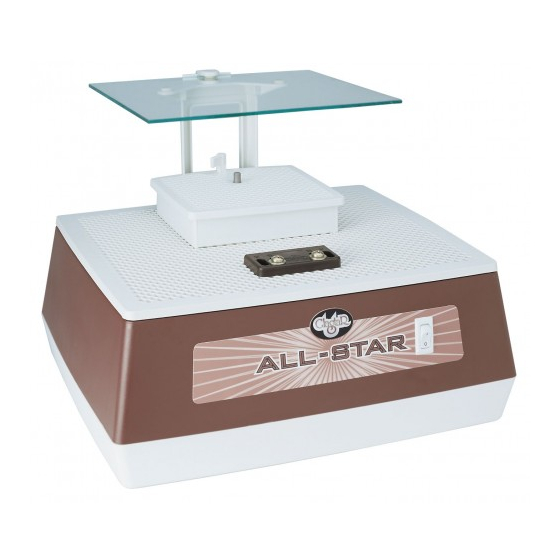

G-8 All-Star Grinder
The power cord of this machine is equipped with a three-prong (grounding) plug which mates with a standard
three-prong (grounding) wall receptacle to minimize the possibility of electric shock hazard. Where a standard
two-prong wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have
it replaced with a properly grounded three-prong wall receptacle. DO NOT, UNDER ANY CIRCUMSTANCES,
CUT OR REMOVE THE THIRD (GROUNDING) PRONG FROM THE POWER CORD.
Always unplug your machine before cleaning or making any repairs-(NOTE: We strongly recommend that you
return the unit to the factory for repair.) USE ONLY IDENTICAL REPLACEMENT PARTS TO REPAIR THIS
MACHINE.
EYE PROTECTION
When operating the grinder, always protect yourself against eye injuries
from flying glass. Install the glass eye shield that is furnished with this
To print out this manual: click the PRINT icon at the top
of your browser window or select print from the file menu.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS
FOR PERSONAL SAFETY THIS MACHINE MUST BE PROPERLY GROUNDED
SAVE THESE INSTRUCTIONS
OUTSIDE USA (818) 341-0301 · INSIDE USA (800) 423-5635
FAX (818) 998-2078 · WEBSITE www.glastar.com
ALL-STAR GRINDER
G-8 MANUAL
EMAIL:
info@glastar.com
Advertisement
Table of Contents
Related Manuals for Glastar All-Star G-8
Summary of Contents for Glastar All-Star G-8
- Page 1 USE ONLY IDENTICAL REPLACEMENT PARTS TO REPAIR THIS MACHINE. SAVE THESE INSTRUCTIONS OUTSIDE USA (818) 341-0301 · INSIDE USA (800) 423-5635 FAX (818) 998-2078 · WEBSITE www.glastar.com EMAIL: info@glastar.com EYE PROTECTION When operating the grinder, always protect yourself against eye injuries...
- Page 2 machine (see instructions below). The eye shield is preferable to glasses because it eliminates glass chips flying toward the face. VENTILATION Openings in the grinder back and bottom are provided for ventilation. To insure reliable operation and to protect the grinder from overheating, these openings must not be blocked or covered. Do not place grinder near or over a radiator or heating vent.
- Page 3 DIAMOND GRINDING HEADS The diamond cutting surface of the head is 5/8' (15.875 mm) high. Glastar has installed the head so that the full 5/8' (15.875 mm) of diamond extends above the work surface. If all the glass you grind is 1/8' (3.175 mm) thick or less, you will only use the lower one-fifth of the cutting surface.
- Page 4 The extra-fast grinding head: If you are using your G8 for heavy production, you may obtain a 60 grit 1' (25.4 mm) diamond head. It is more expensive than the standard head, but it grinds much faster. The 1/8' (3.175 mm) head: It is used in place of the 1/4' (6.35 mm) head for very tight inside curves. It may also be used to drill holes.
- Page 5 If you have any problem with your GLASTAR GRINDER call the GLASTAR TOLL FREE NUMBER for an authorization number. Then pack the machine well and return it post-paid to GLASTAR. We will repair your grinder as rapidly as possible and return it to you post-paid.
