Instruction Manual

[For iPod, iPhone and iPad User]

Table of Contents

Need help?

Do you have a question about the BLE Alarm Cube and is the answer not in the manual?

Questions and answers

Summary of Contents for Electronics Tomorrow BLE Alarm Cube

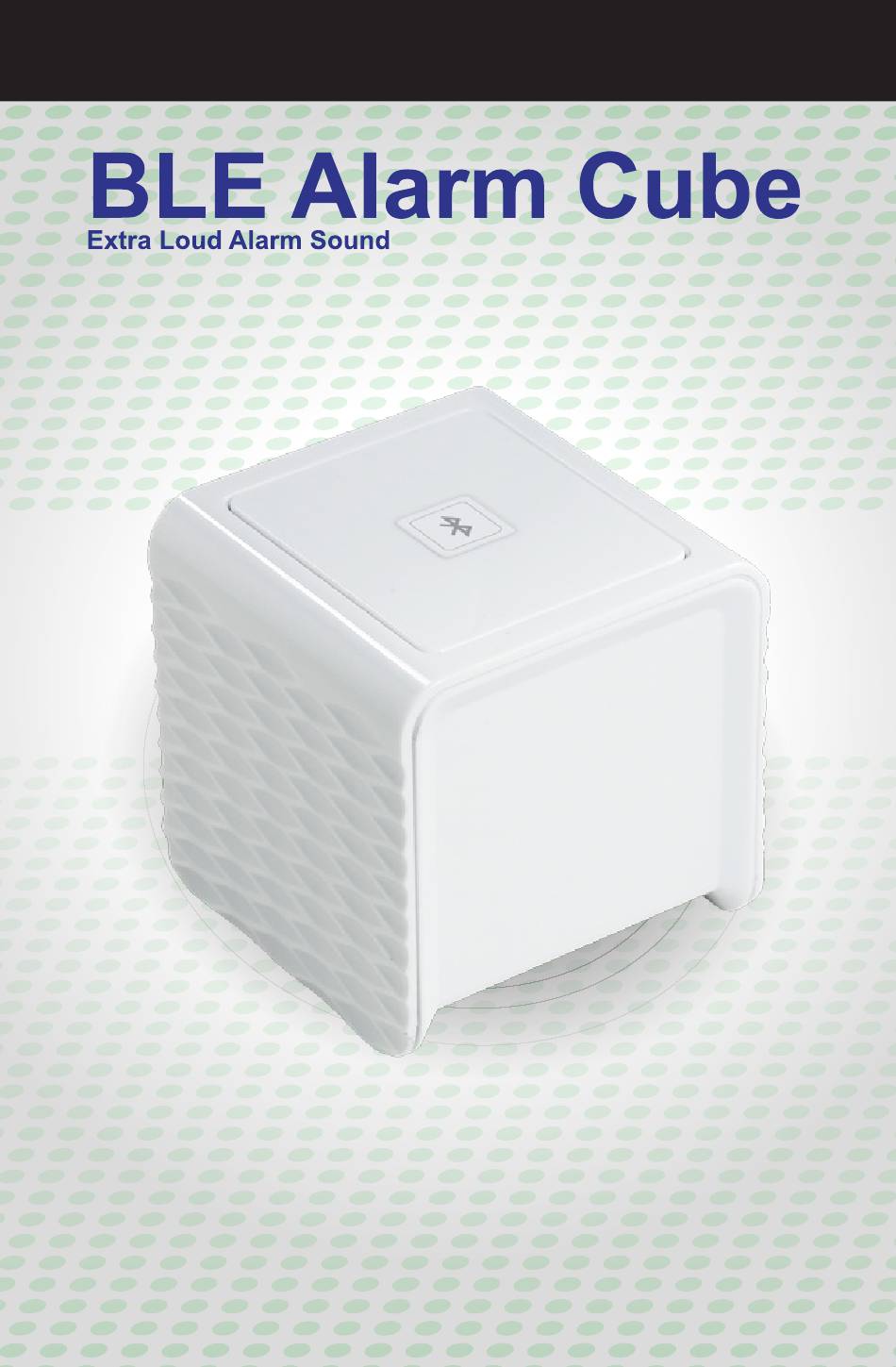

Page 1 Instruction Manual [For iPod, iPhone and iPad User]...
Page 2: Main Unit
Location of Control 1. Snooze button / LED indicator 2. Alarm 3. Pair 4. Reset 5. Battery Compartment 6. Battery door FCC ID: PEQA440110813 Electronics Tomorrow Ltd. Model No: A440 DC 3V 2 X 1.5V - - - MADE IN CHINA...
Page 3 Features Thank you for purchasing the Alarm Cube. This product is designed as a Alarm Cube by working with your iPad, iPhone, iPod or other iOS devices. - Support iOS version 7 or above; - Support Bluetooth version 4.0. - Set wake up buzzer alarm with snooze function, up to 10 alarms.
Page 4: Getting Started
Getting started Install battery 1.1 Open the battery compartment. 1.2 Insert 2 x AA batteries in polarity (+) and (-) as indicated. 1.3 Close the battery compartment. Install BleAlarm App on your idevice. 2.1 Access app store and search for BleAlarm ALARM 2.2 Select and install BleAlarm App on your idevice.
Page 5 Pairing the Alarm Cube 3. Pair the Alarm Cube with BleAlarm app. 3.1 Before running the BleAlarm app, make sure the Bluetooth is turned ON at your i-device. 3.2 After you tap the app icon , the ‘Nearby Devices’ ALARM screen appears.
Page 6 Pairing the Alarm Cube New Alarm Cube 3.5 The new Alarm Cube will 3.3 Tap “ Pair New Device” be displayed on App and to search for nearby is ready for pairing. Tap devices. the "New Alarm Cube" will start the pairing and 3.4 Press and hold the [PAIR] connection process.
Page 7 Pairing the Alarm Cube Alarm Cube Alarm Cube 3.6 After the connection is made, the following information will be synchronized: Current time and date ii) Alarms & timer setting iii) Unit battery level 3.7 When the Alarm Cube is paired with one i-device, other i-devices cannot pair with it again.
Page 8 Rename the Alarm Cube 4. Rename the device. Tap the device name (default is “Alarm Cube”) at the top of the screen to edit the Alarm Cube device name. Alarm Cube...
Page 9: Battery Status Indicator
Battery status indicator 5. Battery status indicator It indicates the battery level of your Alarm Cube device. While the battery level drops below 20%, the battery icon is in red status and a low battery warning is popped up for battery replacement remainder. Above 60% Between 20% ~ 60%...
Page 10: Setting The Alarm Time
Setting the alarm time 6. Setting the alarm time 6.1 Tap [New Alarm] to create a new alarm or tap the existing alarm to modify. Alarm Cube 6.2 The alarm setting screen appears. You can edit and adjust different items on this screen, which include: Alarm Name: Tap to edit you preferred name to this alarm.
Page 11 Setting the alarm time v) Alarm volume level: Tap to select the alarm sound volume level (three options: Low, Med and High). 6.3 Complete the alarm setting. Tap [Done] to save the alarm setting and go back to main screen. Tap [Cancel] to restore to the original alarm setting and go back to main screen.
Page 12: Snooze Operation
Snooze operation 7. Using the SNOOZE function 7.1 When the alarm sounds, press the [Snooze] button to stop alarm and the snooze will repeat three time every 5 minutes. 7.2 “Maximum Snooze” and “Snooze Duration” default value can be adjusted in the preference screen according to user own preference.
Page 13: To Turn Off The Alarm
To turn off the alarm 8. To disable the alarm Alarm Cube 8.1 When the alarm sounds, press the [Snooze] button once or press [Alarm] to disable the alarm. 8.2 The alarm will sound for 1 minute and stop automatically. If Snooze Enabled setting is ON, the alarm will repeat every 5 minutes.
Page 14: Setting The Timer
Setting the Timer 9. To set the timer Tap timer of main screen and to go into timer screen. Alarm Cube 9.1 You can edit and adjust items below on this screen. Timer period: Turn the roller to adjust the timer period. ii) Sound pattern: Tap to select the tone pattern (5 options plus one random pattern available).
Page 15 Setting the timer 9.2 Using the Timer In the Home screen, you can tap “Start” under Timer to start counting. Alarm Cube Alarm Cube Then you can tap “Stop” to stop the current timer and “Start” to re-continue the timer again. The timer can be reset by tapping the [Reset].
Page 16 Delete the Alarm Cube record 10. Delete the Alarm Cube record. Alarm Cube Alarm Cube You can tap the Nearby Devices screen to Cube enter the Known Devices page. By tapping “Edit” and then the , you can select “Delete” to delete the Alarm Cube record on the current idevice.
Page 17 Preference 11) Preference setting Tap the to enter the Preference screen. You can edit and adjust the following items on this screen. 11.1 Snooze Enabled: Tap to select ON/OFF to enable/disable the Snooze functionality. If 'Snooze Enabled' is ON, you will have two more options, which are: Maximum Snoozes: The maximum number of times to repeat the snooze function, which can be set to...
Page 18 Preference 11.2 Alarm Sound Duration: The alarm duration, which can be set to values from 1 to 15 minutes. 11.3 Auto DST update: It will adjust Daylight Saving Time (DST) automatically based on your idevice time zone setting. The alarm clock will be automatically one hour ahead of Standard Time in summer time and will be back to the normal Standard Time when back to winter time, according to your idevice’s time zone.
Page 19 Reset the Vibration Alarm 12. Reset the Alarm Cube If the Alarm Cube is not working properly, press RESET button with a pointed object, the LED flashes twice in (purple) color. Then the LED will flash once per 6 seconds in red color. After reset, all data in the Alarm Alarm Cube Cube is deleted.
Page 20: Vibration Alarm
Vibration Alarm unit space buzzer...
Page 21 Disposal of Your Old Product Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
Page 22 0 1 8 - 1 4 0 0 7 7...
