FAZER 767 BASIC Manual

Manual 767

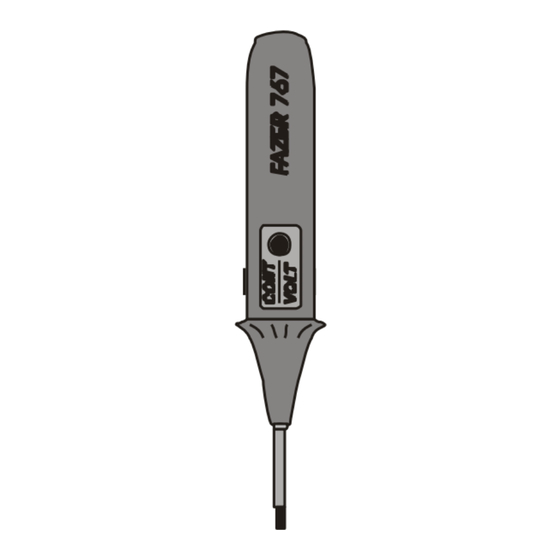

Battery cover
the VOLT contact
Visual indicator
the CONT contact
The Measurement pin
1 Multi-function Unipolar Tester for Electric Installations
2 General description
FAZER 767 BASIC is intended for performing basic tests of 220V/380V electric installations, car installations
and other electric installations. With Fazer 767 you can also check the operations of electrical devices. As for
electronics, Fazer 767 allows, among other things, to detect 0/1 and check resistors, capacitors, diodes and
transistors for malfunction. The device does not have a power off switch. Fazer consumes power only during
the measurement. Precise, carefully developed Fazer's electronic circuitry ensures very low power
consumption. Alkaline batteries LR44 allow to perform more than 10000 measurements. Fazer cannot be
dismantled.
3 Rules for correct disposal of used equipment
1. The sign shown to left means that you should not place used
equipment in a trash bin, together with usual home and commercial waste products.
2. Elements used to manufacture this device should be recycled under the system of selective
collection of electric and electronics equipment (in accordance with the Directive
WEEE2002/96/WE).
3. To dispose of used equipment you should return it to the vendor or deliver to the electric equipment
collection point. Device's weight <40g.
4 Sales package:
FAZER 767 BASIC with batteries, a detailed user manual with applications, disposable packaging.
5 Correct operations
- protect the device against humidity higher than 90% and the temperature above 60
- do not hit the device against hard objects and do not separate elements of the device's housing;
- do not the measurement pint as a lever;
- the hardened screwdriver is intended for screws not thicker than 4 mm.
6 24 months warranty
The manufacturer guarantees failure-free operations of the device. The warranty is valid for 24 months from
the purchase date and for 30 months from the production date. The manufacturer's warranty shall only be
respected if the device is used in accordance with correct operation recommendations. The warranty does not
cover batteries and effects of the battery damage.
(Purchase date, stamp and signature of the seller)
7 Declaration of Conformity
Fazer 767 is classified in PKWiU (Polish Classification of Products and Services) under the number 33.20.43-
59.00.
Fazer 767 has been designed in accordance with the standard PN-EN 6101-1 and complies with the
provisions of the Directive 73/23/EEC dated 19 February 1972 as amended by 93/68/EEC. This Directive
applies to safety of devices up to 1,000V.
