DISPLAY ONE Presentation Podium Assembly Instructions

(4) 30" Long Horizontal Bar (with rings)
(4) 13 1/4" Long Horizontal Bar (with rings)
assembly instructions

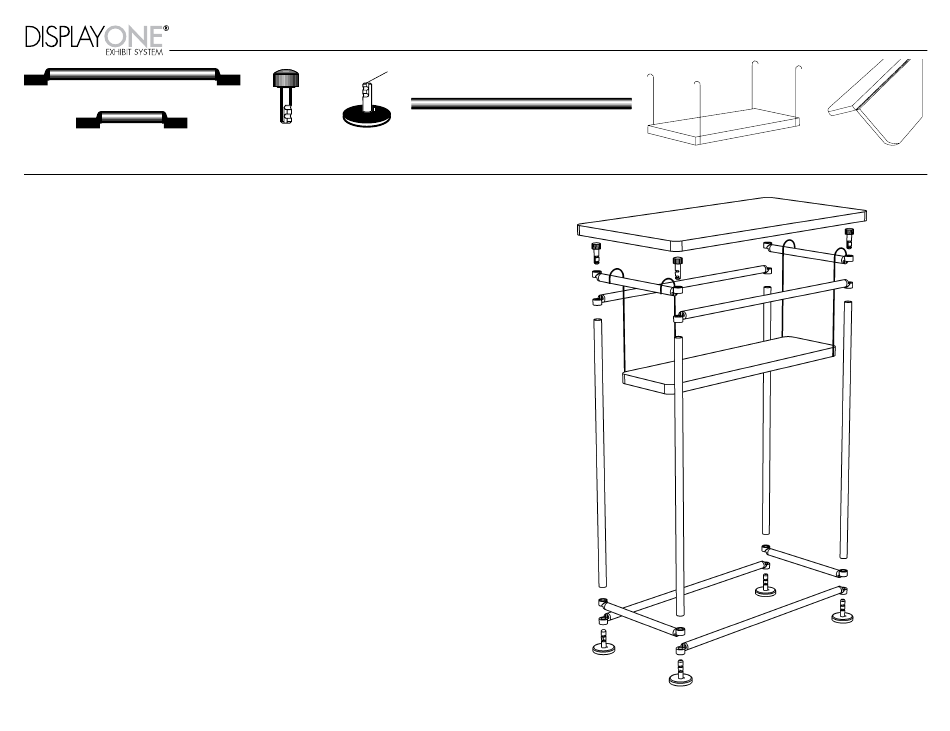

Brief Description: The podium/counter has three fabric sides, an open back, a folding counter
top and one hanging shelf. Finished size is 36" wide, 42" high and 19" deep.
1. Place four round feet on the floor.
2. Place one long horizontal bar through the bottom hem of the front fabric panel and place
plastic ends (rings facing down) over front feet studs so that the small pin on the foot fits
into the small holds on the rings.
3. Place another long horizontal bar (without fabric) over back feet in the same manner.
4. Place two short horizontal bars through bottom hems of side fabric panels and place ends
(rings facing up) over studs so that the rings of long and short bars "nest. "
5. Install the four 37" tall upright tubes onto helix studs and turn gently until the inner pin slides
down through the groove in the foot stud. When tube is seated all the way down, twist and
tighten uprights.
6. Place horizontal bars through the top hems of the fabric panels and position on top of
uprights. Have helix bolts ready to slide down through plastic rings and into top of uprights.
This may seem slightly tricky but is quite simple after you've done it once. If positioned
properly, the fabric panels should be fairly tight.
7 . Tighten helix bolts. Make sure all connections are tight (e.g. 4 helix bolts and 4 helix studs).
Make sure entire unit is "square. "
8. Hang shelf unit inside from top horizontal bars, near front.
9. Place folding counter top over unit so that the 4 helix bolt tops fit snugly into the counter top.
Helix Stud
(4) Helix Bolt
(4) Round Foot
CONSORT DISPLAY GROUP • 2129 PORTAGE STREET • KALAMAZOO, MI 49001
PH: 800.525.6424 • FAX: 888.880.6341 • www.consort.com • info@consort.com

presentation podium assembly instructions

(4) 37" Long Upright Tubes
(1) 9.5"x 32"x 1" Shelf with Hooks (1) 19"x 36"x 1" Folding Top
DO-ASB-P
