Page 1: Malå Mira Hdr

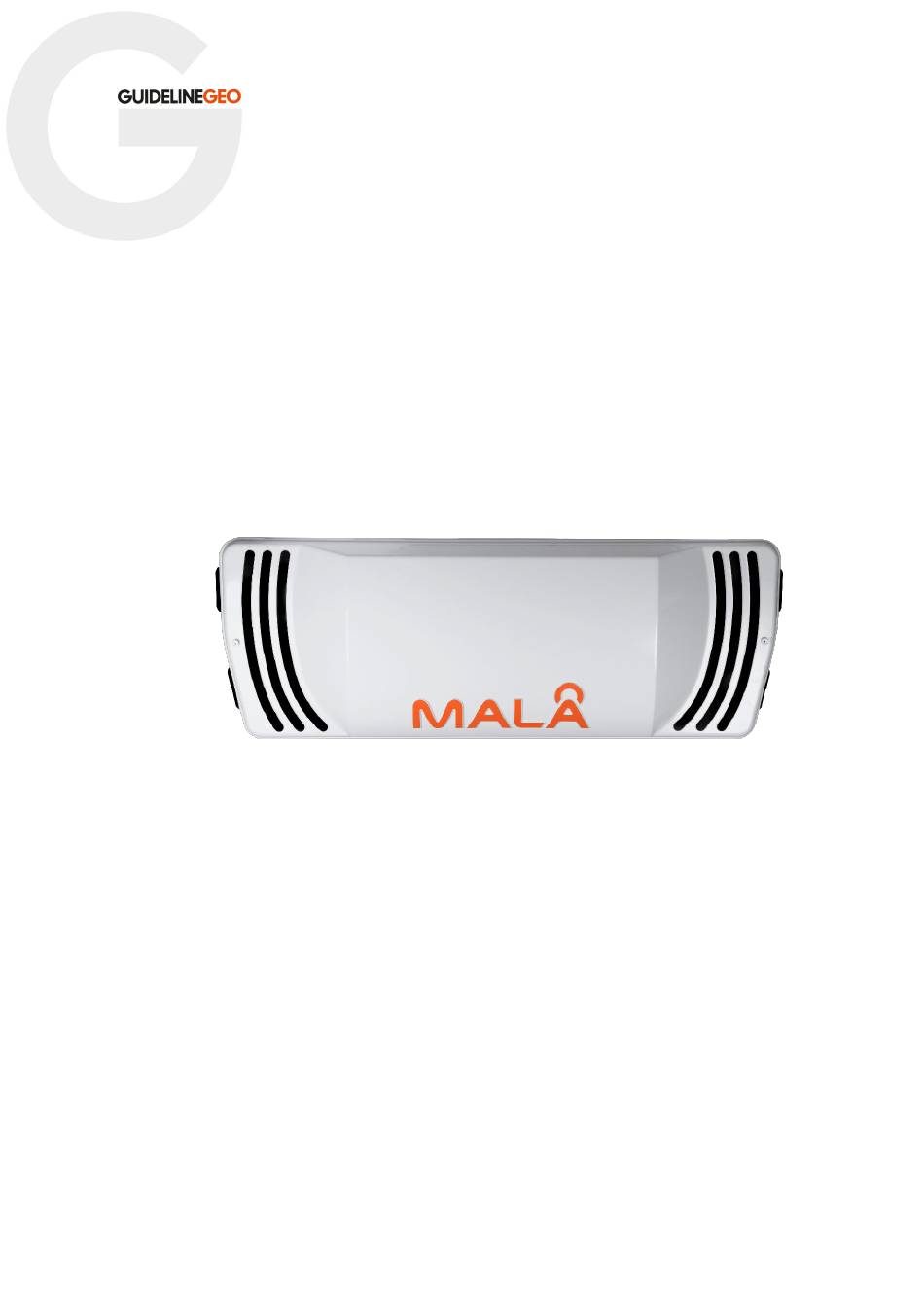

MALÅ MIRA HDR User Guide... -
Page 2: Our Thanks
Our Thanks... Thank you for choosing Guideline Geo and MALÅ as your Ground Penetrating Radar solution provider. The very core of our corporate philosophy is to provide our users with the very best products, support and services. Our development team is committed to providing you with the most technologically advanced and easy-to-use GPR products with the capability to meet your needs for efficiency and productivity now, and into the future. - Page 3 Guideline Geo shall not be liable for any loss or damage arising from the use of any information in this document, or any error or omission in such information, or any incorrect use of the product.
-
Page 4: Table Of Contents
Table of Contents MALÅ MIRA HDR..................1 User Guide ....................1 Our Thanks ....................2 Table of Contents ..................4 Preface ..................... 5 About this Manual ....................5 Additional Resources ..................... 5 Feedback ....................... 5 Safety and Compliance User Notices ............6 ETSI EN 302 066-1 (European Telecommunication Standards Institute) .... -
Page 5: Preface
Preface About this Manual This manual is written for the end user of the product and explains how to set up and configure the product, as well as providing detailed instruction on its use. Additional Resources GPR Training www.guidelinegeo.com/support-service-advice-training/ GPR Case Studies www.guidelinegeo.com/solutions/case-stories/ GPR Downloads www.guidelinegeo.com/support-service-advice-training/resource-center/... -
Page 6: Safety And Compliance User Notices
Safety and Compliance User Notices This GPR-device is certified according to FCC, subpart 15, IC RSS-220 and ETSI EN 302 066-1&2. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 7: French Translations
Radiation Exposure Statement To comply with ISED RF exposure compliance requirements, a separation distance of at least 20cm should be maintained between the EUT and all persons during normal operation Pour se conformer aux exigences de conformité d'exposition ISDE RF, une distance de séparation d'au moins 20 cm doit être maintenue entre l'EST et toutes les personnes pendant le fonctionnement normal. -
Page 8: About Mira Hdr
About MIRA HDR MALÅ MIRA HDR is a multi-channel antenna array for large scale 3D GPR measurements together with MIRAsoft HDR, the data acquisition software. The MIRA HDR system enables any measurement combination between the individual receiver and transmitter antennas used in the array;... -
Page 9: Unpack. Inspect. Register
File any claim for shipping damage with the carrier immediately after discovery of the damage and before the equipment is put into use. Any claims for missing equipment or parts should be filed with Guideline Geo within fourteen (14) business days from the receipt of the equipment. Repacking and Shipping The Guideline Geo packing kit is specially designed for shipping MALÅ... -
Page 10: Overview Mira Hdr
Overview MIRA HDR In short, the MIRA HDR system comprises the following parts: • HDR antennas; separate transmitter (Tx) and receiver (Rx) antennas with a central frequency of 500MHz. • MIRA antenna box; special antenna box for deployment of the MIRA system. The ‘standard’... -
Page 11: System Components
System components Antennas and antenna box Antennas The MIRA HDR system is designed to handle shielded separable antennas only, no other antennas can be used with the MIRA HDR system. The MALÅ HDR antennas are designed and built to very tight tolerances to achieve a ‘near-identical’ response (signature) from each channel. -
Page 12: Antenna Box
Antenna box The antenna box comes in one standard version, with 22 channels. This means 11 transmitters and 12 receivers placed in two rows within the antenna box. Tx on top and Rx on bottom. Each antenna element has its own secured slot and is connected via communication cables to the Blockmaster. -
Page 13: Data Acquisition Software
A connector panel can be found on the rear of the antenna box. Here power, GPS, Ethernet etc. are connected. Also see System set up section. The System diode blinks while the MIRA HDR system is booting; it becomes constant once the system is ready to connect to MIRAsoft HDR. -
Page 14: Positioning
GPS option, so that the MIRAsoft HDR data acquisition software can record it and assign it correctly to the measured GPR swaths. The GPS antenna can be connected to Guideline Geo carrier solutions or can be mounted on the survey vehicle: Note: The placement and recording of the GPS antenna or Total Station prism’s position must... -
Page 15: Assembly Of Gps Support
Some points to consider: • If working in an environment with a number of trees, high buildings or other infrastructure that might disturb the communication with GPS satellites, a Total Station is preferred. In these types of environments, it can also be hard to define lines and point features with the GPS. -
Page 16: Power
On the hand-pushed solution, the battery is placed on the rear side of the antenna. If using the Guideline Geo trailer the battery has a ready-made shelf. With other carrier solutions the battery can be placed in the vehicle. -
Page 17: Accessories
• Attachment for laptop mounting. If the carrier is part of the purchase, these details will be taken care of by Guideline Geo. However, the client may find it more suitable to source the vehicle locally, in which case they must arrange the mounting details themselves. -
Page 18: Encoders
• If the system is used front loaded, an encoder kit is available to mount on the survey vehicle • If the Guideline Geo trailer is used, the encoder is built in Vehicle mounted encoder and the 300mm measuring wheel... -
Page 19: System Set Up (How To Connect)
2. Connect your GPS. We provide two 12V output connectors on the system’s connector panel. Contact Guideline Geo for adapters for your brand of GPS. Note: The 12V connectors are secured with a 2A e-fuse. The fuse will be restored after a power- cycle.
