- Page 1 +49 (0)79 72 93 10-0 hagstrasse 10 . D-74417 gschwend messtechnik sales@eth-messtechnik.de Operator manual DRVL English...
- Page 2 messtechnik gmbh © ETH messtechnik gmbh This operator manual is not a quality agree- ment or durability guarantee as set out in Section 443 of the German Civil Code. Specification changes, typing and printing errors reserved.
-
Page 3: Table Of Contents
8. Pin assignment ......................14 8.1 DRVL ........................14 8.2 DRVL-n .......................15 8.3 DRVL-w.......................16 9. Measurement outputs ....................17 10. Re-calibration ......................17 11. Disposal ........................17 12. Specifications ......................18 12.1 Electrical Specifications DRVL ................18 12.2 Mechanical Dimensions DRVL ................19 12.3 Technical Specifications DRVL ................20... -
Page 4: Important Instructions

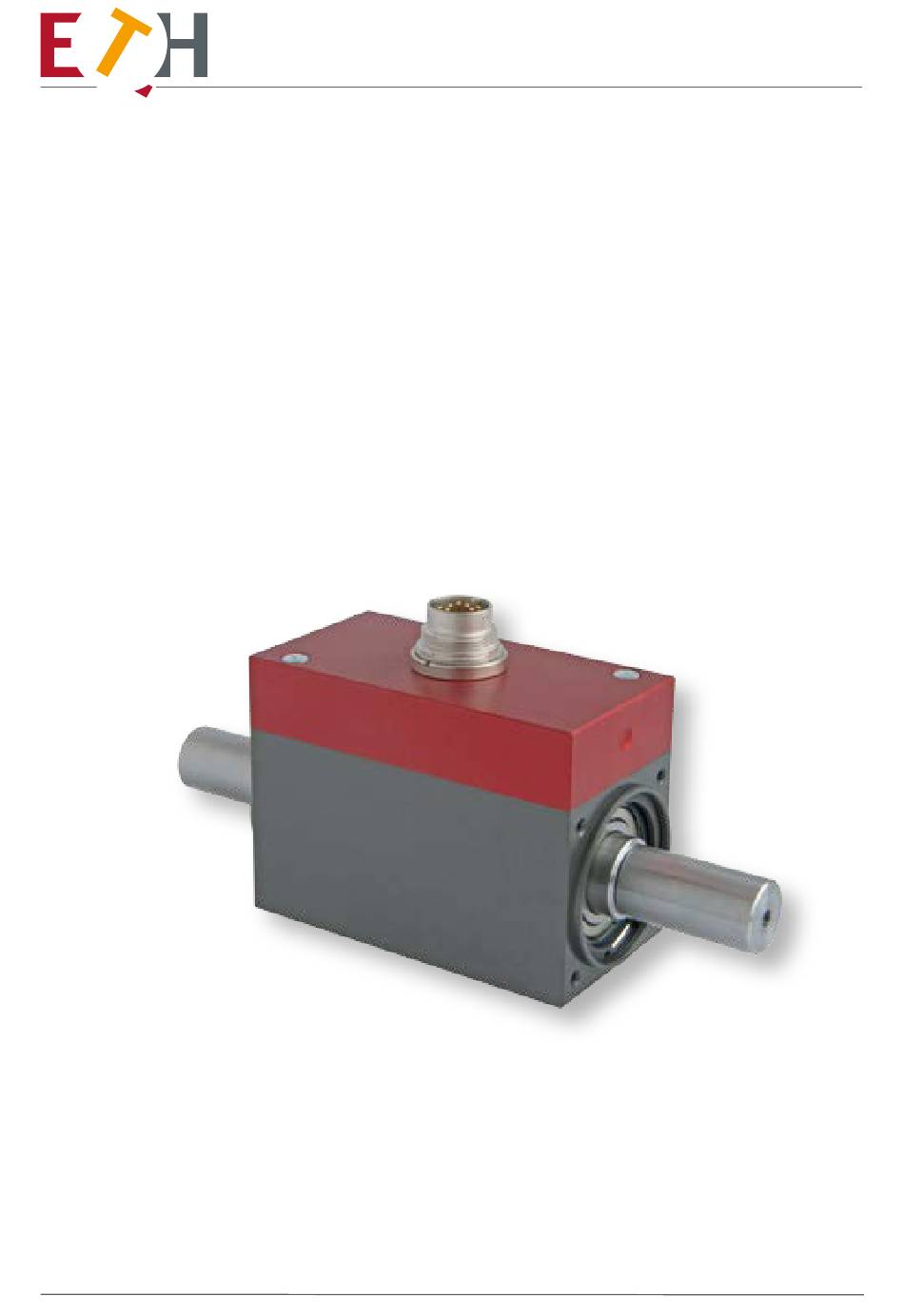

Important instructions: The model DRVL torque transducer can be deployed as a component in a test bench, for example. The installation position of the drive and transducer sides should be taken into account in applications where mass is critical. -
Page 5: Preliminaries
The torque transducers are made of different shaft materials to suit the loads. Torque transducers measure torque in the unit Nm. Please refer to the relevant data sheet for the current technical specifications. www.eth-messtechnik.de 2. Applicability and instructions for use The torque transducers measure clockwise and counterclockwise loads. In case of clockwise load, the output signal is positive. -
Page 6: Description And Functionality Of The Device
messtechnik gmbh 3. Description and functionality of the device 3.1 Torsional shaft The torsional shaft is constructed with special aluminum or hardened carbon steel to suit the full-scale value. Strain gauges attached to the torsional shaft sense the shaft torsion, which is proportional to the torque and is within its elastic range. -
Page 7: Disturbances And Their Compensation
messtechnik gmbh 3.4 Disturbances and their compensation Flexural, axial and radial forces are disturbances and, hence, should be avoided. We recommend the use of clamping hub couplings. They must be selected to suit the operating conditions. Shielded cables should be used for the electrical connections. The electroma- gnetic compatibility (EMC)of the torque transducers are tested for compliance with EN 55011:2011. -
Page 8: Conditions On Location
messtechnik gmbh 4. Conditions on location 4.1 Ambient temperature For best results, the device must be operated within the nominal temperature range. The best operating conditions are constant and, if necessary, slowly changing temperatures. The specified temperature errors apply if the tempera- ture does not change faster than 5K/h. -
Page 9: Mechanical Installation
messtechnik gmbh 5. Mechanical installation 5.1 Precautions to be taken when assembling the transducer • Handle the transducer carefully. • Do not overload the transducer, even temporarily when assembling the couplings, for instance. If possible before assembling the transducer, we recommend you connect it first electrically and monitor the torque with the analyzer. -
Page 10: The Measurement-Chain Setup
messtechnik gmbh 6. The measurement-chain setup A measurement chain is required for the transducer to take measurements. The measurement chain consists of: • a torque transducer • a connection cable • a power supply and display unit A power supply is required to supply the transducer with the necessary opera- ting voltage. -
Page 11: Electrical Connection
messtechnik gmbh 7. Electrical connection The electrical connection of a torque transducer with a 12-pin connector... -
Page 12: Wiring Instructions
messtechnik gmbh 7.1 Wiring instructions Electrical and magnetic fields often disturb the measurement circuit. These dis- turbances typically emanate from power lines running parallel to the test cables, but they can also come from nearby contactors or electric motors. Interference or noise voltages can be injected into the circuit as well electrically, especially if the measurement chain is grounded at many points. -
Page 13: Pin Assignment For The Connectors
messtechnik gmbh 7.3 Pin assignment for the connectors The pin assignments for the connectors are detailed on the following pages. The transducer outputs the measurements as an electrically isolated signal. The ground potentials should not be directly bridged at the transducer, as this could lead to incorrect measurements, depending on the length of the cable to the power supply and display unit. -
Page 14: Pin Assignment
8. Pin assignment 8.1 DRVL The torque transducer with no option (A) Connector: 12-pin Measurement cable with free ends model AK12.3F or AK12.3DF (double shielded) AK12.3 F AK12.3 DF Connection Color Color Frequency output black black Voltage output... -
Page 15: Drvl-N
8.2 DRVL-n The torque transducer with speed option (n) Connector: 12-pin Measurement cable with free ends model AK12.3F or AK12.3DF (double shielded) AK12.3 F AK12.3 DF Connection Color Color Frequency output black black Voltage output brown brown Output ground... -
Page 16: Drvl-W
8.3 DRVL-w The torque transducer with angle option (w) Connector: 12-pin Measurement cable with free ends model AK12.3F or AK12.3DF (double shielded) AK12.3 F AK12.3 DF Connection Color Color Frequency output black black Angle output track B = 90°... -
Page 17: Measurement Outputs
As soon as you have packaged the transducer, send us an e-mail at sales@eth-messtechnik.de. We will then instruct our parcel service to pick it We are sorry, but we cannot accept any goods sent to us unannounced and... -
Page 18: Specifications
Nonlinearity/max. measurement error (of full scale) DRVL: 0,15 % (optional 0,1 % ) 0,15 % (optional 0,1 % ) DRVL- I to DRVL- V I : 0,1 % (optional 0,05 % ) 0,1 % (optional 0,05% ) Hysteresis 0,1 %... -
Page 19: Mechanical Dimensions Drvl
12.2 Mechanical Dimensions DRVL measuring side Model DRVL DRVL-I DRVL-Ib DRVL-II DRVL-III DRVL-IV DRVL-IV DVFL-VI Torque Ranges: 0,02 0,05 2000 10.000 (Nm) 0,05 1000 3000 15.000 1300 4000 20.000 1500 5000 Dimensions: (other ranges upon request; General tolerances DIN 2768-m) -
Page 20: Technical Specifications Drvl
12.3 Technical Specifications DRVL Torque range Spring constant C Mass moment of Rated axial load Rated radial load Model (Nm) (Nm/rad) inertia J (g x cm²) (N) * (N) * 0,02 DRVL 0,05 0,05 DRVL-I DRVL-Ib 1320 1200... - Page 21 messtechnik gmbh...
- Page 22 messtechnik gmbh...
- Page 23 messtechnik gmbh...
- Page 24 10 D-74417 gschwend tel. +49 (0) 79 72 / 93 10 - 0 fax +49 (0) 79 72 / 93 10 - 50 sales@eth-messtechnik.de www.eth-messtechnik.de 181_DRVL-bedienungsanleitung-englisch | 16. November 2017...
