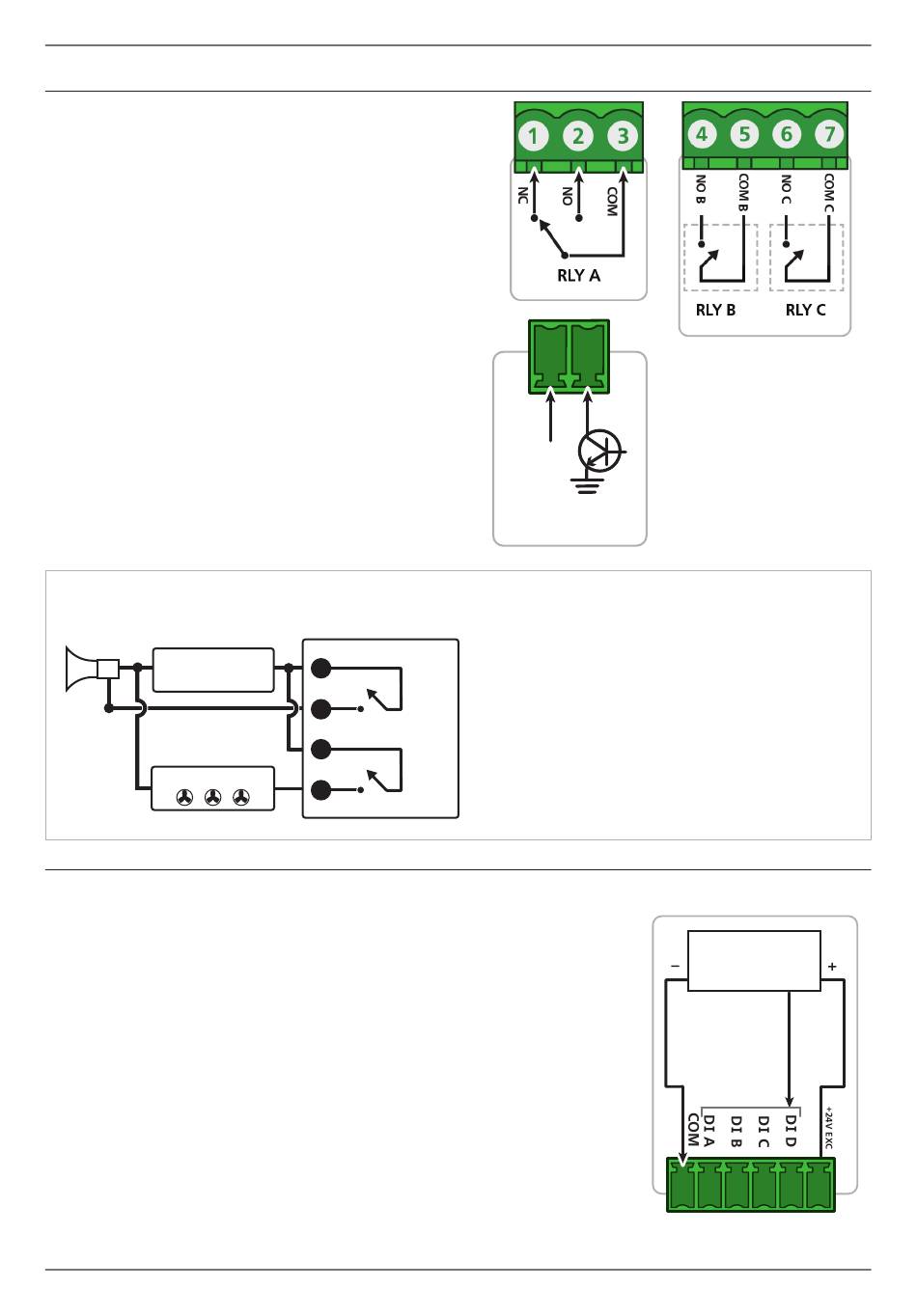

7.3 - Relay Output (A, B & C)
See 7.1A & 7.1B
Relays A (15A 250V AC or 15A 30V DC) and
B & C (3A 250V AC or 3A 30V DC) should be
wired as shown.
Connection example for relay outputs (A & B)
Power Supply
Cooling

7.4 - Digital Input (G)

See 7.1G
The Nimbus IoT has four Digital Inputs (A–D) which can be con-
figured and scaled using Define WorkBench from the "Digital
Inputs" tab, as per the list below:
Status (active/inactive - can be read by a SCADA system as
›
a general digital input)
› Counter (up to 10KHz, or 100Hz Debounced)
› Frequency (up to 10KHz)
› Flow count (up to 10KHz)
› Flow rate (up to 10KHz)
› RPM (up to 10KHz)
NIM2-MAN-19V01 (1104)
7
COM C
6
NO C
5
COM B
4
NO B
22
8 9
+24V
Open collector
(500mA Max)
Note 1 Example uses relays B and C.
Note 2 3A (Form A) relays at 250V AC
Copyright © 2019 Define Instruments
3 Wire Proximity
Transducer,
Paddle Wheel etc.
Output
Selected
digital
input
channel
22 23 24 25 26 27
