The Fresh-Aire UV® APCO® Rack System is designed for installation into commercial air handling units for
both surface disinfection and the reduction of odor-causing and potentially toxic volatile organic
compounds (VOCs) in the air. The system is equipped with adjustable extenders for
maximum installation flexibility. The weather-resistant power supply can
withstand the wet environment found inside HVAC enclosures
or the exposed conditions of outdoor packaged air
conditioning systems.
The number and placement of UV lamp/carbon
cell modules is determined by several factors
including coil dimensions and odor reduction priorities.
A Fresh-Aire UV® commercial UV specialist can help configure the best system for your application.
WARNING
PROTECT EYES FROM UV LIGHT
TURN OFF UNIT OR DISCONNECT
BEFORE SERVICING
*Installation of this product by anyone other than licensed HVAC or electrical contractors voids warranty.

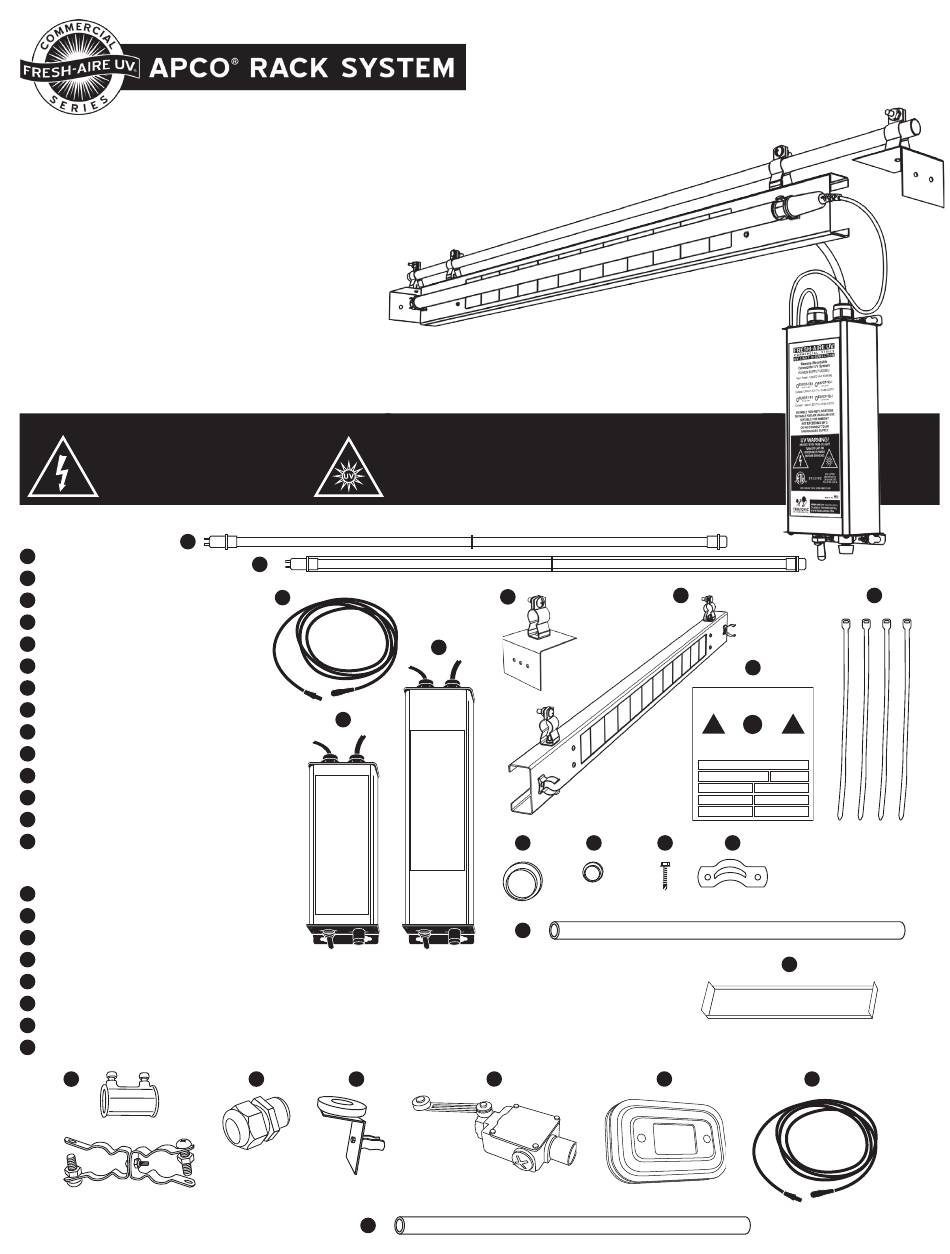

Parts Included
A
UV Lamp(s) 1 Year
A
UV Lamp(s) 2 Year
B
Lamp Cable
C
Power Supply(s) 10" *
D
Power Supply(s) 14" **
E
H - Bracket
F
UV Lamp Mount with APCO Cells
G
UV Warning Sticker
H
Black Nylon Zip Ties
I
Sight Glass 1"
J
Sight Glass 1/2"
K
Self-Tapping Screws
L
1/2" Pipe Strap
M
1/2" EMT Tubing (not included)
N
Optional Parts
12" Stand-off TUVC-CMBRKT
O
Vertical Support Kit TUVC-VS
P
Cable Strain Relief TUVC-SR1/2 , 3/4, 1
Q
Mounting Magnet TUVC-LBRKT-MG
R
Door Interlock Switch TUVC-INTLCK
S
View Port TUVC-VP-D
T
Cable Extensions TUV-CBL5, 10
U
Stainless Steel Tubing TUVC-SST3/4
V
P
Vertical Support Kit requires
1/2" EMT Tubing (not included)
• Qualified technicians should install this product*
• Install in accordance with relevant building codes
• Read instructions carefully including safety warnings
B
C
D
*
10" Power Supply
**
32" lamp single & dual
32" lamp triple & quad
32" lamp High Output single & dual
46" lamp single & dual
60" lamp single & dual
Q
R
V
Installation & Maintenance of the
Fresh-Aire UV® APCO® Rack System
for Commercial Air Handler Systems
IMPORTANT!
F
E
J
K
N
14" Power Supply
S
G
H
WARNING
L
M
O
T
U
I
Advertisement
Table of Contents
Summary of Contents for Fresh-Aire UV APCO Rack System
- Page 1 Fresh-Aire UV® APCO® Rack System for Commercial Air Handler Systems The Fresh-Aire UV® APCO® Rack System is designed for installation into commercial air handling units for both surface disinfection and the reduction of odor-causing and potentially toxic volatile organic compounds (VOCs) in the air. The system is equipped with adjustable extenders for maximum installation flexibility.
- Page 2 • The distance between end to end UV lamps should not exceed 12” • The distance of UV lamp ends to the edge of irradiated surface should not exceed 6” Coil Fresh-Aire UV offers a free system configuration consultation service for commercial projects. Contact Fresh-Aire UV for details. 12” Lamp to Coil 3.
- Page 3 Assembly & installation Optional 12” Stand-Off First, determine the ideal mounting location within the air system then configure the APCO® Rack System accordingly. The APCO® Rack System can be mounted to the air handler wall or similar support APCO Module several ways depending on the size, orientation, and distance 1/2”...
- Page 4 Install UV Lamps Snap UV Lamps into the Lamp Clamps. Be sure to clamp to the rubber lamp connector on one end and the ceramic lamp tip on the other end. DO NOT clamp onto the lamp glass. Use Black Nylon Zip-Ties to secure lamp cables to rack components and/or supports.
- Page 5 60” 2 Year Effective Lamp Life replaced on schedule for the system to function properly. Contact your local dealer for replacement lamps. Important! Use only Fresh-Aire UV® replacement lamps. Use of replacement lamps from other manufacturers voids the warranty. Trouble Shooting Problem...
- Page 6 Fresh-Aire UV® Commercial Series Fresh-Aire UV® lights save energy by reducing microbial growth inside HVAC systems, lower maintenance costs and reduce maintenance workers exposure to chemicals while improving indoor air quality. Our commercial systems are renowned for their quality materials, innovative features, ease of installation, and flexible mounting options. Most feature our advanced multi-voltage water-resistant power supply.
