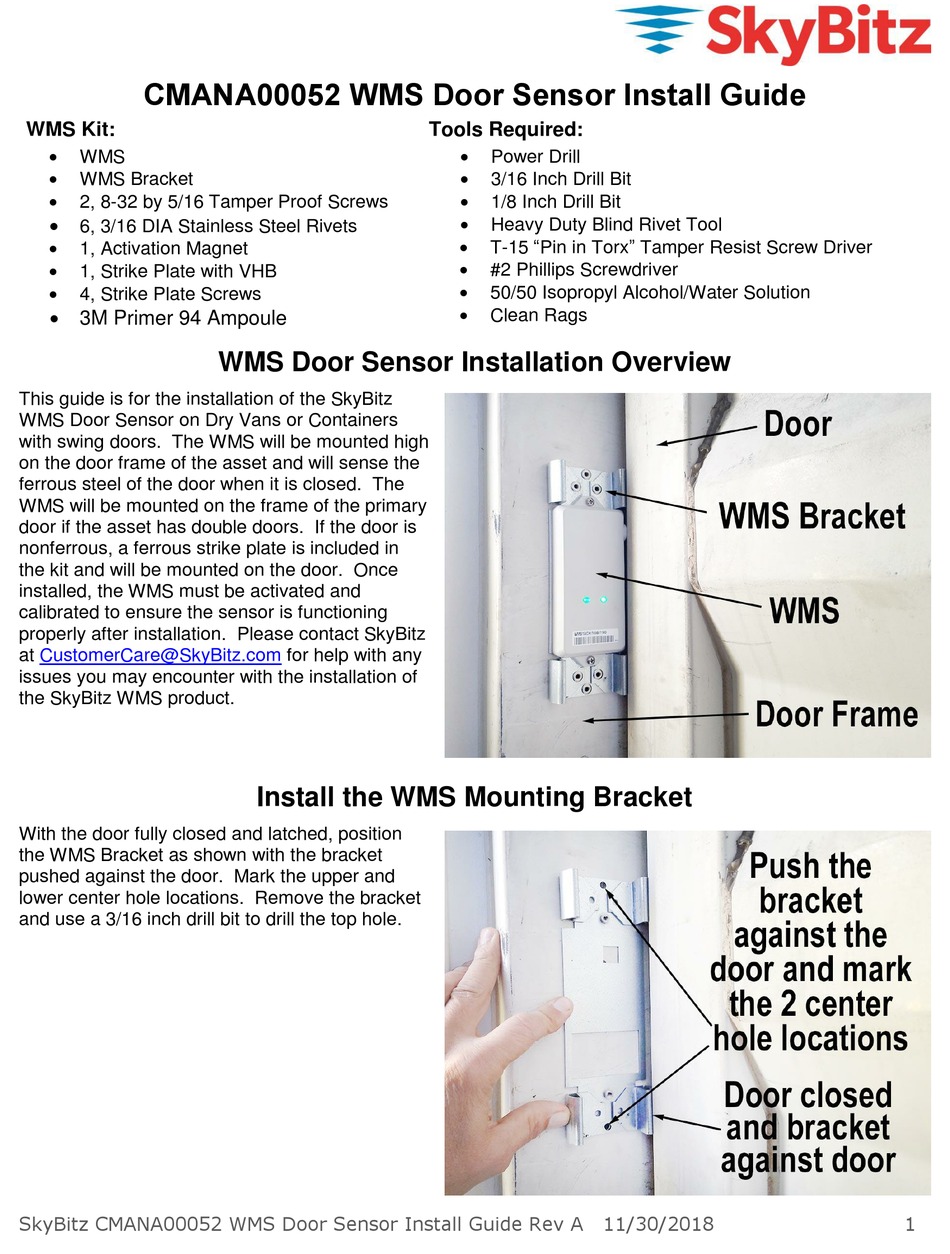

CMANA00052 WMS Door Sensor Install Guide

WMS Kit:


WMS

WMS Bracket

2, 8-32 by 5/16 Tamper Proof Screws

6, 3/16 DIA Stainless Steel Rivets

1, Activation Magnet

1, Strike Plate with VHB

4, Strike Plate Screws
 3M Primer 94 Ampoule
This guide is for the installation of the SkyBitz
WMS Door Sensor on Dry Vans or Containers
with swing doors. The WMS will be mounted high
on the door frame of the asset and will sense the
ferrous steel of the door when it is closed. The
WMS will be mounted on the frame of the primary
door if the asset has double doors. If the door is
nonferrous, a ferrous strike plate is included in
the kit and will be mounted on the door. Once
installed, the WMS must be activated and
calibrated to ensure the sensor is functioning
properly after installation. Please contact SkyBitz
at CustomerCare@SkyBitz.com
issues you may encounter with the installation of
the SkyBitz WMS product.
With the door fully closed and latched, position
the WMS Bracket as shown with the bracket
pushed against the door. Mark the upper and
lower center hole locations. Remove the bracket
and use a 3/16 inch drill bit to drill the top hole.
SkyBitz CMANA00052 WMS Door Sensor Install Guide Rev A 11/30/2018

WMS Door Sensor Installation Overview

for help with any

Install the WMS Mounting Bracket

Tools Required:


Power Drill

3/16 Inch Drill Bit

1/8 Inch Drill Bit

Heavy Duty Blind Rivet Tool

T-15 "Pin in Torx" Tamper Resist Screw Driver

#2 Phillips Screwdriver

50/50 Isopropyl Alcohol/Water Solution

Clean Rags
1
