Summary of Contents for Socket & See EPF 30

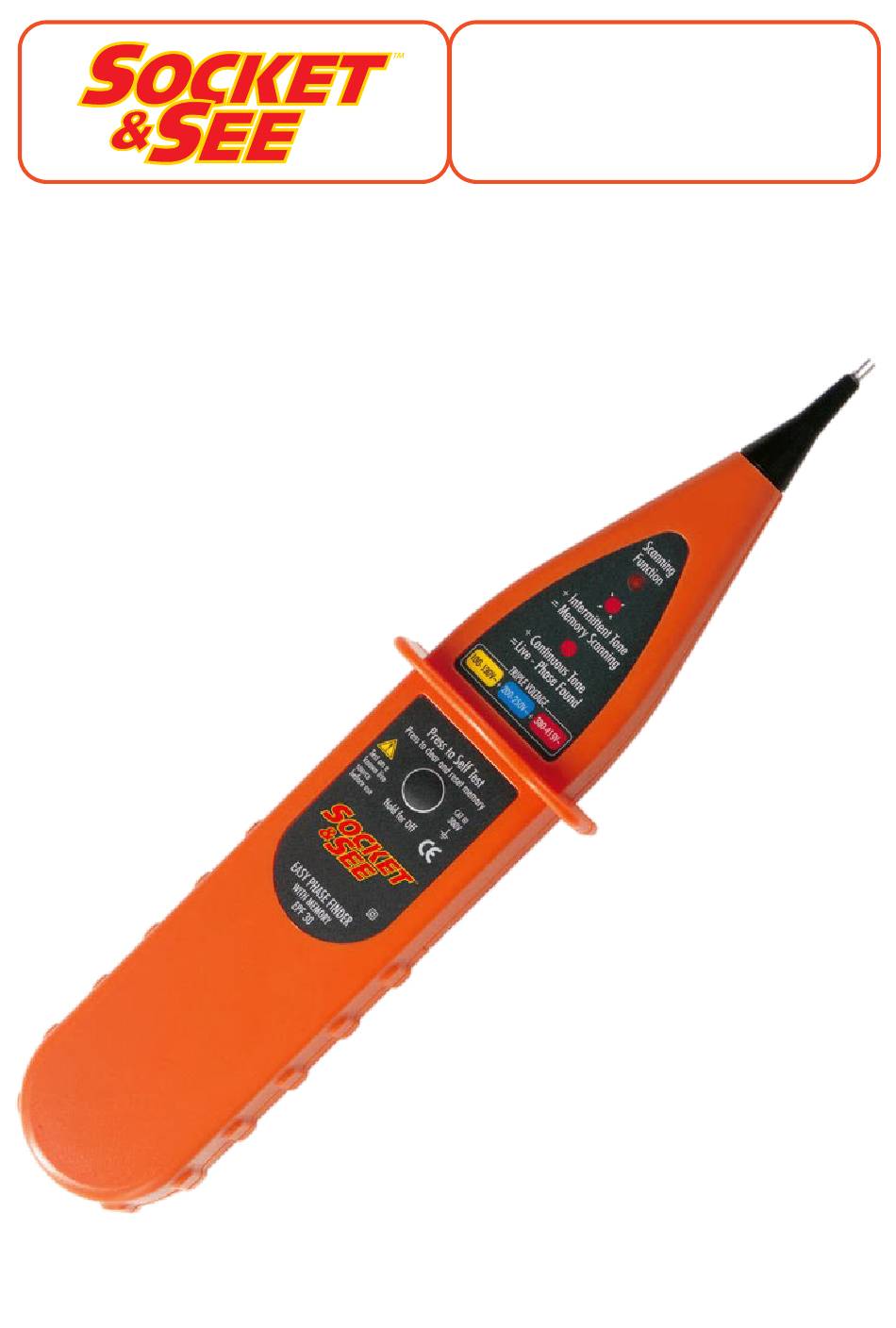

- Page 1 EPF 30 Professional Easy Phase Finder Instruction Manual & Specification SS0023V2...
- Page 2 SS0023V2 1. Safety 1.1 Equipment Markings Caution - refer to this instruction manual Construction is double insulated Product should be recycled as electronic waste Conforms to EU standards Measurement Category III is applicable to test and measuring circuits connected after the source of the building’s low-voltage MAINS installation.
- Page 3 2 pole tester (such as one from the socket & See VIP range) should be used to prove the indication obtained from the EPF 30. For further information on single pole voltage detection and ghost voltages please refer to the technical document on the Socket &...
- Page 4 SS0023V2 ● Meets international safety standard BS EN 61010-1:2010 ● Voltage measurement range 50 – 400VAC ● Safe live phase detection ● Illuminated red LED plus a continuous audible warning indicates greater than 50VAC is present ● Slow flashing red LED with single beep indicates EPF30 scanning function is working correctly ●...
- Page 5 SS0023V2 Red LED Flashes with an intermittent audible tone to indicate correct operation and scanning function. Continuously illuminated with a continuous tone to indicate a voltage of over 50VAC is present. Probe Tip Test Button GS38 Compliant Press and release to power on. The red LED will blink with an audible bleep to Safety Barrier indicate correct operation.
- Page 6 SS0023V2 Specification Measurement Range 110V, 230V or 400V mains supplies Operating Voltage Range 50 - 300 VAC to Earth 50-60 Hz Safety Compliance BE EN 61010-1:2010 IP Rating IP54 Operating Conditions 5 to 40°C at 85% Power 1 x 9V 6F22 battery Dimensions 225L x 50W x 35D (mm) Weight...
