Summary of Contents for Holo audio Azure

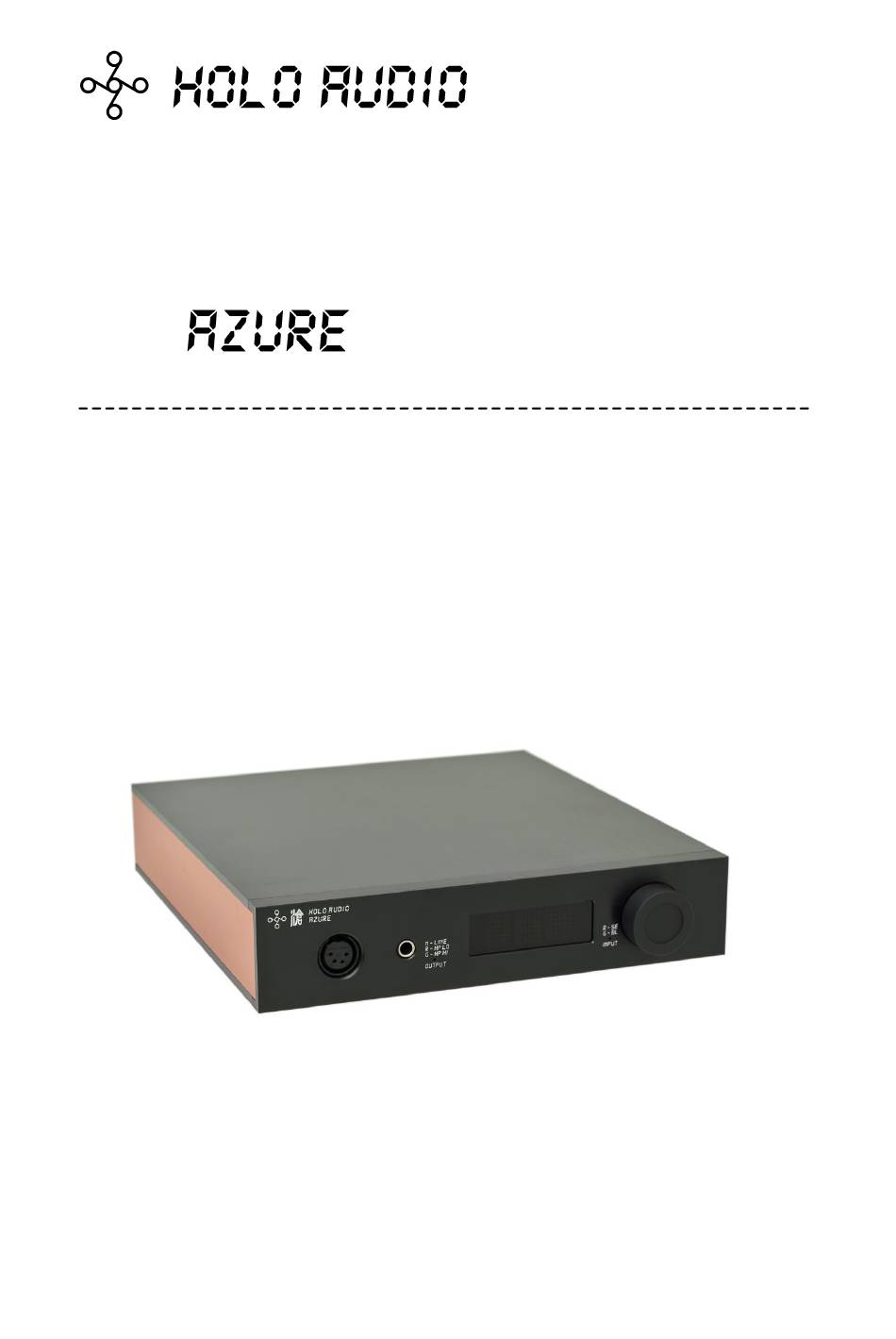

- Page 1 滄 Preamp / Headphone Amplifier User's Guide...
- Page 2 There is a total of eight amplifier modules built into the “沧” Azure and they are fully discrete. The design is able to solve the shortcomings of the transistors, so that its tone can exceed the limits of traditional transistors. It also has both the advantages of tubes and transistors.
- Page 3 Specification Analog Input ⚫ Single Ended Input x1 ◼ Largest Value 12Vpp ◼ Impedance 3.9Kohm ⚫ Balanced Input x1 ◼ Largest Value 24Vpp ◼ Impedance 7.8Kohm Analog Output ⚫ Single Ended Line Output x1 ◼ Largest Value 16Vpp ◼ Impedance 33ohm ⚫...
- Page 4 Front Panel Input Indicator Output Indicator 红色- Display Multi-Function Knob S.E. Headphone Input Balanced Headphone Input Output indicator, red light is the low-impedance headphone output, and green light is the high-impedance headphone output. Not lit for line output. Input indicator, red light for single-ended input and green light for balanced input.
- Page 5 Rear Panel AC Power Input Signal Output Signal Input...
- Page 6 Remote Control Mute Reserved (invalid) Display Brightness Setting Volume + Input Settings Volume - Output Settings...
- Page 7 Setting Set by remote control For details, please refer to the Instructions in the remote-control section. Set through the multi-function knob on front panel In the default mode, rotate left and right to set the volume, short press the knob to mute/unmute Press and hold the knob to enter the setting mode.
- Page 8 Output Settings LINE – Line Output HPL – Headphone low resistance output，Single-ended and balanced headphone ports on the front panel suitable for headphones below 100 ohms impedance. Low resistance output HPH – Headphone high resistance output，Single-ended and balanced headphone ports on the front panel for headphones with 100 ohm impedance or more.
