Product Descriptions; Front Panel; Rear Panel - ZGEMMA H9 TWIN User Manual

1

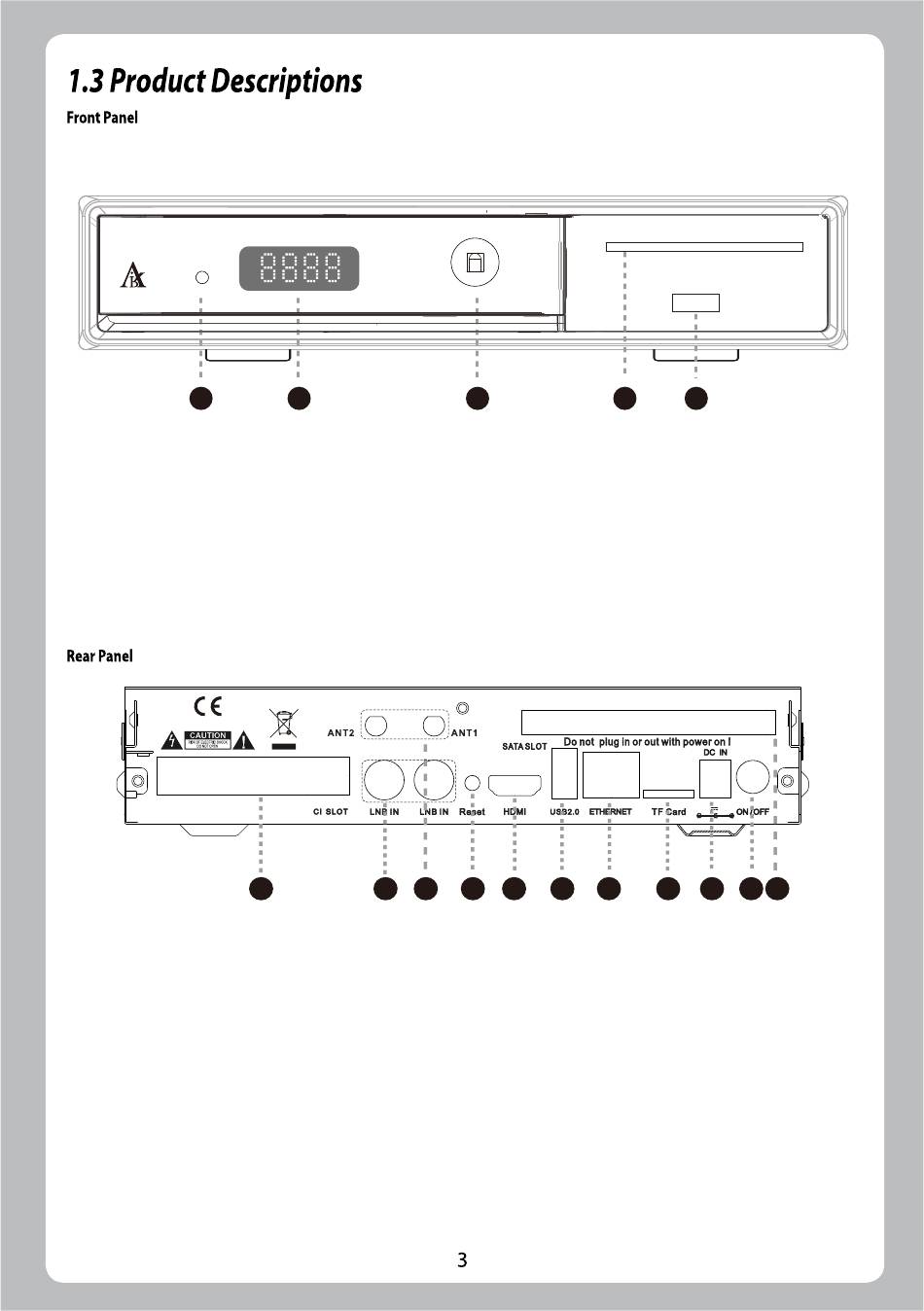

1.Indicator:Display the current status of STB. Green is on, Red is deep standby.
2.7-Segment Display.
3.IR Receiver: Receive the IR signal from remote controller.
4.Smartcard reader slot: One Smart card slot is provided.
5.USB.
1
1.CI slot
2.LNB IN: Connect to Satellite cable
3.ANT: Built-in wifi antenna
4.Reset: USB update key
5.HDMI: Connect to TV using a HDMI cable for both audio and video signals
6.USB: USB2.0
7.ETHERNET: One Ethernet cable
8.TF Card slot
9.DC Power Jack:Connect the provided AC/DC adapter(3A/12V)
10.Power Switch:Press to turn on/off the power
11.SATA SLOT(66.9*7 HDD OR SSD)
2
2 3 4
3 4
5 6 7
5
7
12V 3.0A
8 9 10 11
