Spot-on MMR-W300R Instruction Manual

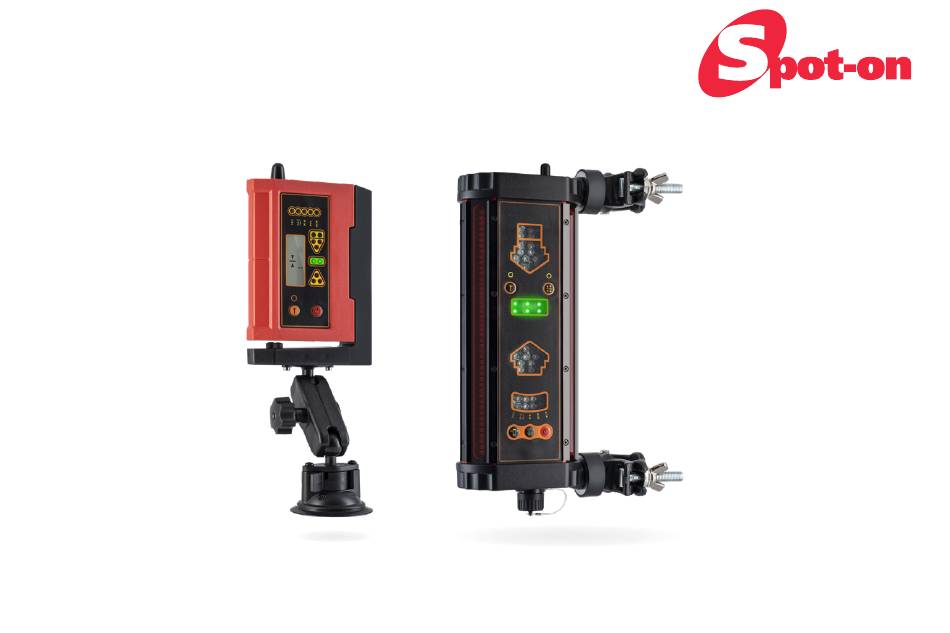

Machine mounted receiver with wireless in-cab display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
MMR-W30 0R
M A C H I N E M O U N T E D R E C E I V E R
W I T H W I R E L E S S I N - C A B D I S P L A Y
I N S T R U C T I O N
M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMR-W300R and is the answer not in the manual?

Questions and answers

Summary of Contents for Spot-on MMR-W300R

  • Page 1 MMR-W30 0R M A C H I N E M O U N T E D R E C E I V E R W I T H W I R E L E S S I N - C A B D I S P L A Y I N S T R U C T I O N M A N U A L...
  • Page 2 SAFETY Read the following safety instructions • Tool service must be performed only by qualified before attempting to operate this product. repair personnel. Repairs, service or maintenance performed by unqualified personnel will void the Keep these instructions in a safe place or warranty.

  • Page 3: Item Checklist

    ITE M CH E CK L I ST Please ensure the following items are included with your laser level. If anything is missing please contact your retailer. Charger Spot-on ICD-W300 Clamp 2x Magnets Spot-on 4x AA alkaline Carry case MMR-W300R...
  • Page 4 R ECE IVER OV ERVIE W: FRO NT Antenna for radio transmission to ICD-W300 Sensor panel Charging port Mounting pads Clamps...
  • Page 5 R EC E I VER O V E RV IE W: C O N TRO L PAN E L Plumb LED indicators (excavator mode) Elevation LED indicators Detection mode LED indicator Wireless radio transmission indicators Detection mode (fine, standard, coarse) Wireless radio transmission Centre LED indicators Elevation LED indicators...
  • Page 6 IN- C AB D IS PL AY O V E RVI EW: FRO N T Antenna for radio transmission to MMR-W300R Blade tilt indicators (bull dozer mode) Magnets Plumb LED indicators (excavator mode) Elevation LED indicators LCD screen Centre LED indicators...
  • Page 7 IN-C AB DIS PL AY OVERVI EW: DISPLAY SCRE EN Arrow indicator Power status Low power indicator Centre alignment Detection mode Speaker indicator Arrow indicator...

  • Page 8: Using The Receiver

    U SI NG T H E R E C E I V E R POWER SUPPLY Charging the rechargeable battery pack • Unscrew the cap on the charging port. • The instrument includes an in-built rechargeable Ni-MH battery pack. • Align the pins on the charger and screw into place. Plug into a power source.
  • Page 9 USING YOUR RECEIVER (continued) WARNING: Only use the supplied charger. Using an incorrect charger will void the warranty. WARNING: Do not attempt to access the battery pack. Due to the weather sealing protection, the in-built battery pack is Indoor charger non-user serviceable.
  • Page 10 USING YOUR RECEIVER (continued) SET UP Connection via clamps • By default, the receiver comes with clamps attached. • Use the clamps to attach the receiver directly to the machine mast (diameter 40-50mm). Receiver with clamps Connection via magnets • To attach the receiver to a metal surface on the machinery, replace the clamps with the included magnets.
  • Page 11 USING YOUR RECEIVER (continued) OPERATION Powering on and off • To turn the receiver on, press the power button. Coarse mode: RED All the LED lights will blink sequentially to indicate that the receiver is on. The plumb LED indicator lights will show the battery status (see page 8).
  • Page 12 USING YOUR RECEIVER (continued) Connecting the receiver and in-cab display • To connect the MMR-W300R receiver to the ICD-W300 in-cab display, press the wireless radio Channel 1: GREEN transmission button on the receiver. • The receiver will automatically be set to channel 1.
  • Page 13 USING YOUR RECEIVER (continued) • Ensure that the receiver and in-cab display are both on the same channel. The in-cab display will duplicate the reading on the receiver. • For detailed set-up of the in-cab display, see page 22. If there are multiple receivers in use on the job-site, ensure that each receiver and corresponding in-cab unit is set to the same radio transmission channel to prevent...
  • Page 14 USING YOUR RECEIVER (continued) Standard Detection The MMR-W300R is compatible with most red beam rotary lasers. • Ensure that the desired detection mode setting is selected (see page 11). • When the receiver sensor panel is in the path of the beam, the LED light indicators will flash (see illustration, page 15).
  • Page 15 Laser line is centred. Laser line is not centred. Laser line is not centred.
  • Page 16 USING YOUR RECEIVER (continued) Blade tilt (bulldozer) mode • The in-cab display will duplicate the reading on the receiver (to set-up the in-cab display, see page 8). When the receiver is mounted onto a blade of a bull dozer or grader it can display the level position of the blade.
  • Page 17 Tilted Right Tilted Far Left Fine: +0.6° - +0.9° Fine: >-1° Standard: +1.6° - +2.9° Standard: >-3° Coarse: +2.6° - +4.9° Coarse >-5° Tilted Far Right Tilted Left Fine: >+1° Fine: -0.6° - -0.9° Standard: >+3° Standard: -1.6° - -2.9° Coarse >+5°...
  • Page 18 USING YOUR RECEIVER (continued) Excavator mode (plumb) When the receiver is mounted onto an arm of an excavator or backhoe it can be used to display if the arm is tilted away from or towards the cab and plumb position. • To activate excavator mode display, press the excavator mode button.
  • Page 19 USING YOUR RECEIVER (continued) Plumb indicators • In excavator mode, the receiver displays a more Fine: ±0.5° precise height indication that shows how much to cut and / or fill. • As default, the detection mode is set to ‘fine’. To change the selected mode, press and hold the power button and the blade tilt mode button to cycle between each mode (‘coarse’, ‘standard’...
  • Page 20 USING YOUR RECEIVER (continued) Laser line is Laser line is 105-155mm 40-105mm Fine: below level below level 5-40mm below level Standard: 10-40mm below level Coarse: 20-40mm below level Plumb height indication (cut) Plumb height indication (cut) Plumb height indication (cut)
  • Page 21 USING YOUR RECEIVER (continued) Level Laser line is Fill Fill level as per Laser line is detection Fine: 105-155mm mode: 5-40mm above level above level Fine: ±5mm Standard: 10-40mm Standard: above level ±10mm Coarse: Coarse: 20-40mm ±20mm above level Plumb height indication (level) Plumb height indication (fill) Plumb height indication (fill)
  • Page 22 U SING T HE IN-CAB DISPLAY POWER SUPPLY SET UP • The in-cab display is powered by 4 AA alkaline Attaching via the magnets batteries. • Use the magnets to attach the in-cab display • The low power indicator on the LCD screen will directly onto various magnetic surfaces.
  • Page 23 USING THE IN-CAB DISPLAY (continued) Attaching via the suction mount Standard detection • Use the magnets to attach the suction mount to • The in-cab display will duplicate the reading on the in-cab display. The device can be suctioned the receiver. Refer to page 14 for more information on to a windscreen.
  • Page 24 Blade tilt (bulldozer) mode Excavator mode (plumb) • When the receiver is mounted onto a blade of a bull • When the receiver is mounted onto an arm of an dozer or grader it can display the level position of excavator or backhoe it can be used to display if the the blade.

  • Page 25: Troubleshooting

    TROU BLE S HO O T IN G Error Cause & Solution • Check the battery pack. The battery pack may require charging or need to be replaced due to age and/or a high number of charging cycles. To replace the battery Receiver does pack, please contact us for servicing.

  • Page 26: Care And Maintenance

    C AR E AND M A I NT E N AN CE • Whenever possible, store the instrument in a dry, shady location. • Remove the alkaline batteries before storing the in-cab display for extended periods. • Clean the instrument with a dry, soft cloth after use in dusty, damp or wet conditions before storing.

  • Page 27: Warranty

    WARRANT Y 3 YEAR STANDARD WARRANTY PERIOD 7 YEAR EXTENDED WARRANTY PERIOD 1. The warranty period for your tool is 3 years from 1. The extended warranty is available on selected the date of purchase. tools only. 2. The warranty period for batteries, battery packs 2.
  • Page 28 WARRANTY (continued) AUSTRALIA NEW ZEALAND “Our goods come with guarantees that cannot be For more information please visit excluded under the Australian Consumer Law. You consumerprotection.govt.nz are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

  • Page 29: Customer Support

    CUSTO MER S U PP O RT To assist you with any queries or technical questions please contact customer support Australia: 1300 658 338 New Zealand: 0800 367 527...

  • Page 30: Specifications

    SPE CI FI CAT I O NS Spot-on MMR-W300R Product code 50530 40 hours+ (when wireless Battery life communication is not active) Warranty 7 Years* 4x C Ni-MH battery pack Fine: ±5 Battery type (sealed) Accuracy Standard: ±10mm Coarse: ±20mm...
