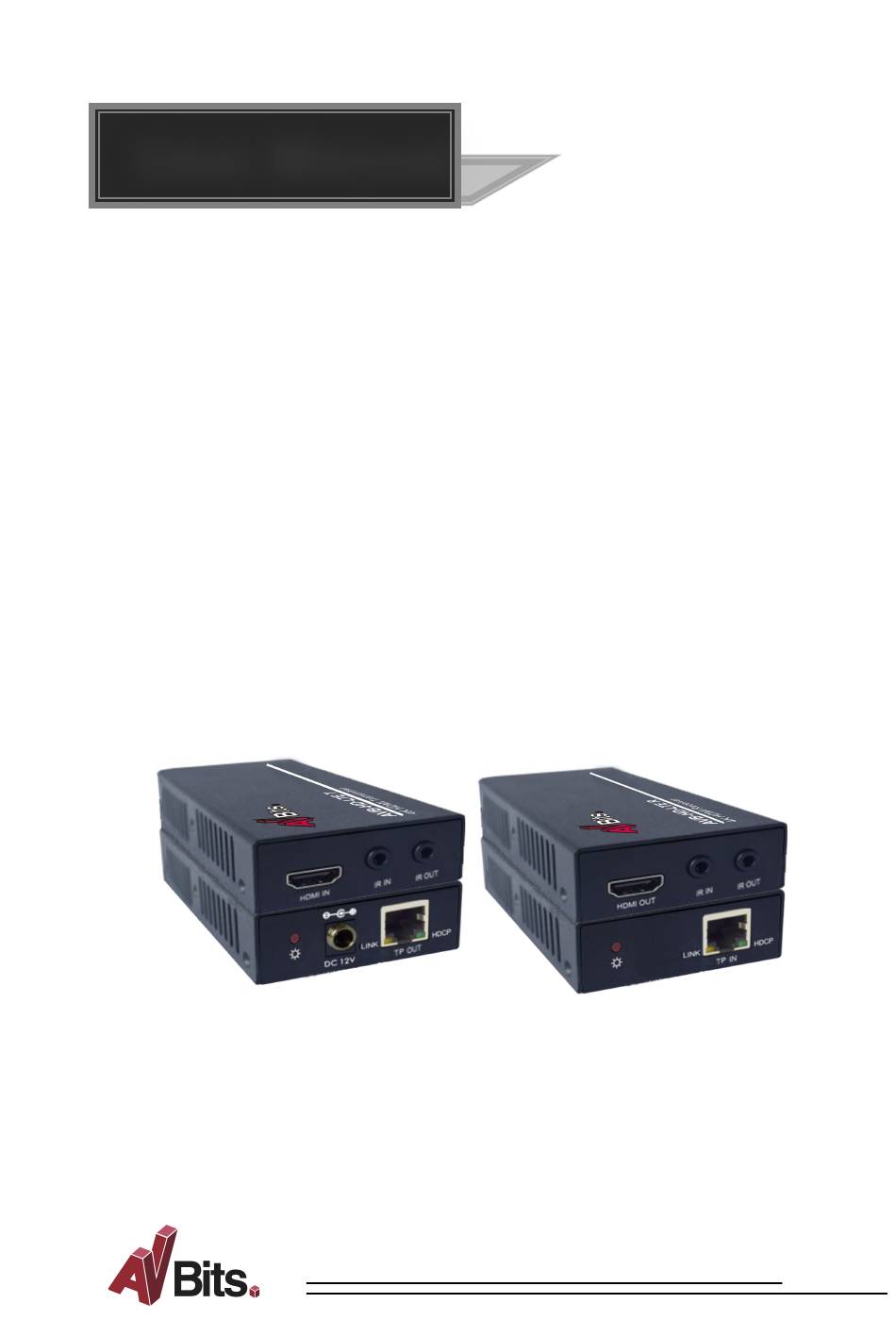

- Page 1 User Manual AVB-HD-LTE Powered by HDBaseT Extender Set 70m All Rights Reserved Version: AVB-HD-LTE_2015V1.0 www.isupplies.com.au...
- Page 2 Please refer to your dealer for the latest information and updates. All product information is valid until 7-9-2015. Trademarks Product AVBits and its logo are trademarks of Integration Supplies Pty. Ltd. Any other trademarks mentioned in this manual are acknowledged as the properties of the trademark owner.
- Page 3 HDBaseT Extender Set 70m AVBits www.isupplies.com.au...
- Page 4 Do not use liquid or aerosol cleaners to clean this unit, use a damp cloth to wipe it down, Always unplug the power to the device before cleaning. l Unplug the power from device if not used for a long period of time. l Place device in recycle waste bin when no longer required. AVBits www.isupplies.com.au...
-
Page 5: Table Of Contents
3.5 Twisted Pair Cable Connection ................. 5 4. Specification ........................ 6 4.1 Supported Resolution ..................7 5. Panel Drawing ......................8 6. Troubleshooting & Maintenance ................. 9 7. After-sales Service ....................10 AVBits www.isupplies.com.au... -
Page 6: Introduction
Ø 4 x screws Ø 8 x plastic cushions Ø 1 x power adapter (DC 12V 1A) Ø 1 x user manual Notes: Please confirm if the product and the accessories are all included, if not, please contact your dealer. AVBits www.isupplies.com.au... -
Page 7: Product Appearance
Power Indicator: illuminates when device is powered up 12Volt DC in socket for connection of 12Volt DC Power Supply. TP OUT: Connect to the TP IN socket on the AVB-HD-LTE R via Cat6, Cat6A or Cat6A Shielded UTP cable. AVBits www.isupplies.com.au... -
Page 8: Avb-Hd-Lte R
Note: AVB-HD-LTE boasts 2 indicators to show real-time operation information: Indicator Function Details Connected: HDCP Compliant: LED Hard Shows input signal Green connection Not HDCP Compliant: LED Blinking. Disconnected: LED Off Indicate linking status of Connected: LED Illuminated Yellow the transmitter and the Disconnected: LED Off receiver AVBits www.isupplies.com.au... -
Page 9: System Connection
IR IN on either the receiver or the transmitter. Step5. Connect with DC 12V power supply to the 12Volt DC IN socket on the AVB-HD-LTE Tx, the AVB-HD-LTE Rx will be powered simultaneously with the with PoC solution. AVBits www.isupplies.com.au... -
Page 10: Application
Note: To eliminate the risk of RFI into the signal UTP cable, the use of a Cat6A Shielded grade cable is highly recommended. Shield MUST BE continuous from Tx to RX and shielded metal plugs installed onto cables. AVBits www.isupplies.com.au... -
Page 11: Specification
Temperature 0~ 50 Reference Humidity 10% ~ 90% Power Supply DC 12V, 1A Power Consumption 9.6W Dimension (W*H*D) 61 x 24x 120 mm 61 x 24x 120 mm Weight 0.28Kg 0.28Kg NOTE: All nominal levels are at ±10%. AVBits www.isupplies.com.au... -
Page 12: Supported Resolution
800x600@72Hz, 800x600@75Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1280x720@60 Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1600x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz Note: AVB-HD-LTE supports 4k&1080p 3D HDMI signal please make sure high quality HDMI cables are used compliant with HDMI1.4 for reliable transmission when using this product. AVBits www.isupplies.com.au... -
Page 13: Panel Drawing
DC 12V TP OUT 24.00 mm 7.21 mm 12.50 mm HDMI IN IR IN IR OUT AVB-HD-LTE T 61.60 mm LINK HDCP TP IN 24.00 mm 7.21 mm 12.50 mm HDMI OUT IR IN IR OUT AVB-HD-LTE R AVBits www.isupplies.com.au... -
Page 14: Troubleshooting & Maintenance
Make sure ALL equipment is on the same phase. l Improper grounding may cause damage to the receiver. If your problem persists after following the above troubleshooting steps, seek further Technical assistance and help by contacting service@isupplies.com.au AVBits ww.isupplies.com.au... -
Page 15: After-Sales Service
3) Technical Support: For all product support contact: service@isupplies.com.au Please have the following information available: l Product Model. l Product Serial Number l Detailed failure information. l Information and details of Devices used and how they are connected etc. AVBits www.isupplies.com.au... - Page 16 HDBaseT Extender Set 70m AVBits www.isupplies.com.au...
