AVDesignHaus Dereneville DAE-01 CL User Manual

Drive unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

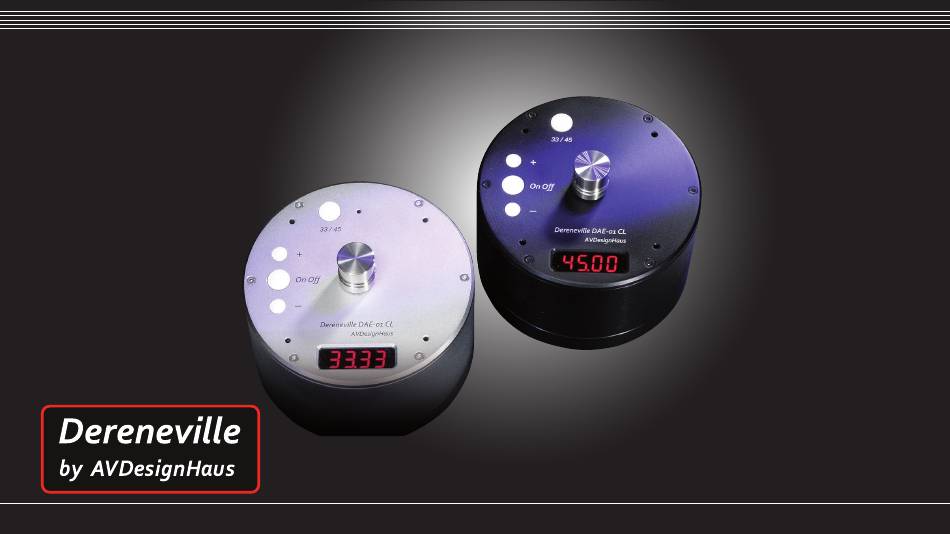

Dereneville High End - a decision for a lifetime.
DAE-01 CL
User manual
Drive unit DAE-01 CL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dereneville DAE-01 CL and is the answer not in the manual?

Questions and answers

Summary of Contents for AVDesignHaus Dereneville DAE-01 CL

  • Page 1 Dereneville High End - a decision for a lifetime. DAE-01 CL User manual Drive unit DAE-01 CL...
  • Page 2 Sophisticated interrupt system (ensures the „synchronization“ of the software) • Papst BLDC-Motor © 2020 Dereneville by AVDesignHaus Changes, errors and mistakes reserved. The removal of the copyright notice and the use of content, even in part, violates applicable law and is expressly prohibited.

  • Page 3: Table Of Contents

    Table of contents 1. Explanation of symbols, environmental protection Vary standard speed („Pitch“) 6. Disposal instructions Explanation of symbols Operating time alerts Important information 7. Warranty Environmental protection 5. Configuration menu Call up Configuration menu 8. General terms and conditions 2. Safety instructions Channel selection Changing channel value 9.

  • Page 4: Explanation Of Symbols, Environmental Protection

    1. Explanation of symbols, environmental protection 1.2 Important information Symbol Meaning 1.1 Explanation of symbols ► Instruction for action Warning notes Reference to a text passage in the document ➔ Enumeration/List entry Warning notes in the text are marked by a war- Enumeration/List entry ning triangle.

  • Page 5: Safety Instructions

    2. Safety Instructions WARNING! NEVER operate the unit with a mains voltage Read these operating instructions carefully and completely before other than the recommended 110-240V. attempting to install and operate the device! This could cause a fire or destroy the unit! Keep these operating instructions in a safe place.

  • Page 6: General Information

    3. General information 3.2.2 The motor is stopped 3.1 Operating statuses Display when the motor is stopped: The drive unit is always in one of the following operating statuses: The drive unit is based on a powerful BLDC motor (brushless DC motor), • ON: which is controlled by a powerful Fujitsu 16 bit microcontroller (auto- The drive unit is ready for use.

  • Page 7: Off

    3.3 „OFF“ The drive unit is switched off and is in standby mode. The motor is in free- wheel mode and can be moved easily. „OFF“ appears in the display and disappears after approx. 10 s. after 10 s 3.4 Motion Care function The Motion Care function maintains the drive belt and all bearings asso- ciated with the platter movement.

  • Page 8: Operation

    4. Operation 4.2 Switch on the drive unit („On“) 4.4 Activating Motion Care function ► By pressing the [On Off] key for approx. 3 s, the drive unit changes ► By pressing the [On Off] key for more than 6 s, the drive unit changes from standby mode „Off“...

  • Page 9: Vary Standard Speed („Pitch")

    4.7 Vary standard speed („Pitch“) 4.8 Operating time alerts Each of the standard speeds can be varied with a resolution of 0.01 rpm. In order to ensure optimum playback quality and to protect your valuable There are no restrictions regarding the setting value: The speed can be set vinyl discs, the drive belt and pickup should be replaced after a certain from the minimum to the maximum possible speed of the motor.

  • Page 10: Configuration Menu

    5. Configuration menu ► Press and hold the [33 45] and [On Off] key to restore the original 5.1 Call up Configuration menu channel value („Undo“). ► Press and hold the [On Off] key and then briefly press the [-] key to enter the Configuration menu.

  • Page 11: General Configuration Channels

    5.4 General configuration channels 5.5 Overview set channels NOTE Channels below 100 are intended for the general channels „Dimmer“, „Key If the speed 33.33 rpm cannot be set correctly within Channel Function Variable Range of Delay“, „Set“ and „Pickup“. values the value range, the existing pulley must be exchanged for a suitable one.

  • Page 12: Drive Dynamics

    5.5.2 Drive dynamics 5.5.3 Gain Channel Function Variable Range of The drive unit is equipped with a very powerful motor, which easily accele- „Gain“ describes the non-linear behaviour of 1st order during acceleration values rates or decelerates even a 60 kg-platter to its nominal speed. or deceleration.

  • Page 13: Max. Operating Time Until Alerts

    5.5.5 Max. operating time until alerts To perform a reset, please proceed as follows: The max. operating hours are set with the target values. If the actual ► Press and hold the keys [33 45] and [On Off]. values reach or exceed the target values, a alert message appears on the display (➔...
  • Page 14 2. The warranty is transferable. AVDesignHaus Rothertstraße 8 AVDesignHaus will do everything in its power to repair the device and res- 3. The warranty is not valid 59555 Lippstadt tore it to its original condition in a reasonable time.
  • Page 15 9. Dimensions DAE-01 CL H = 10 D = 14 Ideal belt width ≤ 6 mm ideale Riemenbreite < = 6 mm Rundriemen / String < = 2,5 mm Round belt Ø ≤ 2,5 mm 73,5 24 VDC only for Service User manual Drive unit DAE-01 CL...
  • Page 16 Dereneville High End - a decision for a lifetime.
