Automation-at-Home PLCBUS-T 5012UK Manual

Automation@Home
www.automation-at-home.com

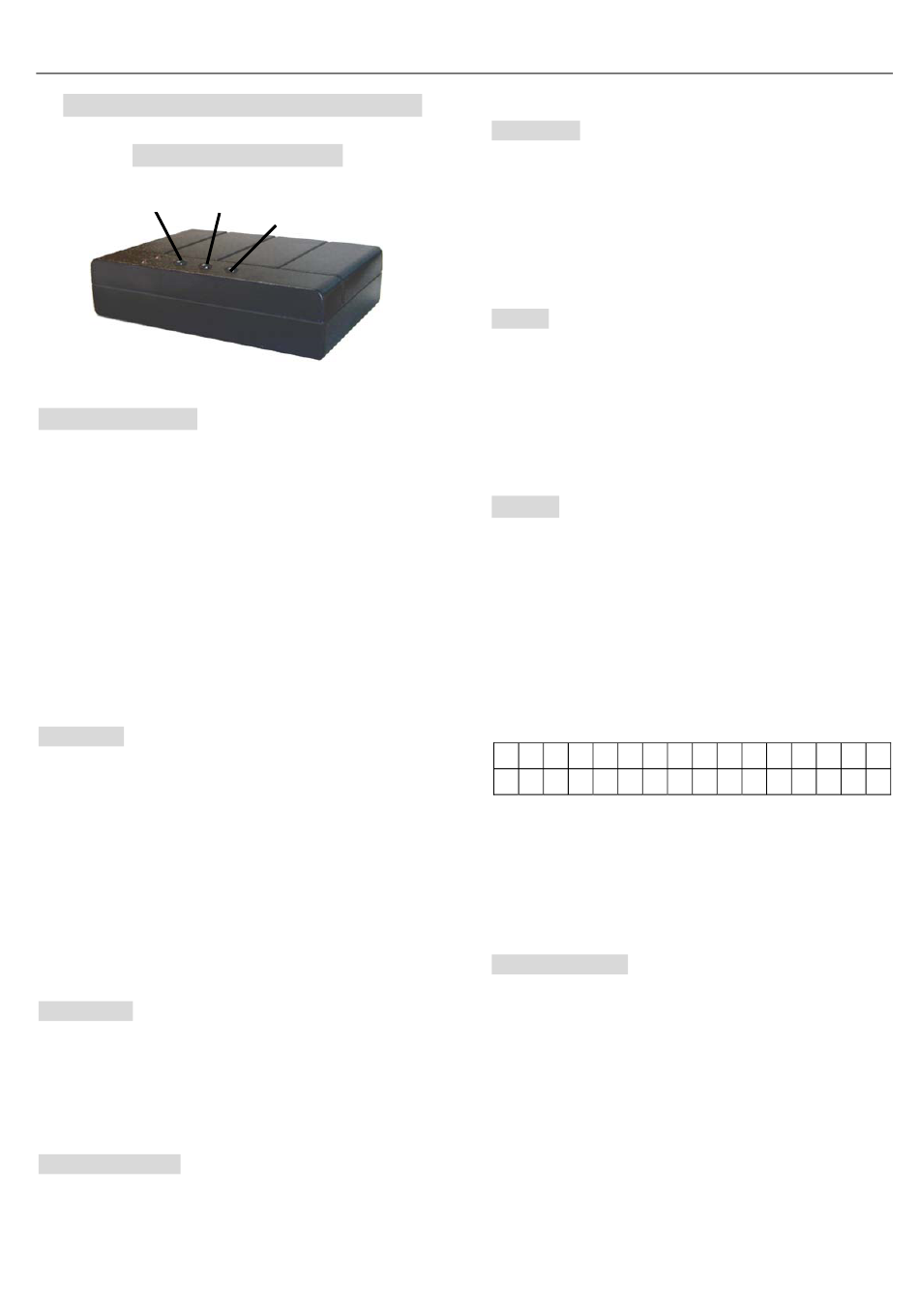

Telephone Controller (Simple Version)
No. PLCBUS-T 5012UK
S3
S2
Brief Introduction：
With Telephone controller, you can control 256 address
lamps or appliances in your home at anywhere in the world
only through a phone call. So when you are going home, you
can turn on central Air-condition to adjust the temperature in
your home.
Otherwise, it can also let any lamp in your home twinkling
when the telephone is ringing. (This function is very useful to a
person who has impediment with hearing).

Function:

Simple plug-in device;
Local and long-distance telephone control;
Easy and convenient Installation;
Controlling 256 PLCBUS address codes by a call;
Local setup an address by call;
Setting any lamp twinkling when the telephone is ringing.

Installation:

Plug the power supply of telephone controller in any
220V±10% receptacle, and then plug line (or extension line)
in the jack of exterior line.

Technique Spec:

Rating Voltage
Static State Power
Suitable Temperature
S1
220VAC±10%, 50Hz
≤1W
-10～50℃
Attention:
Be careful when using Telephone controller to control
appliances in your home. For example: With this product to
control a coffeepot cooking coffee, while no water in coffeepot,
it will be very easy to bring a fire; Also it is so dangerous to
turning on water heater nearby a fabric curtain.
Notice:
1、 Please don't connect telephone controller with a coin
telephone.
2、 During installing Telephone controller, any problem,
please contact to us, don't take apart by yourselves.
3、 After voice indicating, the keystrokes are availed.
Usage：
1.
Dialing Telephone controller, then entering the password
(Default password is 1-1-1) into response status;
2.
Entering house codes according to phone keyboard
(Range: A～P), then entering Unit code (Range: 01-16);
" "
and pressing * for Turn On, and
after the voice indicating "Please enter house code", you
tap" # " button directly, you can Off all the units in your
house (For "All Home Off" command).
A B C D E F G H
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
3.
Repeating above operation, you can control 256 lamps
or appliances.
4.
"S2" button for "ON" function, "S3" button for "OFF"
function. This function is aimed to ON/OFF beforehand
set address. For the detail setting method, please see
below.

Setting Method:

1.
Dialing call number into response status and entering into
password;
2.
When voice indicating "Please enter house code", please
press "S1" and hold for 5 seconds, entering setup status;
then you can here voice indicating "Please enter new
password (Enter 3 number password, except for 0-0-0);
3.
Then voice indicating "Please enter ring times", tap
number 2～8, you can setup how many ring times into our
telephone control system;
Manual
NO. PLCBUS-5012UK
" "
# for Turn Off. If
I J K L M N O P
