Anjue AJ-2402L Operating Instructions Manual

Infant radiant warmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

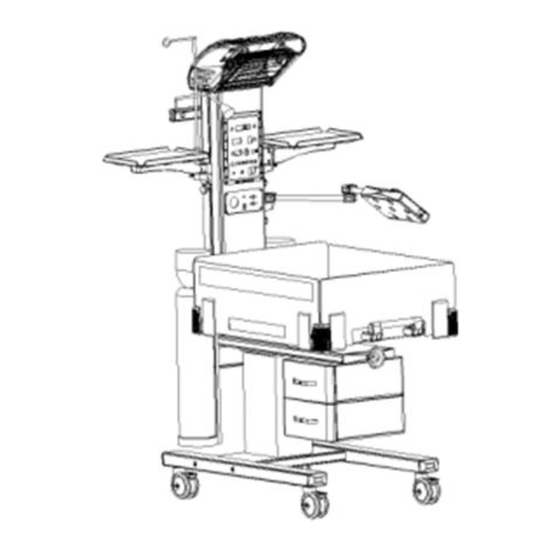

Infant Radiant
WARMER
AJ-2402L
Operating Instruction
Guide
Revision 1.2
Please read and keep this instruction carefully

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AJ-2402L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Anjue AJ-2402L

  • Page 1 Infant Radiant WARMER AJ-2402L Operating Instruction Guide Revision 1.2 Please read and keep this instruction carefully...

  • Page 2: Table Of Contents

    Infant radiant warmer Operating instruction Contents 1. Introduction ……………………………………………………………………….1 2. Definitions and symbols…………………………………………………………...1 3. Usage and feature………………………………………………………………….2 4. Installation………………………………………………………………………..2 5. Operating principle of the radiant warmer………………………………………...3 6. Main technical parameter………………………………………………………….5 7. Functions instruction……………………………………………………………..5 8. Examination of the functions…………………………………………………..….9 9. Usage of the equipment……………………………………………..…...………...10 10.

  • Page 3: Introduction

    Infant radiant warmer Operating instruction 1 Introduction Infant radiant warmer of model BN-100 adopts anti-explosion carbon steel infrared radiation tube for its radiation source. Infant radiant warmer of model BN-100 has three operation modes: pre-heat, auto and manual, the indicator shows under which mode the equipment is running, the testing temperature and setting temp is shown independently in the screen, The equipment will alarm with sound and light if failure and exceptional situation (such as power failure, sensor failure, over temp, temp deviation) comes out when using the infant radiant warmer.

  • Page 4: Usage And Feature

    Infant radiant warmer Operating instruction T yp e B F ap p lied p art D an g ero u s vo ltag e 3 Usage and feature 3.1. Usage: It is suitable for newborn babies rescuing, nursing and pediatrics operation. 3.2.

  • Page 5: Operating Principle Of The Radiant Warmer

    Infant radiant warmer Operating instruction 4.10 Put the X-ray cassette tray and mattress in the middle of the baby bed, rotate and insert Lucite baffles to correct position around the baby bed. 4.11 Insert the skin sensor to the operation panel. 4.12 Connect the power cord.

  • Page 6: Main Technical Parameter

    Infant radiant warmer Operating instruction The w orki ng St art st at e i ni t i al i zi ng Shake brilliantly I ni t i al i ze Sam pl e dat a Eepro m O sci l l ator Troubl e ？...

  • Page 7: Functions Instruction

    Infant radiant warmer Operating instruction c. Atmospheric pressure: 700~1060hPa; d. Air velocity: ＜0.3m/s 6.4. Temperature control range: 32℃~38℃ 6.5. Precision of temperature control: ≤0.5℃ 6.6. Functional alarm: 6.6.1. Over-temp: 39℃ The secondary over temp to shut off power: 40℃（cut off the heating power, alarm with sound and light） 6.6.2.
  • Page 8 Infant radiant warmer Operating instruction manual mode). 7.11.6. “Alarm audio paused” button: when the equipment alarms with sound and light because of temp deviation and sensor failure, press this button to remove the sound alarm. 7.11.7. Failure alarm “reset” button: press this button to reset the failure alarm and the controlling mode goes back to “preheat”...
  • Page 9 Infant radiant warmer Operating instruction deviation alarm skin temp, after temp stable, if the test temp deviate more than ± 1 ℃ compare with set temp value. Equipment will alarm with audio and visual, reminding user take action. deviate +1℃,equipment will cut off heat power automate. Skin temp sensor appear open circuit or short circuit, Sensor alarm equipment have audible and visual alarm, and cut off...

  • Page 10: Examination Of The Functions

    Infant radiant warmer Operating instruction 7.12.2 The time of check the alarm system normal or not When reinstallation equipment after disassembly parts for cleanout or maintain every time, user should inspected alarm system, to see if normal or not, inspection way please reference part 8. 7.12.3 The priority of alarm state.

  • Page 11: Usage Of The Equipment

    Infant radiant warmer Operating instruction 8.4.Examination of deviation alarm. Set the temp to 37℃, after the warmer reaches to constant temp, make the skin temp sensor close to the heater gradually and if the indicating temp reaches 38℃, deviation alarm will appear; make the skin temp sensor head far away from the radiation area gradually and if the indicating temp reaches 36℃, deviation alarm will appear.

  • Page 12: Notice

    Infant radiant warmer Operating instruction Folded down the side Lucite baffle and then the X-ray cassette tray can be taken out. 9.2.4 Lucite baffle Lucite baffles shall prevent the infant from falling off the bed. When the machine is working, be sure all the rotating shaft and block of baffle support are in good condition.

  • Page 13: Cleanout And Maintenance

    Infant radiant warmer Operating instruction 11.2 AC power must adopt single-phase of three wires, and the grounding must be reliable. The warmer should be placed in clean site and place with small changes in temp and humidity. 11.3 Avoid direct sunshine and keep the bed far away from radiation to prevent the temp of the warmer from rising to dangerous degree.
  • Page 14 Infant radiant warmer Operating instruction organic solvent, such as alcohol; do not put it under direct radiation of ultraviolet. 12.1.2.3 Cleanout of mattress and cover: brush with cleanser, rinse with clean water and then air to dry. 12.1.2.4 Cleanout the disassembled and cleaned main body: cleanout all of the surfaces and corners of the equipment out and out with disinfectant cleanser, and then dry them with clean cloth.

  • Page 15: Solution Of Common Failure

    Infant radiant warmer Operating instruction 13 Solution of common failure Phenomenon Cause analysis Solution Insert the skin temp The skin temp sensor has not been sensor. inserted. Check the plug and the Sensor alarm The plug of the skin temp sensor connection.
  • Page 16 Infant radiant warmer Operating instruction 14. APPENDIXⅠ Neonate Phototherapy Unit BL-60D 1. Summary Jaundice is a common phenomenon in neonatal period; it is observed that over 90% newborn babies have jaundice in different degree. It can be a physiological phenomenon ( called physiological jaundice) in neonatal period, it also can be an important symptom of many diseases in neonatal period （...
  • Page 17 Infant radiant warmer Operating instruction 4. Features 4.1 With its small bulk and light weight, the product has a high efficiency of radiation. 4.2.With electron adaptor, power have high adaptive capacity 4.3 LCD display the total time of therapy. 4.4 With low,middle,high three level to adjust phototherapy radiant. 4.5 Auto save 20000 hours accumulated use time.
  • Page 18 Infant radiant warmer Operating instruction 6. Installation Instruction: This type phototherapy unit is specially designed to be installed on the infant radiant warmer. So before installing this phototherapy unit, please install the infant radiant warmer first, then install this phototherapy unit.
  • Page 19 Infant radiant warmer Operating instruction 7. Introduction for functions panel Front panel 1.protect label 2.Irradiance key .Adjust the irradiance level by press key. sign means high level sign means middle level sign means low level sign means pause 3. Clear key: Clear time of this phototherapy. 4.Increasing key.
  • Page 20 Infant radiant warmer Operating instruction Fig8-1 level High middle Distance between the (maximum 2800μW/cm 2000μW/cm 800μW/cm phototherapy equipment total irradiance and the effective surface bilirubin) area :36cm,effective Ebi avg (The average surface area:50cm*30cm total irradiance 2000μW/cm 1400μW/cm 620μW/cm bilirubin) level High middle Distance...
  • Page 21 Infant radiant warmer Operating instruction It is necessary to measure patient’s body temperature and give patient some water according to needed. 6.use the timer 1) when unit is in paused state,timer stop,and display as “hour: minute: second”.press Key,turn on lamp,timer continue working. 2) Phototherapy unit have the function to auto turn off the lamp at the scheduled time and accumulation timing.if not set this function,default treating time is 100 hours,then stop auto.
  • Page 22 Infant radiant warmer Operating instruction baby’s temperature. 9.5 Some PATIENTS’ water balance may be disturbed. So the doctors should supply liquid for the baby for fear of lacking of water. 9.6 When phototherapy, the PATIENT’S bilirubin values shall be measured regularly. 9.7 You should clean the transparent surface frequently to keep them clean and transparent.
  • Page 23 Infant radiant warmer Operating instruction 9.10 Phototherapy unit can not place in Ө30cm area.as Fig.9-3 Far infrared radiation focus this area,temperature high,phototherapy unit can’t place in there. Phototherapy unit Attention: phototherapy unit don’t cover infrared radiation during treatment,otherwise will effect uniformity of temperature.
  • Page 24 Infant radiant warmer Operating instruction cloth to reduce the affect from blue light irradiate. 9.17 If patient’s eyes have the chance to expose light treatment equipment, should put the blinder to protect. 9.18 The ambient condition change(like ambient temperature, different irradiate source) will affect the patient’s safety and treatment effect.
  • Page 25 Infant radiant warmer Operating instruction 11.2 Use clean cloth to clean the device, especially that there should not be dirt on the surface of the light box to keep it clean and bright. When not using the device, you should use ventilate cloth to cover the device and put it well. 11.3 The radiance of the LED lamp will reduce as time passes, you should change for new LED lamps when using 20000 hours accumulatively to guarantee the phototherapy effect.
  • Page 26 Infant radiant warmer Operating instruction 15. APPENDIXⅡ: LOW-PRESSURE SUCTION APPARATUS (JE-DY-1) Operating Manual GENERAL Low -pressure suction apparatus is devised to use for sucking amniotic fluid and oral cavity mucus from neonatal and infants born from cesarean section. II. STRUCTURAL FEATRUES AND OPERATIONAL PRINCIPLE •...
  • Page 27 Infant radiant warmer Operating instruction b. Connect to mains 1.Auxiliary power socket 2.Input power socket 3. RS-232 4.Power switch 5. Transformer fuse 6 Suction fuse 7. DC output socket Fig.A2 back panel Connect the power cord and the power supply. Switch on the suction switch, the indicator lights. Warning: The suction unit ON/OFF switch acts as a mains cutting-off device.The mains outlet must be grounding reliably.
  • Page 28 Infant radiant warmer Operating instruction • The storage bottle should be emptied out immediately when the liquid reaches near to 1/2 capacity of it, which can prevent the pump from damaging. Note: The aspirator should be operated by professional doctor according to the directions of medical science and the instruction in the operating manual strictly.
  • Page 29 Infant radiant warmer Operating instruction 16. APPENDIX III Guidance and declaration-electromagnetic emissions Guidance and declaration-electromagnetic emissions The model BN-100 infant radiant warmer is tended for use in the electromagnetic environment specified below. The customer or the user of the model BN-100 infant radiant warmer should assure that is used in such an environment.
  • Page 30 Infant radiant warmer Operating instruction in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
  • Page 31 Infant radiant warmer Operating instruction Field strength from fixed transmitters, such as base stations for radio telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, and electromagnetic site survey should be considered.

  • Page 32: Encasement List

    Infant radiant warmer Operating instruction 17 Encasement list Please check the parts and assembly in the list. Number Name Quantity Prepare Radiator and controller body Including 1 Low -pressure suction Base (with lifting motor) Including a baby bed Tray Infusion hook Infusion support Skin temp sensor Power cord...

  • Page 33: After-Sale Service

    Infant radiant warmer Operating instruction 18 After-sale service Dear user: Thanks for using the medical products made by our company, please keep this maintenance list properly. We guarantee to keep the machine in good repair or to maintain the machine by the right of this maintenance list for any flaw in quality or failure Maintenance list Product name: Infant radiant warmer...

  • Page 34: Follow-Up

    Infant radiant warmer Operating instruction 19 Follow-up Dear users: This instruction is suitable for installation、usage、cleanout and maintenance of the infant radiant warmer of model BN-100 produced. Users must follow this instruction to use this product. Any product failure caused by nonstandard operation or incorrect maintenance operated by unprofessional will not share the three-guarantee services we offered.
