Summary of Contents for 3D Shape Engineering Motorized Camera Slider v1

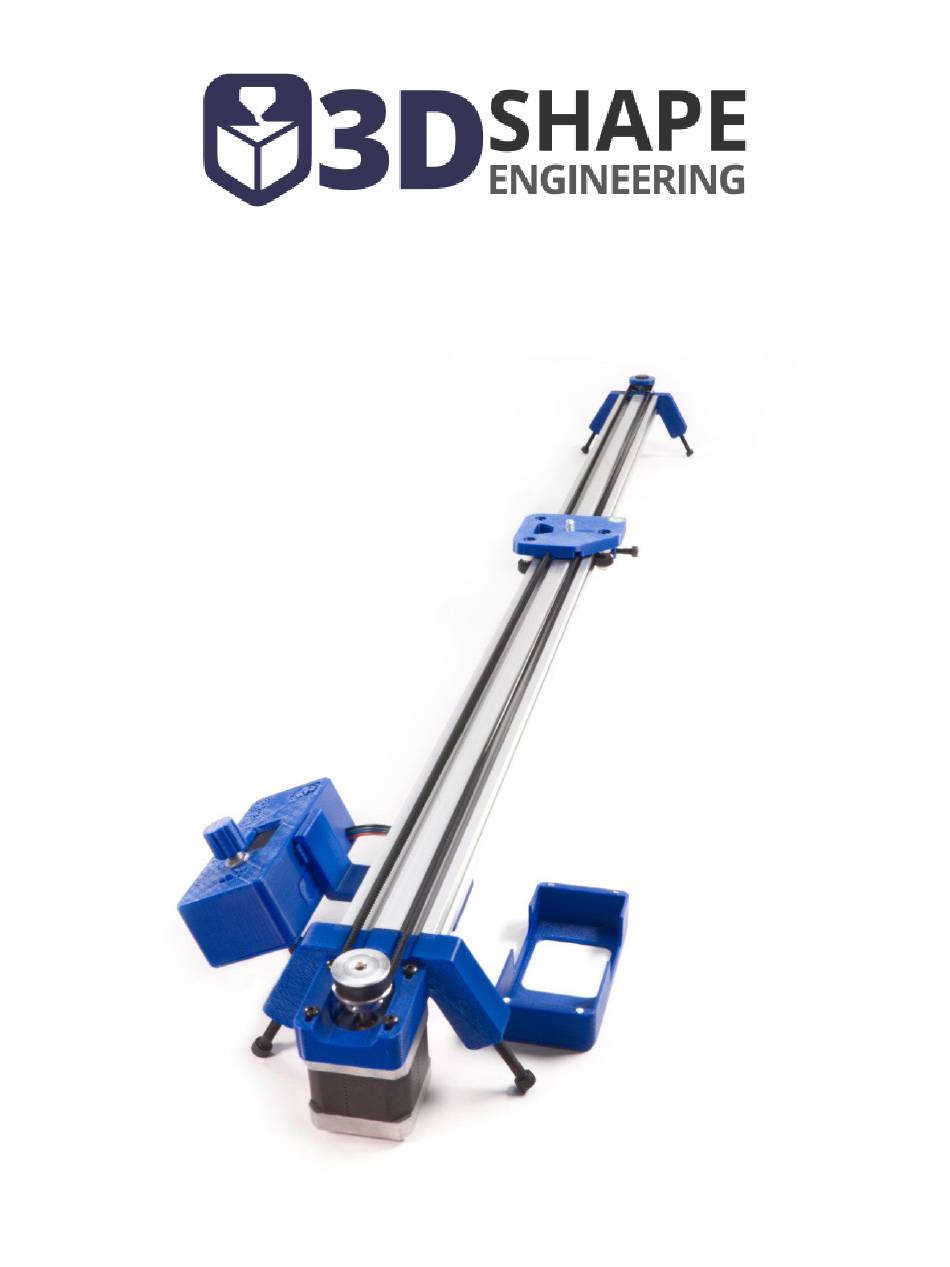

- Page 1 Motorized Camera Slider v1 Documentation & Instrusctions ©2018 3D Shape Engineering 3dshapeengineering.com ...
- Page 2 3D Shape Engineering Motorized Camera Slider Documentation & Instructions Thank You f or purchasing our camera slider! Please take some time to read over this documentation, and if you have any additional questions, please reach out to us via ...
- Page 3 3D Shape Engineering Motorized Camera Slider Documentation & Instructions The motor connects to a port on the inside of the electronics module. The connection is labeled STEPPER CONN and is on the opposite end of the opening for the motor wire. ...
- Page 4 3D Shape Engineering Motorized Camera Slider Documentation & Instructions *18650 Batteries and Battery Charger are not included. Practicing Battery Safety All v1.0b Slider Electronic Modules will shut off motor movement when the battery has been drained to the point where the display reads “LOW 0%”. Once your battery ...
- Page 5 3D Shape Engineering Motorized Camera Slider Documentation & Instructions Setting up the slider on the ground or on a tripod. The slider comes with 4 M5 bolt legs that are adjustable to level the slider when shooting on a surface without a tripod. The slider plate has a spirit bubble level ...
- Page 6 3D Shape Engineering Motorized Camera Slider Documentation & Instructions Specifications Input Voltage: 7 .4 - 8.4 volts Battery Life: Varies Per Battery Capacity Slider Travel Length: ~1000mm Maximum Rate of Speed: 62mm/s or 2.4”/s Minimum Rate of Speed: 0 .016mm/s or 0.0006”/s ...
- Page 7 3D Shape Engineering Motorized Camera Slider Documentation & Instructions ❖ A defective or incorrect battery / power adapter was inserted into the electronics module. ❖ The batteries were inserted the wrong way, causing damage to the electronics. ❖ Physical / Mechanical damage caused by improper use / abuse. ...
