Congratulations on the purchase of your ErgoMan height adjustable sit/stand workstation. With this workstation you can
adjust your work surface at the touch of a button.
This ErgoMan has many easy to use features, which will be covered in the guide below. This user guide covers switch
specification and use, operation of your height adjustable legs and general housekeeping tips.
Your ErgoMan workstation will come with one or all of the following features:
-
Push button electric height adjustment
-
Height range 680-1350mm (Leg adjustment stroke 670mm)
-
LED switch bench top height readout (in mm)
-
Three height memory positions
Lifting System Layout
Your ErgoMan workstation will be supplied with the following necessary items:
-
Control Box (this is a medium sized black box that all cables connect to, this controls the system)
-
Control Switch (depending on your workstation, one of four switches will be supplied)
-
Lifting Leg Column (as standard, an ErgoMan workstation has two leg columns, this drives the workstation up and
down. Depending on your requirements, two or more legs may be supplied)
-
Mains Power Cable (this powers the control box and the legs)
-
Leg Cables (these connect the legs to the control box)
Control Switch Supply

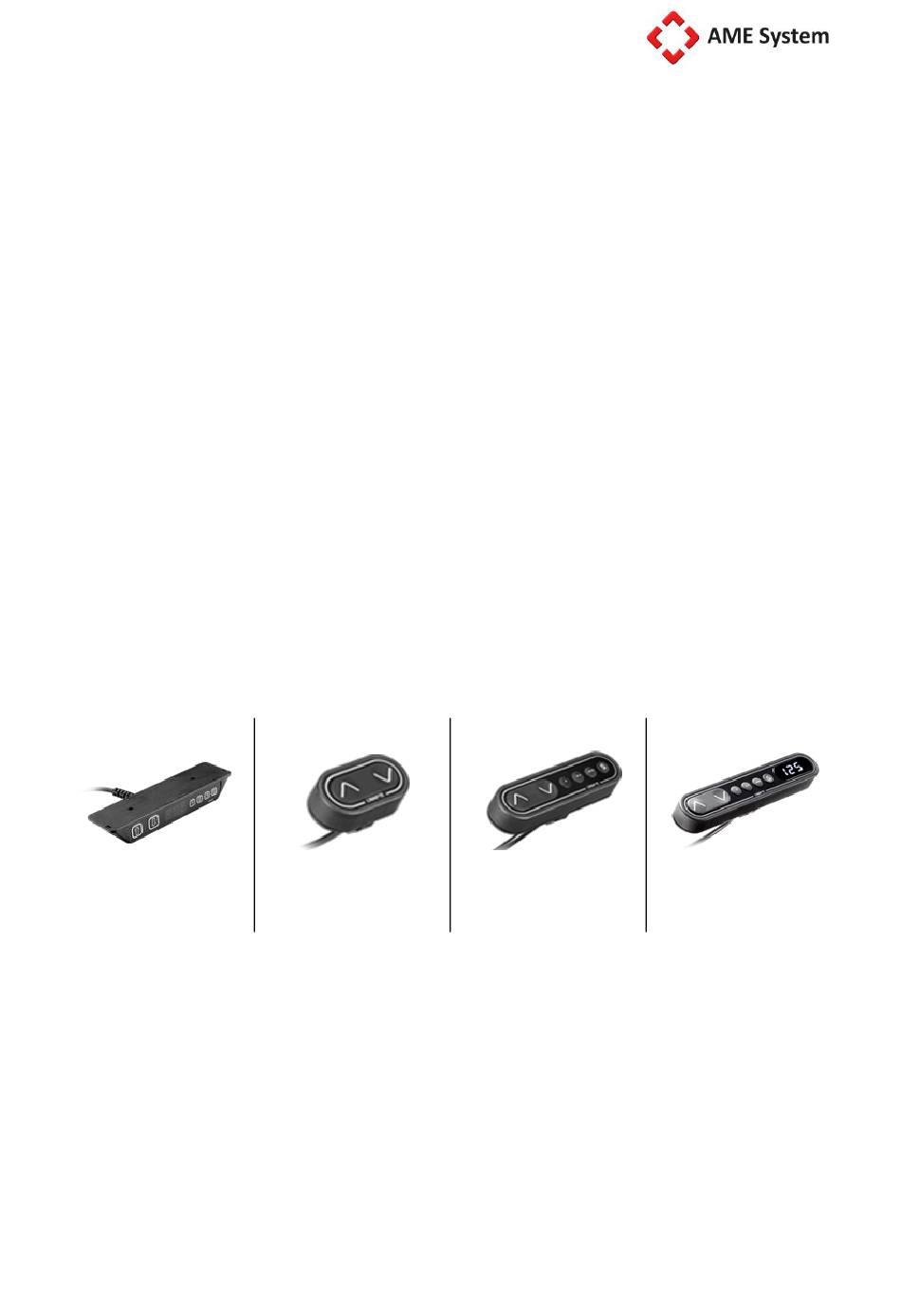

Depending on your workstation, your ErgoMan will be supplied with one of following four types of switches:
Switch Option 1
LED switch with 3 memory
options
Note*: For the purpose of demonstration, we will show how to operate switch options 1 & 4. Depending on your switch
supplied, the memory functions and LED readout screen may or may not apply. Each switch is programmed to operate the
same way and all tips and notes described here can be applied to any switch above.
Usage Instructions:
Your workstation has been supplied with one of the above switches, to power up the workstation and activate the switch
please follow the below procedure:
1.
Plug the mains power from the control box into a spare mains outlet
2.
Turn switch on the outlet to "on"
3.
The LED screen on the switch should be active (this step will not apply if no LED readout is supplied)
4.
The legs will need to be run through their initialisation procedure (see below)
ErgoMan Height Adjustable Workstation User Guide
V1.0.1 June 2013
ErgoMan Height Adjustable Workstation User Guide
Switch Option 2
Non-LED oval switch
Switch Option 3
Non-LED oval switch with 3
memory options
Switch Option 4
LED oval switch with 3
memory options
