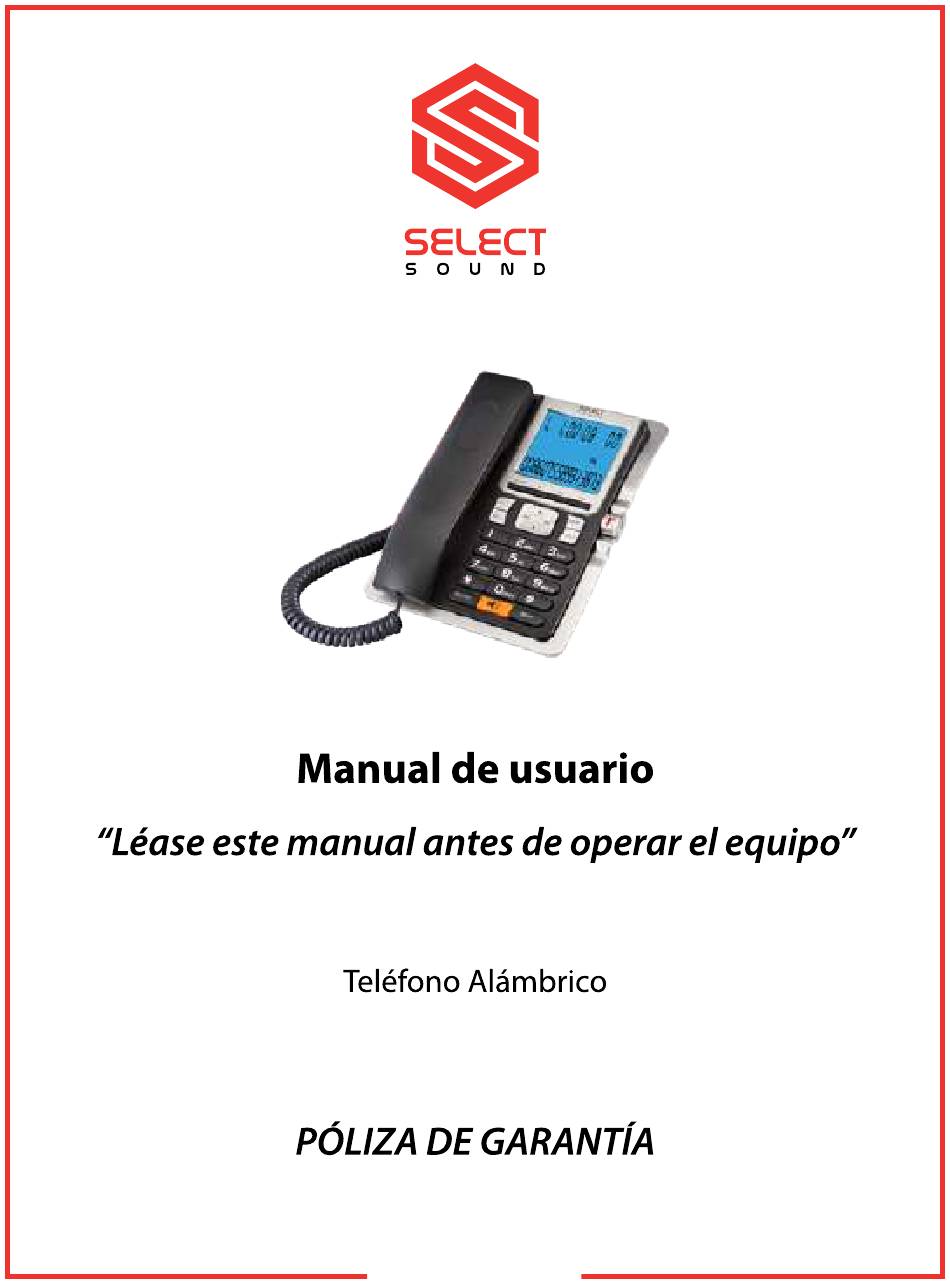

Page 1 8028 IMPORTADORA MIZCO S.A. DE C.V.
Page 3 Tlalnepantla de Baz, EDO. DE MEXICO, MEXICO. TEL.: 55-65-74-90 y 55-657519 R.F.C.: IMI161007SY7 PRODUCTO: SERIE No.: TELÉFONO MARCA: MODELO: SELECT SOUND 8028 NOMBRE DEL CLIENTE: DIRECCIÓN: FECHA DE COMPRA: ESTA GARANTÍA NO ES VALIDA EN LOS SIGUIENTES CASOS: • Cuando el producto se hubiese utilizado en condiciones distintas a las normales.
Page 5 CARACTERÍSTICAS Manos libres • Pantalla LCD con luz de fondo, alarma, hora y fecha • Candado con opción para bloquear llamadas salientes • de larga distancia y celular (044, 001, 01, 01-800) Memoria para 50 llamadas entrantes y 14 llamadas salientes • 16 tonos para llamadas entrantes • Función de no molestar • Volumen de tono ajustable • Función de tono o pulso • Remarcar, pausa y flash • Tono de llamada en espera • Memoria para 10 contactos • 3 contactos de marcado rápido •...
Page 18 8028...
Page 19 INTRODUCCIÓN Thank you for your purchasing our Caller ID Telephone. This manual is desig- ned to familiarize you with this phone. To get the maximum use from your new phone, we suggest that you read this Instruction Manual carefully before operating it. SAFETY INSTRUCTION When using your telephone equipment, the following basic safety precau- tions should always be followed to reduce the risk of fire, electric shock and injury to persons: 1. Read and understand all instructions 2. Follow all warnings and instructions. 3 Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use damp cloth for cleaning. 4. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product. 5. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 6. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 7. Avoid using this unit during an electrical storm, move or disconnect the unit, there may be a remote risk of electronic shock from lightning and thunder. 8. Unauthorized persons cannot open or service even if there is a defect with the unit. This will void the warranty, please send to authorized service center for repair.
Page 20 FEATURES • FSK/DTMF Compatible • Handset and Handsfree speaker • Real clock, date & week display • LCD blue backlight • 50 incoming and 14 outgoing call memories • 16 kinds of normal ring selectable • 3 groups of alarm function • Flash time adjustable • Do Not Disturb function • P/T dialing mode adjustable • Anti-thief function • Area code and PABX code setting • 5 levels of LCD brightness adjustable • One group Auto IP and one group of manual IP setting • Redial, pause and flash function • Pre-dial, edit and back dialing function • Hold on music • 3 groups of one-touch call memories • 10 groups of two-touch call memories • 3 grades of handsfree volume adjustable • 3 grades of handset volume adjustable • 4 grades of ringer volume adjustable • Incoming call ringer LED indicator...
Page 21 GETTING STARTED Plug coiled cord into handset modular jack and plug the other end into the jack on left side of the telephone. Plug line cord into jack at the rear of tele- phone base, the other end of the line cord is for connecting telephone line wall jack.
Page 22 FUNCTION AND OPERATION DESCRIPTION MENU SETTING In on-hook state, press SET/FL key to enter setting state, LCD displays , the number of 12345678 is setting opinion, press the desire number and press DEL key to edit the wrong digit. Press SET/FL key to confirm and press DEL key to go to superior menu. › Setting date & time 1. In on-hook state. 2. Press SET/FL key, LCD displays 3. Press 1 key, LCD display 1-DATE, 2-CL. Press 1 key, digit of “date” flashes, input date by pressing digit key directly then press SET/FL key to confirm. If digit is wrong, press DEL key to cancel. After finish setting, it returns to standby state automatically and system can identify the week automatically. Press 2 key, digit of “time” flash, input time by pressing digit key directly then press SET/FL key to confirm. If digit is wrong, press DEL key to cancel. After the above operation, press H.F to quit or it returns to standby state automatically › Setting ringing melodies and adjust ring volume 1. In on-hook state, press SET/FL key, LCD displays 2. Press 2 key, LCD display “1t 2vip 3vol ” Press 1 key to select normal ring, LCD display “ring type 01”, press UP or DOWN key to select desired ringing melodies. Total 16 kinds of normal ring selectable.
Page 23 › Setting alarm clock 1. In on-hook state, press SET/FL key, LCD displays 2. Press 3 key, LCD displays “AL 1-2-3” . Press 1 key to set the first alarm clock, LCD displays “ ALAR OFF” . input time by pressing digit key directly, then press SET/FL key to confirm. Press UP or DOWN key to set it ON state or OFF state. The same way setting from group 2 and group 3. Total 3 groups of alarm clock setting. 3. The First alarm clock means one time clock but the second and the third alarm clock as alarm every day, the unit will quit the alarm state by pressing any key. › Setting Do Not Disturb 1. In on-hook state, press SET/FL key, LCD displays , 2. Press 4 key, LCD display “off_r 00 00 “, then digit flash, input time by pressing digit key directly and then press SET/FL key to confirm. After setting, LCD will display the do not disturb time and count down till time up. Do Not Disturb time will be end when the time up or take handset or press H.F then quit. When incoming call, no ring during the do not disturb time. › Setting flash, dialing mode and anti-thief switch on/off 1. In on-hook state, press SET/FL key, LCD displays , 2. Press 5 key, LCD display “1-f 2-pt 3-d”, 3. Press 1 key, LCD display , then press UP or DOWN to select flash time al 90ms, 95ms, 100ms, 120ms, 180ms,300ms, 600ms or 1000ms, default is 600ms. 4.
Page 24 5. Press 3 key, LCD display “defend off”, then press UP or DOWN to select anti-thief switch on/off, “defend off” means switch off and “defend on” means switch on. › Setting area code and PABX code Setting area code 1. In on-hook state, press SET/FL key, LCD displays , press 6 key, LCD displays “1-LOC 2-OL” 2. Press 1 key , LCD display “loc - - - - - - - - “ press digit key directly and then press SET/FL key to confirm. Total 8 digit area code can be set. Press one new group digit to cancel the former setting area code. Setting PABX code Press 2 key, LCD display “out off” . press digit key directly and then press SET/FL key to confirm. Press UP or DOWN key can cancel PABX code setting. Total 8 digits PABX code can be set. Press one new group digit to cancel the former setting PABX code. › Setting bright contrast At on-hook state, press SET/FL key, LCD displays ,press 7 key, LCD display “LCD con 4”, press UP or DOWN key to adjust the bright contrast, default the 3 grade, total 5 grades selectable. › Setting IP function 1.At on-hook state, press SET/FL key, LCD displays ,press 8 key, LCD display LCD display “1-au 2-IP”, 1 is for auto IP and 2 is for manual IP . 2.Press 1 key, LCD display “au IP off”, press UP or DOWN key to select auto IP, 17909, 17908, 193, 17911, 17921, 17931, 17951, 17991, 068, 96300, 96333, 196, 190,17969, 197, off selectable.
Page 25 MAKING A CALL › From handset 1. Pick up the handset. 2. When you hear the dial tone, dial the desired number. 3. The unit will start to time the conversation after 6 seconds. 4. When finished, return the handset to the base. › From Speakerphone 1. Press H.F key 2. When you hear the dial tone, dial the desired number. 3. The unit will start to time the conversation after 6 seconds. 4. When finished, press H.F key again. RECEIVING A CALL › From handset 1. Pick up the handset and talk to the other party. 2. When finished, return the handset to the base. › Switching to speakerphone 1. When using the handset, press H.F key and return the handset to the base 2. When finished, press H.F key again. › From speakerphone When the telephone rings, press H.F key and talk to the caller. When finished press H.F key again. REVIEWING MISSED, RECEIVED AND OUTGOING CALL NUMBERS ›...
Page 26 › Reviewing received call number 1. In on-hook or off-hook state, press UP key to review received call number in repetition. 2. If there is no missed call, LCD displays › Reviewing outgoing call number 1. In on-hook or off-hook state, press OUT key to review outgoing call number, press UP or DOWN key to check. 2. If no outgoing call or after reviewed all outgoing calls, LCD displays. CALLING BACK MISSED, RECEIVED, AND OUTGOING NUMBERS › Calling back missed, received or outgoing call numbers in on-hook state. 1. In on-hook state, reviewing missed, received or outgoing call numbers to find a desired number. 2. Press BACK key, it is dialed out automatically or press BACK key twice, it is dialed out ahead with long distance code. 3. If set PABX code in advance, and the number is 7-digit or more, press BACK key, it is dialed out ahead with the PABX code, or press BACK key twice, it is dialed out with PABX code, pause time and long distance code.
Page 27 REDIAL AND PAUSE FUNCTION 1. Pick up handset or press H.F key, 2. Press RD/P key, the last dialed number is dialed again. 3. Once dialing a number, press RD/P key to give an interval pause FLASH FUNCTION When dialing number or during the conversation, press the SET/FL key to cut the dialing. Default flash time is 600MS. ADJUSTING HANDSFREE VOLUME In handsfree state, press VOL+/VOL-key to adjust handsfree volume, 3 levels adjustable. (Handsfree volume 1,2,3 grade), default is handsfree volume 3 grade. ADJUSTING HANDSET VOLUME In handset state, press VOL+/VOL-key to adjust handset volume, 3 levels ad- justable (Handset volume 1,2,3 grade), default is handset volume 1 grade. ADJUSTING RINGER VOLUME In on-hook state, press VOL+/VOL-key to adjust ringer volume, 3 levels adjustable (ringer volume 1, ringer volume 2, ringer volume 3, ringer volume OFF),default is ringer volume 3. HOLD ON MUSIC › Hold on music function When talking over handset, press HOLD key to enter the hold mode and the hold music is sent out. In hold mode 1. Press HOLD key to release hold mode and continue to talk over handset, or 2. Hang up handset, it enters handsfree hold mode. When talking at handsfree mode, press HOLD key to enter the hold mode and the hold music is sent out. In hold mode 1. Pick up handset to talk over handset, or...
Page 28 ONE-TOUCH CALL MEMORY › Store the number in one-touch memory At on-hook state, Input the desired telephone number using digit key, press and hold Mx(x=1-3) key for 3 seconds till LCD displays “SAVE”. Eg.1. Store 12345678 to M1 Input 12345678, then press and hold M1 key for 3 seconds, LCD display “SAVE” Eg.2. Store incoming call 87654321 to M2 1. Reviewing the incoming call number and find a desired number: 87654321 2. Press and hold M2 key 2 seconds, LCD displays “SAVE” › Make a call from one-touch memory At on-hook state or off-hook state: Press Mx(x=1-3) key, LCD displays relevant number and dial out automatically TWO-TOUCH MEMORY › Store the number in two-touch memory 1. Input the desired telephone number using digit key, press and hold MEMO key for 3 seconds, LCD displays “SAVE”, ” -” flash, 2. Press Nn(Nn=0-9 numerical) key 3. Back to off-hook state automatically after 2 seconds, means the number is stored successfully.
Page 29 › Make a call from two-touch memory Press MEMO key, LCD display “LOAD” “-” flash, and then press the NO (NO.=0~9), the number is dialed automatically. KEY LOCK FUNCTION 1. Lock number led by “0”: in on-hook state, press number button “0” and last around 50 seconds till LCD display “SAVE”. 2. Lock number led by “9”: in on-hook state, press number button “9” and last around 50 seconds till LCD display “SAVE”. 3. All number lock: in on-hook state, press number button “2” and last around 50 seconds till LCD display “SAVE”. Note: To cancel the above setting, follow the same way. TROUBLE SHOOTING › ? No voice Check if the handset is on the phone or line is broken. › ? Receive only Check if P/T mode is properly set. › ? Noise Check if the outlet circuit is broken. (Change the outlet circuit) Check if the connector is moist or rust (Change the connector) › ? Ring once then disconnect when receive a call. Dialing function is available Check if connector is in a moist environment.
