Part 1. Safety Caution
Before using this system, please carefully read the following precautions.
please not put the RX antenna near the wall or metal objects.
Please not open the enclosure for any operation without manufacture's approval.
Before turning power on the TX and RX, make sure the antennas are in good connection
During application, the distance between RX and TX need to be longer than 10meters.
Make sure no any metal objects to enter the system shell
Do not remove the antenna with power. Before disassemble the antenna please make sure the power is off.
Remark:
All the settings are configured before shipping. Do not change the parameters without permission.
Part 2. Package List in one package box
1*ST9602MD,
2*Manpack Antenna,
1*Battery(12V/21Ah),
1*Manpack Harness,
1*Power Cable,
1*RS232 Data Cable,
1*Battery Charger
1*Wifi Antenna
1*Hand Grip
ST9602MD User Manual
already.
Advertisement
Summary of Contents for Suntor ST9602MD

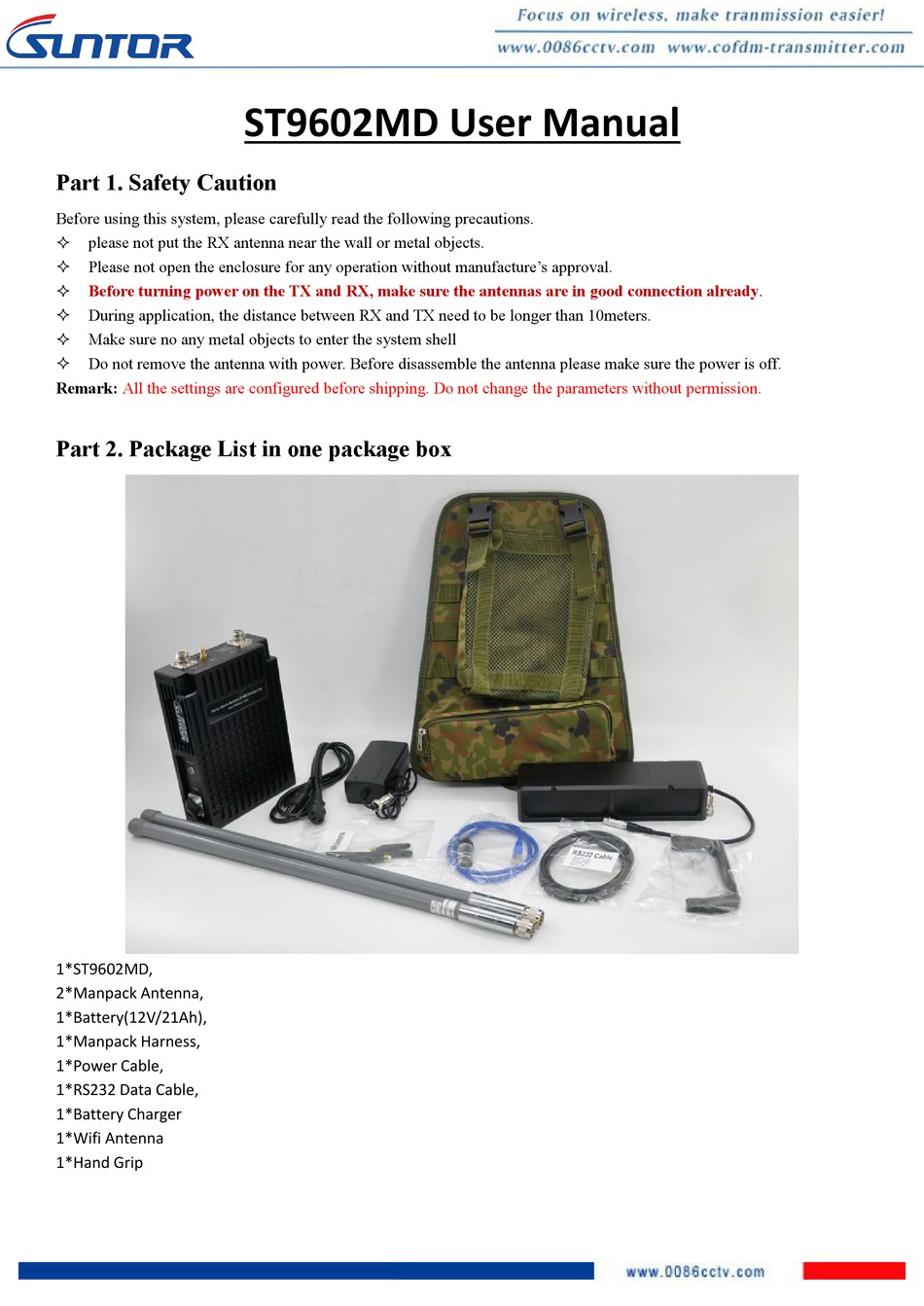

- Page 1 ST9602MD User Manual Part 1. Safety Caution Before using this system, please carefully read the following precautions. please not put the RX antenna near the wall or metal objects. Please not open the enclosure for any operation without manufacture’s approval.
-
Page 2: Part 3. Interface Introduction
Part 3. Interface Introduction Battery Part 4. Installation Steps 1. Put the device vertically. Then connect the antenna for each device and make sure the connection is firmly. 2. Connect the data source to the Ehternet port(RS232 port is for serial data input) 3. - Page 3 You need to set PC IP Address: 192.168.17.X(X=2~253 any number between 2~253, except 222) subnet mask: 255.255.255.0 2. Log In Open IE browser, input ST9602MD IP address: 192.168.1.222. User Name: admin. Password: no pass work, keep it blank. There are three lable on the home screen: Mode, Status and Settings...
- Page 4 3. Change IP Address Settings→Network→Network Management 4. Create a new network interface Mode→MESH→Next Step...
- Page 5 Choose wireless enable→Input Name→Choose Authorization→Set Password→Next Step...
- Page 6 Setting finish→Click Apply(After you click Apply, the System configuration need a long time to complete. Please wait patiently and not take other operation) 5. Wifi Covering Setting→Wireless(2.4Ghz)→Create(As shown above) As shown above: Choose the Enable→Mode Access Point(AP)→Input Name→Click Apply...
- Page 7 Please wait patiently and not take other operation) 6. Check the network status Using other equipment to research the network of ST9602MD and connect its network. After connecting successful, MESH→Status→Stations→Choose Auto Refresh. Then you can get the connection information.
- Page 8 7. Restore Factory Defaults Settings→System→Click Restore→Click ok Note: After the Restore Factory Defaults, the IP will be 192.168.17.1 8. MESH topological graph 8.1. According to the application environment to adjust the parameters and frequency Tx Power Setting Longer distance need bigger Tx Power, Short distance need smaller Tx Power...
- Page 9 Channel Bandwidth Settting In more barriers environment, settng banwidth smaller. In Open air, make the bandwidth bigger Frequency Setting According to application enviroment to advoid the same frequency with other arounding electronics equipment. Antenna Quantity Setting Choose antenna count 2...
- Page 10 Covering Distance Setting According to application environment to set the communication distance(Unit: meter) 8.2. MESH topological graph →Topology(Note: Choose auto refresh) Click Status...
