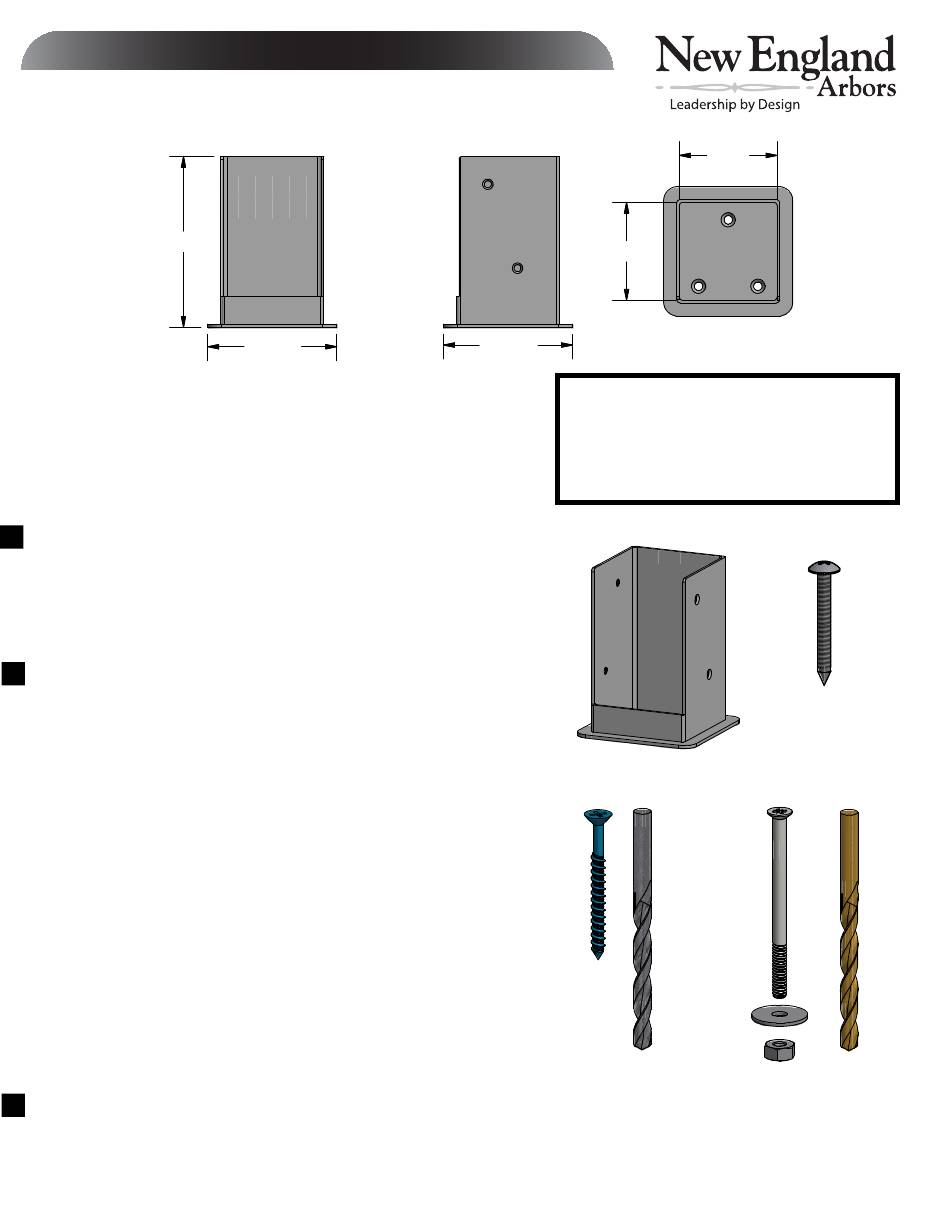

A S S E M B LY I N S T R U C T I O N S
Bolt Down Bracket System (4)
6 in
Designed to be used to mount any New England Arbor
product with 5x5 posts (pergolas and arbors).
If you are installing a Pergola, refer to page 8 of the
instruction manual for more detailed post location
information for your specific model.
Please read through before starting installation.
Check Box for These Contents
In the event of missing or defective parts please call our customer service
dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Steel Post Bracket (4)
2. 1 1/2" Self Tapping Screws (16) to fasten wood posts to Steel Post Brackets
Extra Materials Required
If mounting Pergola / Arbor onto an existing
concrete surface:
• 4x4x8' pressure treated wood posts if using for a pergola (4) OR
• 4x4x ? pressure treated wood posts if using for an arbor (4)
(length depends on arbor)
• 1/2" x 3 1/2" x 12" long wood shims to "build out" posts (32)
• 1/4" x 2 3/4" Cement Screws - Countersunk head (12)
• 3/16" Concrete drill bit. Minimum 3" long (1)
If mounting Pergola / Arbor onto a wooden or
composite deck with AN ACCESSIBLE UNDERSIDE:
• 4x4x8' pressure treated wood posts if using for a pergola (4) OR
• 4x4x ? pressure treated wood posts if using for an arbor (4)
(length depends on arbor)
• 1/2" x 3 1/2" x 12" long wood shims to "build out" posts (32)
• 1/4" x ?" Bolts and nuts - Countersunk Head (12)
(length depends on blocking material)
• 1/4" Washers (12)
• 1/4" Wood drill bit. Minimum 3" long (1)
Tools You Will Need
• Cordless Drill
• Concrete Hammer Drill (if drilling in concrete)
• Wrenches/Socket Set (if fastening with bolts)
V2.1/101415
4 5/8 in
3.5 in
4 5/8 in
If you are installing a pergola on a wood
deck or concrete surface, it is highly
recommended that you purchase this
1.
Extra Hardware Required:
1/4" x 2 3/4"
Cement Screws
and
3/16" Concrete
Drill Bit
3.5 in
Warning:
product.
2.
OR
1/4" x ?"
Bolt, Washer, and Nut
and 1/4" Wood Drill Bit
Bolt Length would be:
thickness of deck +
thickness of blocking
material + ±1/2"
Advertisement
Related Manuals for New England Arbors VA80205
Summary of Contents for New England Arbors VA80205
- Page 1 A S S E M B LY I N S T R U C T I O N S Bolt Down Bracket System (4) 3.5 in 6 in 3.5 in 4 5/8 in 4 5/8 in Designed to be used to mount any New England Arbor Warning: product with 5x5 posts (pergolas and arbors).
- Page 2 S T E P S Measure and mark out the location of the bolt down brackets using string or chalk line. Diagonal distances must be the same to ensure a square installation. Adjust string lines accordingly. The inside corner of the string lines will be the corner of the bottom flange of the bolt down * Orientate brackets bracket.
- Page 3 S T E P S Align the holes on the bottom plate of the bolt down bracket, the wood deck, and the blocking board and insert a bolt, washer, and nut as shown aside. Tighten each bolt with a screwdriver and a wrench. TOP VIEW BOTTOM VIEW With the four post brackets installed plumb, proceed to set the 4x4...
